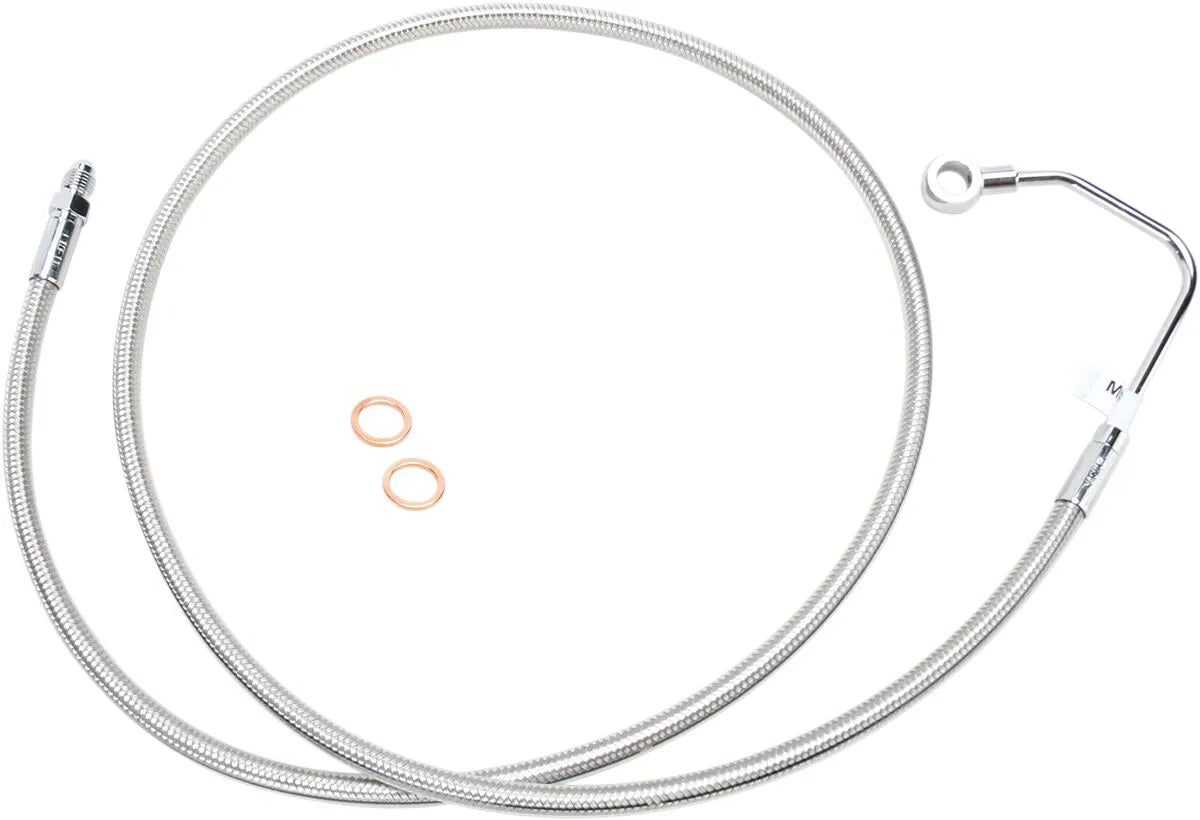

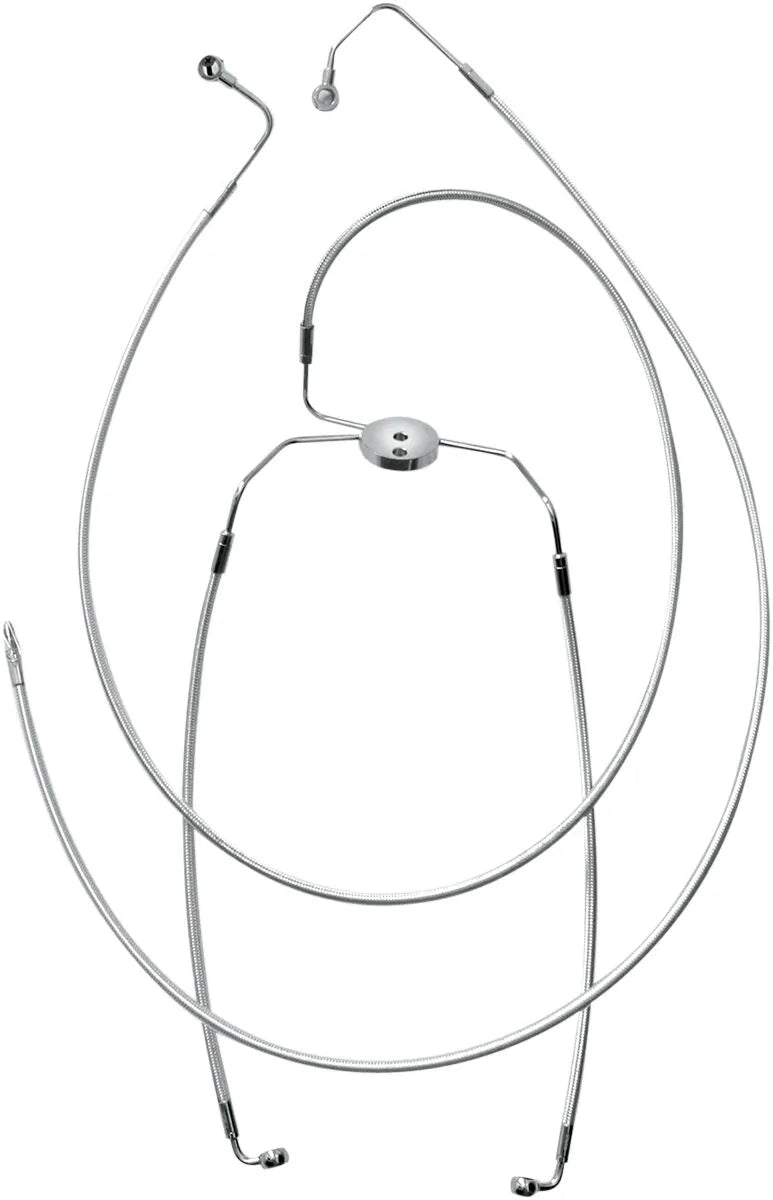

Magnum Shielding Designer Series Abs-specific Mid Brake Line Kit
Product info
- Item number
- 17413244
- Manufacturer number
- 57011
- Position
Upgrade your Harley-Davidson's braking performance with the Magnum Shielding Designer Series ABS-Specific Mid Brake Line Kit. This kit provides enhanced braking responsiveness and a custom look, ensuring both safety and style. Designed for compatibility with Harley-Davidson ABS systems, this kit offers a seamless upgrade for your motorcycle.
Description
The Magnum Shielding Designer Series Mid Brake Line Kit is specifically engineered to meet the demands of Harley-Davidson ABS systems. This brake kit includes a direct-fit lower assembly designed for use with alternative length upper lines, providing flexibility in your brake line setup. The AN-3 connections facilitate easy installation, allowing for a straightforward upgrade. The braid color and weave are designed to match all Magnum control cables and brake lines, ensuring a cohesive and professional appearance. A crystal-clear outer jacket protects against scuffing and discoloration, maintaining the pristine look of your bike. Featuring PTFE inner tubing reinforced with Aramid Fiber, these brake lines minimize expansion and maximize performance. Constructed with PTFE inner tubing, DuPont™ Kevlar® aramid fiber, premium signature Magnum braids, and a durable outer PVC jacket, this kit delivers unmatched reliability and style. Assembled in the U.S.A., this brake line kit reflects a commitment to quality and precision.
Features & highlights
- Enhanced construction ensures compatibility with Harley-Davidson® ABS requirements for both stock and custom brake line lengths.
- Direct-fit lower assembly allows for easy integration with alternative length upper lines.
- AN-3 connections simplify the installation process.
- Braid color and weave are matched to Magnum control cables and brake lines for a unified aesthetic.
- Crystal clear outer jacket provides superior protection against scuffs and prevents discoloration.
- PTFE inner tubing with Aramid Fiber reinforcement minimizes line expansion for optimal braking performance.
- Assembled in the U.S.A. guaranteeing high-quality craftsmanship and reliability.
Technical specifications
- Brand: Magnum Shielding
- Product Name: Brake Line
- Type: Mid
- For Braking System: with ABS
- Mounting Position: Middle
- Material: Stainless Steel
- Color/Finish: Silver, Polished
- Disc: Dual

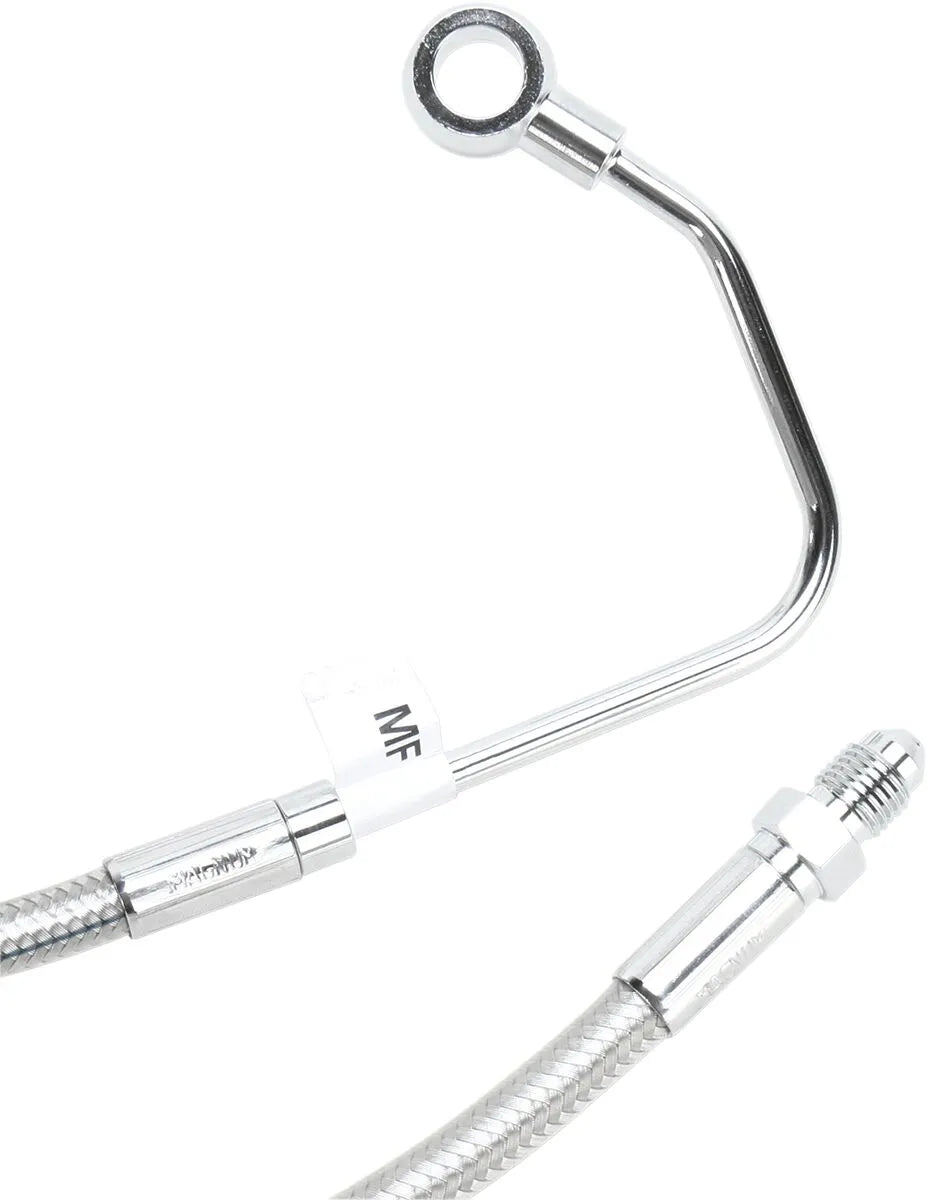

- Master Cylinder Banjo: 10 mm 35° Banjo Fitting
- Length: 11", 13", 15" (28 cm, 33 cm, 38 cm)
- Units: Kit
Important to know
This kit requires the use of alternative length upper brake lines (sold separately) to complete the installation.
- Brand
- MAGNUM SHIELDING
- Vendor part number
- 57011
- Color finish
- Silver, Polished
- Product name
- Brake Line
- For braking system
- with ABS
- Disc
- Dual
- Length
- 28 cm (11"), 33 cm (13"), 38 cm (15")
- Mounting position
- Middle
- Material
- Stainless Steel
- Type
- Mid
- Units
- Kit
