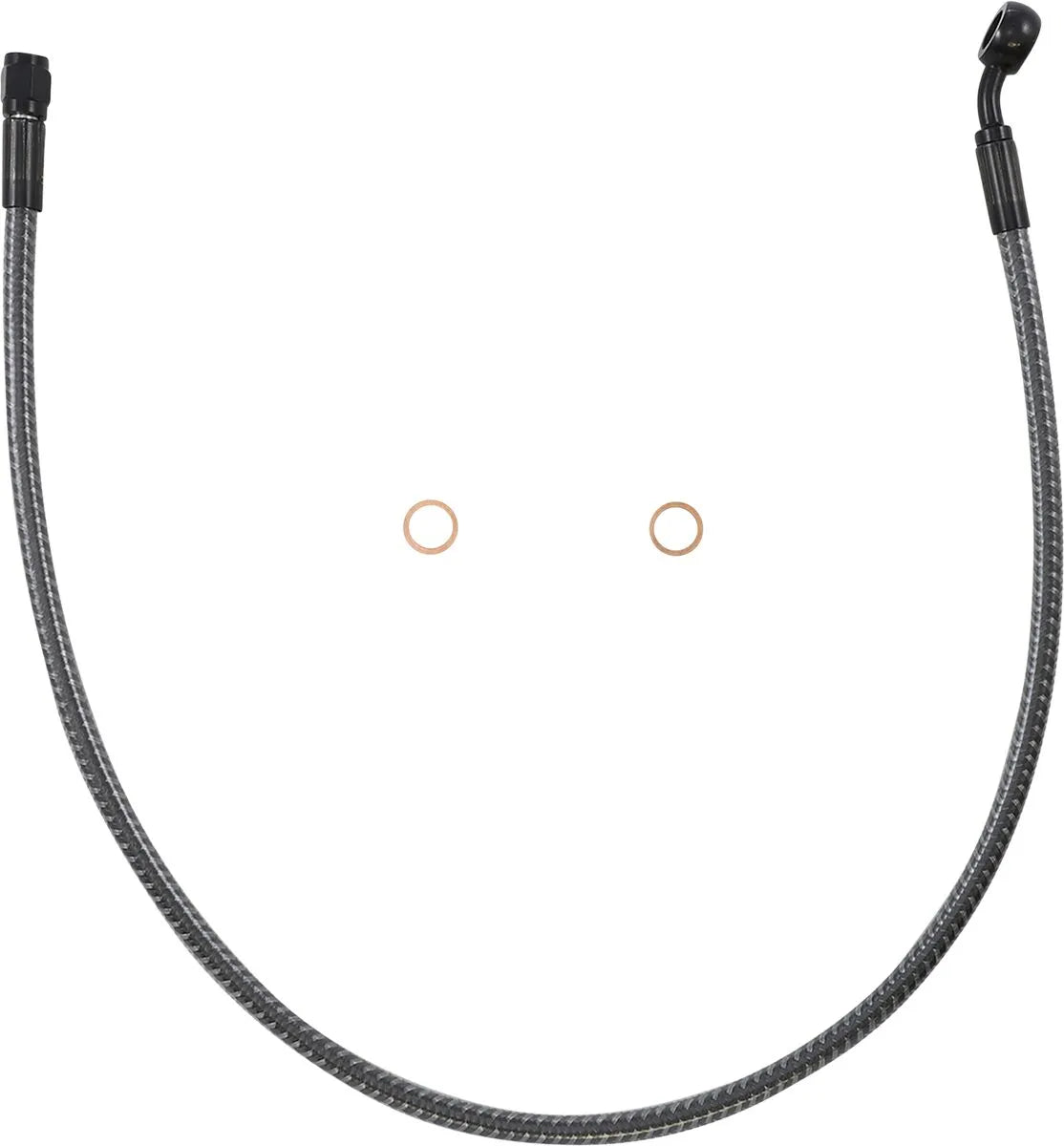

Magnum Shielding Front Upper Brake Line - ABS - 26" - AS77126
Product info
- Item number
- 17416301
- Manufacturer number
- AS77126
- Position
Upgrade your Harley-Davidson's braking performance with the Magnum Shielding Karbonfibr Designer Series ABS-Specific Front Upper Brake Kit. This kit combines high-tech aesthetics with enhanced construction to meet the demands of modern ABS systems.
Description
The Karbonfibr Designer Series brake lines feature a unique wire braid, blending black and gray tones to mimic the look of carbon fiber, offering a stylish alternative that complements both black and blackout color schemes. Constructed with enhanced materials, these brake lines are specifically designed to be compatible with Harley-Davidson ABS requirements for both stock and extended-length configurations. The PTFE inner tubing, reinforced with Aramid Fiber, minimizes line expansion, ensuring consistent and reliable braking performance. A crystal-clear outer jacket protects against scuffing and discoloration, maintaining a pristine appearance for years to come. The polished and black chrome-plated -3AN fittings, along with optimized banjo angles, guarantee a secure and easy installation. These brake lines are meticulously assembled in the U.S.A. and follow the OE routing for a seamless fit. Note that non-stock applications require precise measurements for upper brake line length and banjo angle.
Features & highlights
- Unique carbon fiber look: Wire braid mimics high-tech carbon fiber, enhancing your bike's aesthetics.
- ABS compatibility: Specifically designed for Harley-Davidson ABS systems, ensuring optimal braking performance.
- Durable construction: PTFE inner tubing with Aramid Fiber reinforcement minimizes line expansion and provides exceptional durability.
- Protective outer jacket: Crystal-clear outer jacket prevents scuffing and discoloration, maintaining a clean look.
- Easy installation: -3AN connections and optimized banjo angles ensure a straightforward installation process.
- Premium finish: Polished and black chrome-plated fittings add a touch of style and corrosion resistance.
- Made in the USA: Assembled in the U.S.A. for guaranteed quality and reliability.
Technical specifications
- Brand: Magnum Shielding
- Product Name: Brake Line
- Type: Universal Front Upper Brake Line Kit
- Color/Finish: Silver, Karbonfibr, Carbon Fiber
- Material: PTFE inner tubing with Aramid Fiber reinforcement, PVC outer jacket
- Length: 26" (66 cm)
- Master Cylinder Banjo: 10 mm 35° Banjo Fitting
- For Braking System: with ABS
- Mounting Position: Front, Upper
- Units: Kit
Important to know
This upper brake line kit requires separate purchase of adapters #1742-0658 for '18 - '21 models or #1742-0458 for '12 - '17 models for installation. Harley-Davidson motorcycles equipped with anti-lock brake systems require ABS-specific upper and lower brake line kits to maintain proper anti-lock braking functionality. Ensure correct fitment by measuring upper brake line length and banjo angle for non-stock applications.
- Brand
- MAGNUM SHIELDING
- Vendor part number
- AS77126
- Color finish
- Silver, KARBONFIBR, Carbon Fiber
- Product name
- Brake Line
- For braking system
- with ABS
- Length
- 66 cm (26")
- Mounting position
- Front, Upper
- Material
- PTFE
- Type
- Universal
- Units
- Kit
