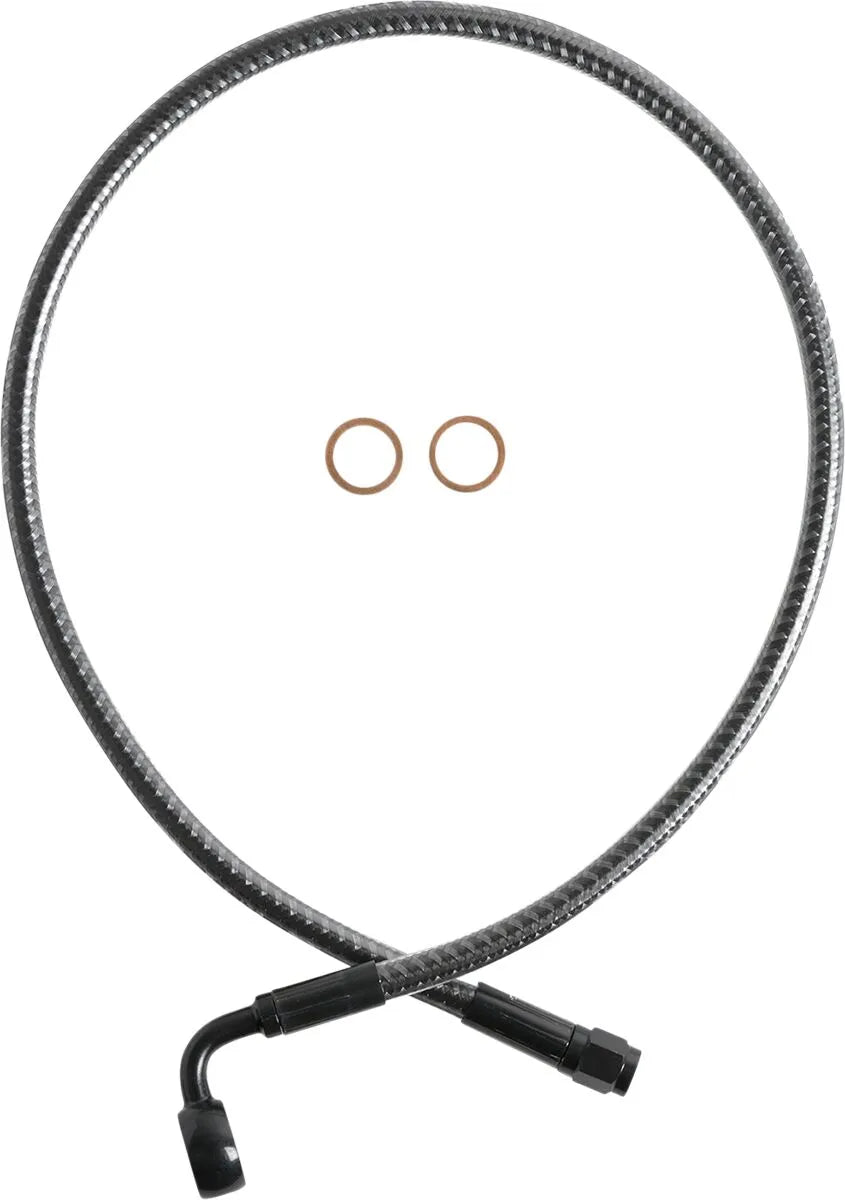

Magnum Shielding KARBONFIBR Upper Brake Line - ABS - 26" - AS778026
Product info
- Item number
- 17416316
- Manufacturer number
- AS778026
- Position
Upgrade your Harley-Davidson's braking performance with the Magnum Shielding Karbonfibr Designer Series ABS-Specific Front Upper Brake Kit. This kit combines high-tech aesthetics with enhanced construction to deliver reliable and stylish braking.
Description
The Karbonfibr brake line kit features a unique wire braid created from distinct black and gray tones, interwoven to mimic the look of carbon fiber, providing a unique alternative to traditional black braid that complements black or blackout color scheme motorcycles. Designed with Harley-Davidson ABS requirements in mind, this kit ensures compatibility with both stock and alternate length brake lines. The PTFE inner tubing, braided with Aramid Fiber reinforcement, minimizes line expansion, delivering consistent and reliable braking performance. The crystal-clear outer jacket protects against scuffing and discoloration, maintaining the pristine look of your ride. Fittings are highly polished and black chrome-plated for durability and style. With -3AN connections and precise banjo angles, installation is straightforward, ensuring a secure and leak-free connection. Assembled in the U.S.A., Magnum Shielding brake lines follow the same routing path as OE, guaranteeing seamless integration and optimal performance.
Features & highlights
- Unique Karbonfibr braid mimics the look of high-tech carbon fiber, enhancing your motorcycle's aesthetics.
- Specifically designed for Harley-Davidson ABS systems, ensuring optimal braking performance and safety.
- PTFE inner tubing with Aramid Fiber reinforcement minimizes line expansion for consistent braking power.
- Crystal-clear outer jacket provides exceptional protection against scuffs and discoloration.
- Polished and black chrome-plated fittings offer durability and a stylish finish.
- Easy installation with -3AN connections and precise banjo angles.
- Assembled in the U.S.A. for superior quality and reliability.
Technical specifications
- Brand: Magnum Shielding
- Product Name: Brake Line
- MPN: 17416316
- Type: Upper
- Color/Finish: Silver, Karbonfibr, Carbon Fiber
- Material: PTFE
- Length: 26" (66 cm)
- Master Cylinder Banjo: 12 mm 90° Banjo Fitting
- For Braking System: with ABS
- Mounting Position: Upper
Important to know
Upper brake lines may require the use of adapters #1742-0658 for '18 - '21 models or #1742-0458 for '12 - '17 models (sold separately) to install. Non-stock applications require taking a measurement for upper brake line length and banjo angle to ensure correct fitment. This kit is specifically for Harley motorcycles equipped with anti-lock brake systems and requires ABS-specific upper brake lines; failure to do so may result in compromised anti-lock braking ability. Magnum Shielding upper brake line kits manufactured specifically for these applications are identified with the letters "ABS" printed directly on the brake hose.
- Brand
- MAGNUM SHIELDING
- Vendor part number
- AS778026
- Color finish
- Silver, KARBONFIBR, Carbon Fiber
- Product name
- Brake Line
- For braking system
- with ABS
- Length
- 66 cm (26")
- Mounting position
- Upper
- Material
- PTFE
- Type
- Universal
- Units
- Kit
