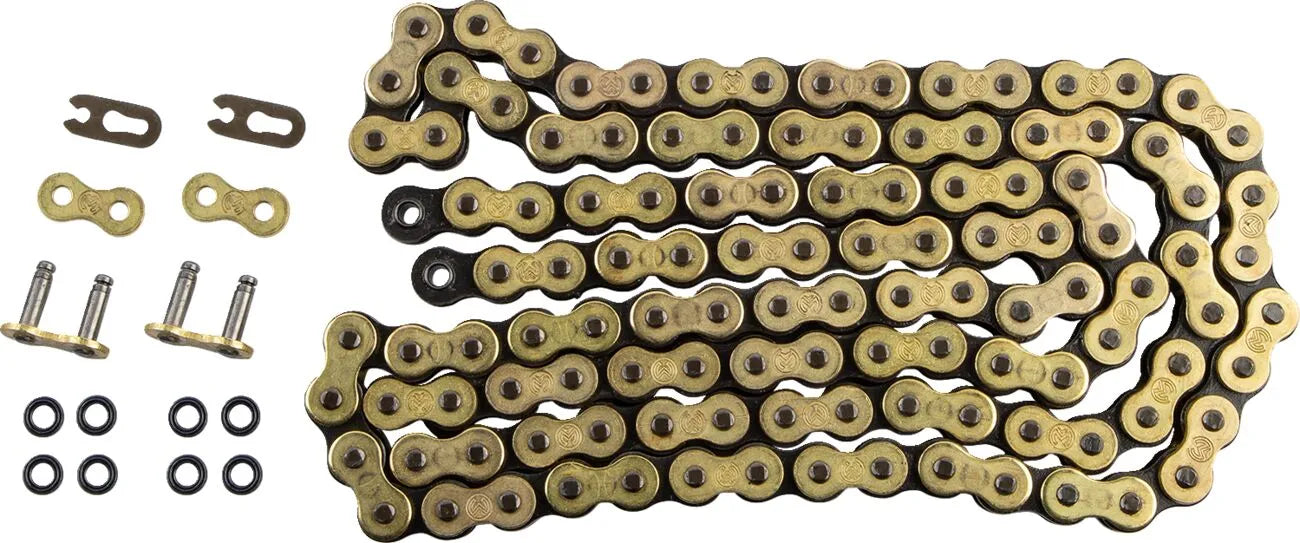

Moose Offroad 520 Fb Chain
Product info
- Item number
- 12220103
- Manufacturer number
- 195FB120
- Position
The Moose Offroad 520 FB chain represents the pinnacle of drive chain technology. Engineered for superior strength and longevity, this chain is designed to handle the rigorous demands of off-road riding, ensuring reliable performance and extended service life.
Description

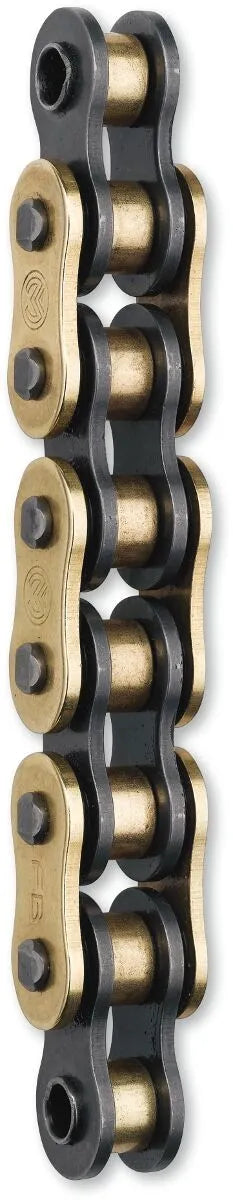

This 520 FB chain utilizes a fine blanking (FB) manufacturing process, which delivers incredibly precise and perfectly cut links. The tight tolerances achieved through this process result in an exceptionally strong union between the plate, pin, and bushing. Constructed from stronger alloyed steel, the FB chain boasts an impressive tensile strength of nearly 8,000 lb (35.3 kN). The special FB-ring seals are chemically treated to enhance their strength and minimize friction, while also allowing the O-rings to be thoroughly impregnated with grease. These FB-rings are demonstrably stronger and more durable than traditional X-rings, offering significantly reduced friction for optimal power transfer. With gold links and rollers, complemented by silver inner plates, pins, and bushings, this chain not only performs exceptionally but also adds a touch of style to your motorcycle. Recommended for offroad applications 450cc and above, but capable to handle engines up to 750cc.
Features & highlights
- Finely Blanked (FB) links for exceptional precision and strength.
- High tensile strength of nearly 8,000 lb (35.3 kN) ensures reliability under extreme conditions.
- FB-ring seals are chemically treated for increased strength and reduced friction, maximizing power delivery.
- FB-rings are more durable than X-rings, providing longer chain life and reduced maintenance.
- Gold links and rollers with silver inner plates enhance appearance and resist corrosion.
- Includes a clip-type connecting link for easy installation.
- Ideal for off-road applications 450cc and above.
Technical specifications
- Brand: Moose Offroad
- Chain Size: 520
- Chain Type: 520 FB
- Seal Type: FB-Ring
- Color/Finish: Gold
- Material: Steel
- Tensile Strength: 35.3 kN (7937 lb)
- Maximum Engine Displacement (Offroad): 750 cc
- Number of Links: 120
- Master Link Connector Type: Clip
Important to know
Replacement connecting links are available separately.
- Brand
- MOOSE OFFROAD
- Vendor part number
- 195FB120
- Product name
- Drive Chain
- Tensile strength
- 35,3 kN (7937 lb)
- Seal type
- FB-Ring
- Number of links
- 120
- Material
- Steel
- Master link connector type
- Clip
- Chain type
- 520 FB
- Chain size
- 520
- Type
- Chain
- Units
- Each
