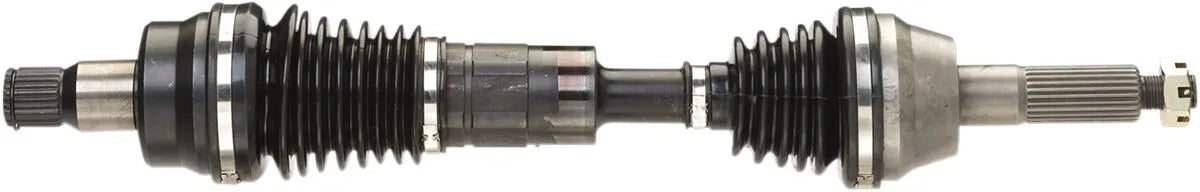

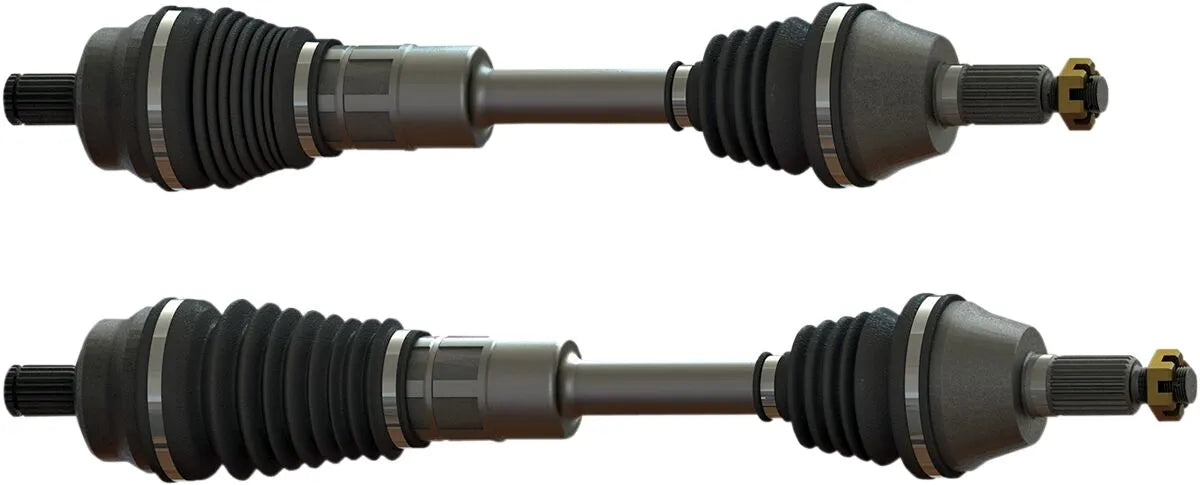

Moose Offroad Heavy-duty Axle With Voodoo Technology
Product info
- Item number
- 02140744
- Manufacturer number
- 76005VD
- Position
Upgrade your ATV or UTV's drivetrain with the Moose Offroad Heavy-Duty Axle, featuring innovative Voodoo Technology. Built for the demands of lifted machines and long-travel suspension systems, this axle delivers superior strength and articulation, ensuring peak performance in challenging off-road conditions.
Description

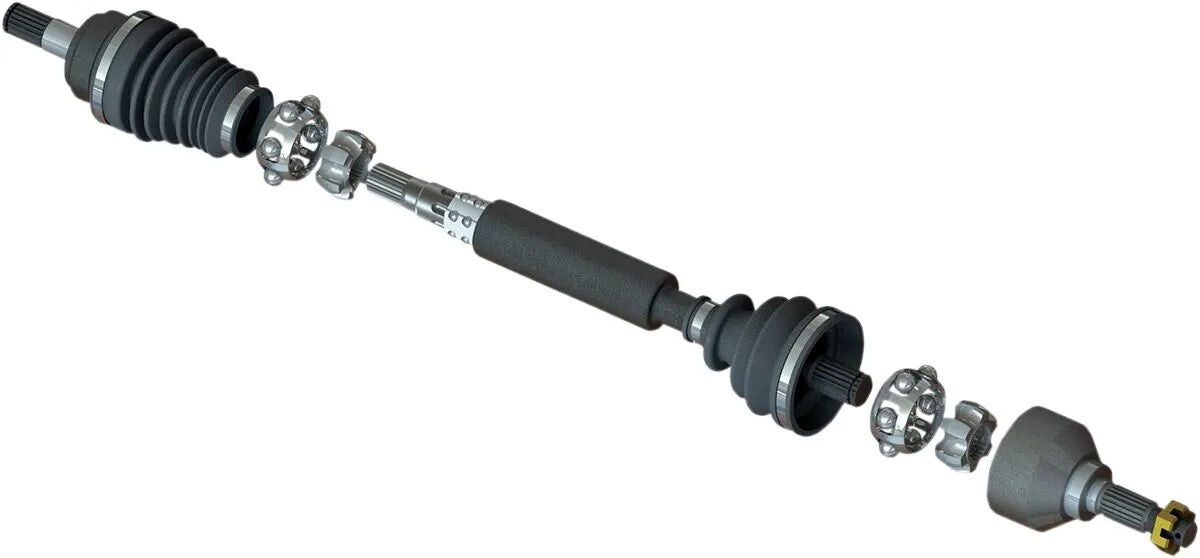

Typical ATV and UTV axles often compromise performance with inboard CV joints designed for both angle operation and suspension travel, limiting articulation to around 25° and travel to a mere 1.25" to 1.5". This is simply not enough for vehicles equipped with lift kits or extended A-arms. The Moose Offroad Heavy-Duty Axle with Voodoo Technology solves this problem. It utilizes fixed Rzeppa inner CV joints that allow an impressive 45° of articulation. A slip spline integrated into the axle shaft provides 2" of travel, preventing disengagement of the inner CV joint from the transaxle when your suspension is fully extended. Telescoping axle bars ride on linear motion ball bearings, ensuring smooth, bind-free action, even under heavy loads. This revolutionary design delivers ultra-high strength and the ability to operate at extreme angles, surpassing the limitations of standard axles. Upgrade to the Moose Offroad Heavy-Duty Axle and experience the difference Voodoo Technology makes.
Features & highlights
- Unleash maximum articulation with fixed Rzeppa inner CV joints, allowing up to 45° of movement.
- Enjoy extended suspension travel with a slip spline that provides 2" of compression and extension.
- Prevent CV joint disengagement, even at full suspension droop.
- Experience smooth, bind-free performance with telescoping axle bars on linear motion ball bearings.
- Benefit from ultra-high strength and durability in demanding off-road environments.
- Specifically designed for ATVs and UTVs with lift kits or long-travel suspension.
Technical specifications
- Brand: Moose Offroad
- Product Name: Axle Kit
- Mounting Position: Front Right
- Duty: Heavy Duty
- Color/Finish: Black, Silver
- Base Color: Black, Silver
Important to know
Ensure proper fitment for your specific ATV or UTV model. Professional installation is recommended.
- Brand
- MOOSE OFFROAD
- Vendor part number
- 76005VD
- Product name
- Axle Kit
- Duty
- Heavy Duty
- Finish
- Raw
- Mounting position
- Front Right
- Base color
- Black, Silver
- Units
- Each
