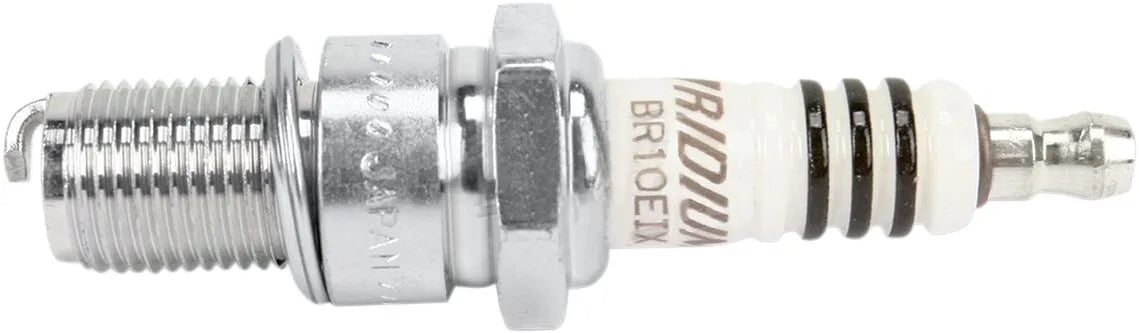

NGK Iridium IX Spark Plug - 6801
Product info
- Item number
- BR10EIX
- Manufacturer number
- 6801
- Position
Experience the pinnacle of spark plug technology with the NGK BR10EIX Iridium IX Spark Plug. This spark plug provides superior ignition and performance, enhancing your motorcycle's responsiveness and overall efficiency. Built with premium materials and advanced design, the NGK Iridium IX delivers consistent and reliable operation.
Description
The NGK BR10EIX Iridium IX Spark Plug represents a significant advancement in spark plug technology. Featuring an iridium electrode that is substantially smaller than both platinum and conventional nickel electrodes, this plug requires less voltage, extending the lifespan of your ignition system. The ultra-small diameter center electrode ensures efficient and consistent spark, optimizing combustion and maximizing power output. The new metal shell plating offers enhanced anti-corrosion properties, ensuring durability and longevity even in demanding conditions. Upgrade to the NGK Iridium IX for improved engine performance and reliability. The 14 mm thread size and 19.1 mm (3/4") thread reach make it compatible with a wide range of engines.
Features & highlights
- Iridium electrode for superior ignition and performance.
- Ultra-small diameter center electrode reduces voltage requirements.
- Extends ignition system life.
- Enhanced anti-corrosion metal shell plating for durability.
- Optimizes combustion for maximum power output.
- Consistent and reliable operation in demanding conditions.
Technical specifications
- Brand: NGK Spark Plugs
- MPN: BR10EIX
- Center Electrode Type: Necked Down
- Electrode Tip Material: Iridium
- Electrical Resistance: 5k Ohms
- Ground Electrode Configuration: Single
- Ground Electrode Shape: Grooved
- Heat Range: 7
- Hex Size: 20.6 mm (13/16")
- Spark Gap: 0.8 mm
- Terminal Configuration: Removable Nut
- Thread Reach: 19.1 mm (3/4")
- Thread Size: 14 mm
- Type: Resistor
Important to know
Ensure correct fitment for your specific motorcycle model. Refer to your motorcycle's service manual for spark plug specifications and installation instructions.
- Brand
- NGK SPARK PLUGS
- Vendor part number
- 6801
- Product name
- Spark Plug
- Thread size
- 14 mm
- Thread reach
- 19,1 mm (3/4")
- Spark gap
- 0.8 mm
- Terminal configuration
- Removable Nut
- Heat range
- 7
- Hex size
- 20,6 mm (13/16")
- Ground electrode shape
- Grooved
- Ground electrode configuration
- Single
- Electrode tip material
- Iridium
- Center electrode type
- Necked Down
- Center electrode projection
- Non-Projected
- Electrical resistance
- 5k Ohms
- Type
- Resistor
- Units
- Each
