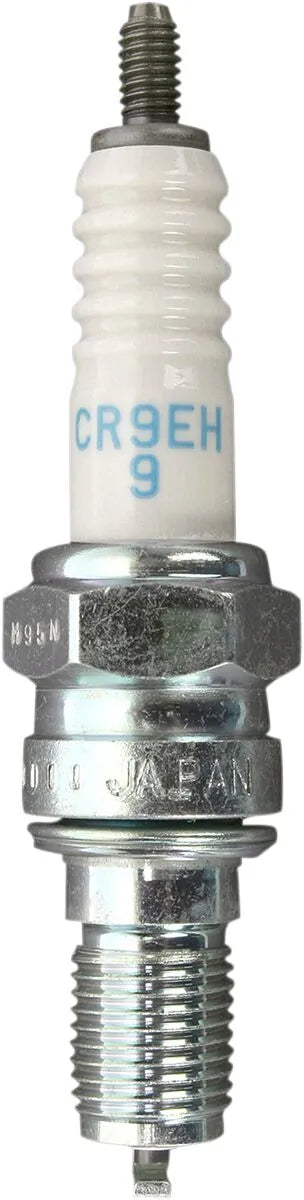

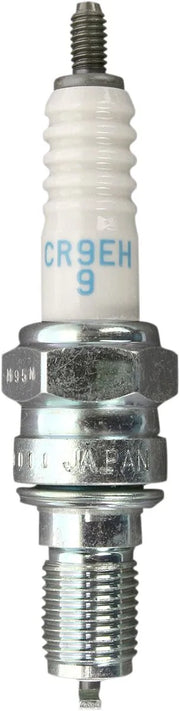

NGK CR9EH9 Spark Plug - 7502
Product info
- Item number
- CR9EH9
- Manufacturer number
- 7502
- Position
Maximize your engine's performance with the NGK CR9EH9 Spark Plug. Designed for optimal combustion and longevity, this spark plug ensures reliable starts and efficient operation. The CR9EH9 offers superior construction and advanced features for demanding applications.
Description
The NGK CR9EH9 Spark Plug utilizes trivalent metal plating to provide exceptional anti-corrosion and anti-seizing properties, ensuring easy installation and removal. Its pure alumina silicate ceramic insulator delivers superior strength and enhanced heat transfer, preventing overheating and extending the plug's lifespan. Triple seals effectively prevent leakage, maintaining consistent pressure and performance. Corrugated ribs prevent flashover, ensuring a steady spark even under high-stress conditions. The copper core efficiently removes heat, further enhancing the plug's durability and performance. Compatible with a wide range of engines, the NGK CR9EH9 spark plug is a dependable choice for enthusiasts and professionals alike. With a 0.9 mm spark gap, this resistor-type spark plug with a 10 mm thread size and 19.1 mm (3/4") thread reach guarantees reliable ignition and smooth engine operation.
Features & highlights
- Trivalent metal plating resists corrosion and prevents seizing.
- Alumina silicate ceramic insulator enhances strength and heat transfer.
- Triple seals prevent combustion gas leakage.
- Corrugated ribs minimize the risk of flashover.
- Copper core provides superior heat dissipation.
- Ensures reliable starts and efficient engine operation.
Technical specifications
- Brand: NGK Spark Plugs
- MPN: CR9EH9
- Center Electrode Type: Standard
- Electrode Tip Material: Nickel Alloy
- Type: Resistor
- Heat Range: 9
- Electrical Resistance: 5k Ohms
- Spark Gap: 0.9 mm
- Hex Size: 16 mm (5/8")
- Thread Size: 10 mm
- Thread Reach: 19.1 mm (3/4")
- Ground Electrode Configuration: Single
- Ground Electrode Shape: Standard
- Center Electrode Projection: Non-Projected
Important to know
Ensure this spark plug is the correct fit for your engine. Consult your vehicle's manual for compatibility.
- Brand
- NGK SPARK PLUGS
- Vendor part number
- 7502
- Product name
- Spark Plug
- Thread size
- 10 mm
- Thread reach
- 19,1 mm (3/4")
- Spark gap
- 0.9 mm
- Terminal configuration
- Threaded Stud
- Heat range
- 9
- Hex size
- 16 mm (5/8")
- Ground electrode shape
- Standard
- Ground electrode configuration
- Single
- Electrode tip material
- Nickel Alloy
- Center electrode type
- Standard
- Center electrode projection
- Non-Projected
- Electrical resistance
- 5k Ohms
- Type
- Resistor
- Units
- Each
