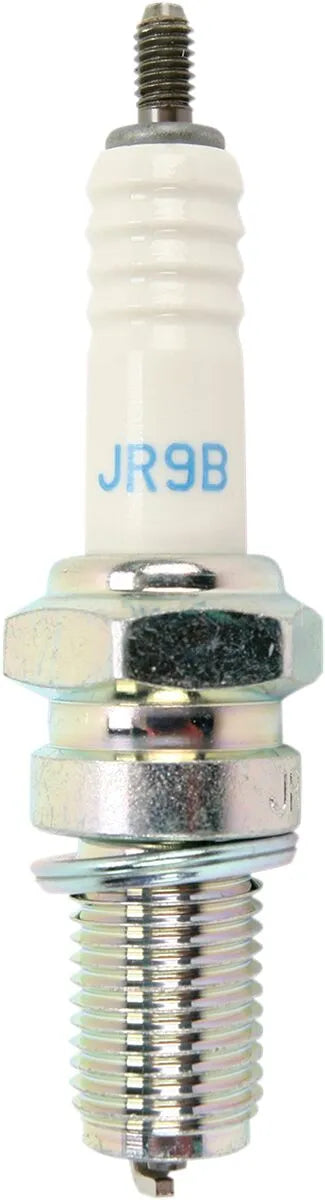

NGK JR9B Spark Plug - 3188
Product info
- Item number
- JR9B
- Manufacturer number
- 3188
- Position
The NGK JR9B spark plug delivers reliable ignition and performance for your motorcycle. Featuring advanced materials and construction, this spark plug ensures efficient combustion and long-lasting durability.
Description
The NGK JR9B spark plug is engineered for optimal performance and reliability. Its trivalent metal plating offers exceptional anti-corrosion and anti-seizing properties, ensuring easy installation and removal. The pure alumina silicate ceramic insulator provides superior strength and enhanced heat transfer, preventing overheating and maintaining consistent spark. Triple seals prevent leakage, ensuring reliable performance in demanding conditions. Corrugated ribs minimize flashover, and the copper core efficiently removes heat, contributing to improved engine performance and longevity. With a 0.7 mm spark gap and resistor type, this spark plug is designed to meet the specific requirements of high-performance engines. The 12 mm thread size and 19.1 mm (3/4") thread reach guarantee a secure and precise fit.
Features & highlights
- Trivalent metal plating provides superior anti-corrosion and anti-seizing.
- Alumina silicate ceramic insulator maximizes strength and heat transfer.
- Triple seals ensure a leak-proof, reliable spark.
- Corrugated ribs prevent flashover for consistent ignition.
- Copper core enhances heat removal, preventing overheating.
- Resistor type minimizes electrical interference.
Technical specifications
- Brand: NGK Spark Plugs
- MPN: JR9B
- Center Electrode Projection: Non-Projected
- Center Electrode Type: Standard
- Electrical Resistance: 5k Ohms
- Electrode Tip Material: Nickel Alloy
- Ground Electrode Configuration: Single
- Ground Electrode Shape: Standard
- Heat Range: 9
- Hex Size: 17.5 mm (11/16")
- Spark Gap: 0.7 mm
- Terminal Configuration: Threaded Stud
- Thread Reach: 19.1 mm (3/4")
- Thread Size: 12 mm
- Type: Resistor
Important to know
Ensure this spark plug is the correct type for your engine. Refer to your vehicle's service manual for specific spark plug requirements.
- Brand
- NGK SPARK PLUGS
- Vendor part number
- 3188
- Product name
- Spark Plug
- Thread size
- 12 mm
- Thread reach
- 19,1 mm (3/4")
- Spark gap
- 0.7 mm
- Terminal configuration
- Threaded Stud
- Heat range
- 9
- Hex size
- 17,5 mm (11/16")
- Ground electrode shape
- Standard
- Ground electrode configuration
- Single
- Electrode tip material
- Nickel Alloy
- Center electrode type
- Standard
- Center electrode projection
- Non-Projected
- Electrical resistance
- 5k Ohms
- Type
- Resistor
- Units
- Each
