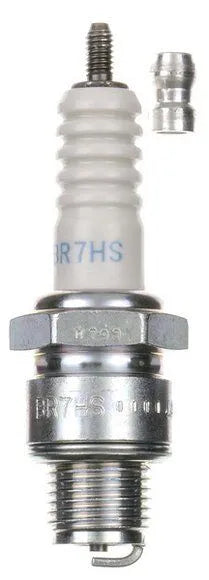

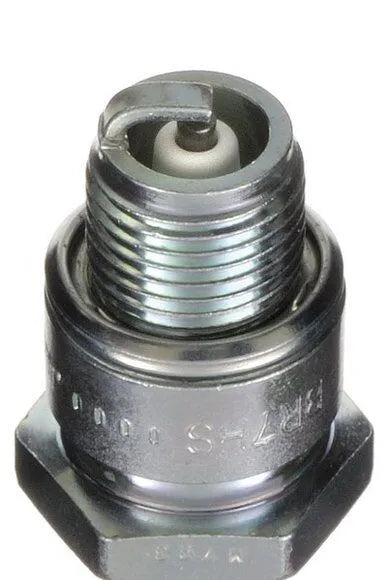

NGK BR7HS Spark Plug - 7852
Product info
- Item number
- 21030360
- Manufacturer number
- 7852
- Position
Experience superior ignition performance with NGK Resistor Spark Plugs. Engineered for a wide range of applications and riding styles, these plugs deliver consistent power and reliability. Their versatile design prevents fouling and pre-ignition, ensuring optimal engine performance in diverse conditions.
Description
NGK Resistor Spark Plugs are meticulously crafted to provide exceptional performance and longevity. The high-alumina ceramics enhance heat dissipation and electrical insulation, while the deep-seated copper core offers a broader heat range. This design allows the plug to operate efficiently under various engine loads and temperatures, preventing both fouling and pre-ignition. The nickel alloy tip ensures extended service life and reliable spark delivery. With a 5k Ohms electrical resistance, these resistor-type spark plugs are suitable for a wide array of motorcycle engines, providing consistent and dependable ignition.
Features & highlights
- High-alumina ceramics improve heat dissipation and electrical insulation.
- Deep-seated copper core provides a wider heat range for optimal performance.
- Nickel alloy tip ensures longer life and consistent spark.
- Versatile design prevents fouling from running too cool.
- Prevents pre-ignition from running too hot.
- Suitable for various riding styles and engine applications.
Technical specifications
- Brand: NGK Spark Plugs
- Type: Resistor Type
- Heat Range: 7
- Center Electrode Type: Standard
- Electrode Tip Material: Nickel Alloy
- Ground Electrode Configuration: Single
- Ground Electrode Shape: Standard
- Electrical Resistance: 5k Ohms
- Thread Size: 14 mm
- Thread Reach: 12.7 mm (1/2")
- Hex Size: 20.6 mm (13/16")
- Spark Gap: 0.7 mm (0.028")
- Terminal Configuration: Removable Nut
- Center Electrode Projection: Non-Projected
Important to know
Ensure this spark plug is the correct type and heat range for your specific engine. Consult your motorcycle's service manual for recommended spark plug specifications.
- Brand
- NGK SPARK PLUGS
- Vendor part number
- 7852
- Product name
- Spark Plug
- Thread size
- 14 mm
- Thread reach
- 12,7 mm (1/2")
- Spark gap
- 0,7 mm (0,028")
- Terminal configuration
- Removable Nut
- Heat range
- 7
- Hex size
- 20,6 mm (13/16")
- Ground electrode shape
- Standard
- Ground electrode configuration
- Single
- Electrode tip material
- Nickel Alloy
- Center electrode type
- Standard
- Center electrode projection
- Non-Projected
- Electrical resistance
- 5k Ohms
- Type
- Resistor Type
- Units
- Each
