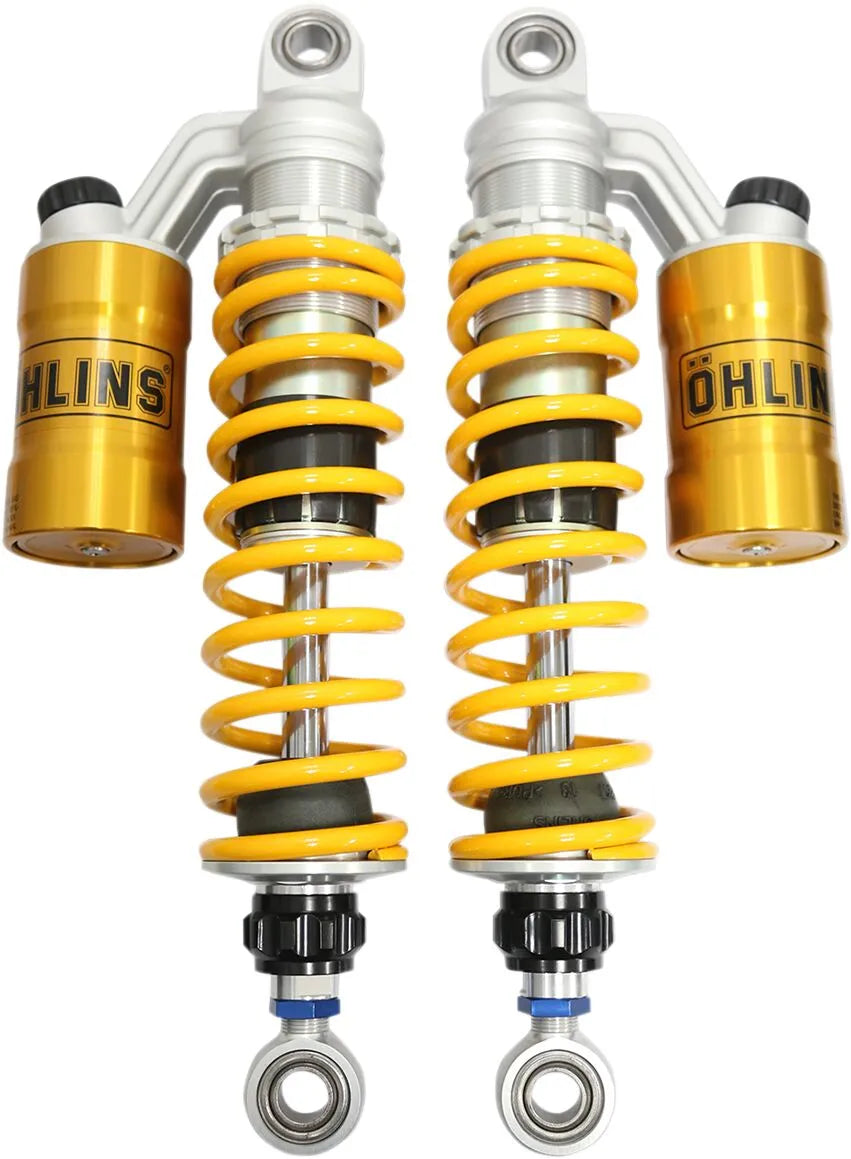

Öhlins STX 36 Piggyback Shocks - 334mm - Chrome/Yellow - HO 819
Product info
- Item number
- 13101868
- Manufacturer number
- HO 819
- Position
- Length
- 334 mm Adjustable +9/−1 mm
- Stroke
- 93 mm
- Adjustment
- Preload · Rebound · Compression · Length
- Spring rate
- 11–15 N/mm, progressive
- Rider weight
- Up to 80 kg Stiffer springs for over 80 kg included (12–19 N/mm)
- Packaging
- Pair (2 pcs)
- Mounting
- Mounting instructions (PDF)
Upgrade your Honda Grom's suspension with the Öhlins STX Piggyback S36 Mini Shock. This high-performance shock absorber delivers superior comfort, rideability, and overall performance. Experience the difference a premium suspension system makes on your ride.
Description
The Öhlins STX Piggyback S36 Mini Shock is engineered for riders who demand the best. Featuring adjustable rebound and compression damping, this monotube shock with an external piggyback reservoir allows for precise tuning to match your riding style and road conditions. The high-pressure nitrogen gas charge ensures consistent performance, while the STX single tube design and 36 mm piston diameter provide excellent damping characteristics. The adjustable preload allows for fine-tuning of the ride height and spring rate. With hard anodized, precision CNC-machined components and a low-friction shaft/seal head design, this shock is built to last. Fully serviceable and repairable, this shock will provide years of reliable performance. This specific model is designed for Honda Grom riders over 80 kg (176 lb).Features & highlights
- Experience superior comfort, rideability, and performance.
- Customize your ride with adjustable rebound and compression damping.
- Enjoy consistent performance thanks to the high-pressure nitrogen gas charge.
- Benefit from the durable construction with hard anodized, CNC-machined components.
- Fine-tune your suspension with adjustable preload.
- Rely on a fully serviceable and repairable design for long-lasting use.
- Features a monotube shock with external piggyback reservoir.
Technical specifications
- Brand: Öhlins
- Product Name: Shock Absorber
- Vendor Part Number: HO 819
- Type: Coilover Monotube
- Mounting Position: Rear
- Damping Method: Gas Charged
- Reservoir Location: Piggyback
- Adjustment Type: Adjustable Compression Damping, Adjustable Rebound Damping, Adjustable Length
- Bore Size: 36.00 mm (1.42")
- Extended Length: 334.00 mm (13.15")
- Progressive Spring Rate: 1.22 kg/mm - 1.94 kg/mm (68.54 lb/in - 108.52 lb/in)
- Material: Steel
- Color/Finish: Chrome, Yellow
Important to know
- This shock is designed for Honda Grom riders over 80 kg (176 lb). If you are under 80 kg (176 lb), see HO 424.
- Brand
- OHLINS
- Vendor part number
- HO 819
- Color finish
- Chrome, Yellow
- Product name
- Shock Absorber
- Bore size
- 36,00 mm (1,42")
- Mounting position
- Rear
- Material
- Steel
- Type
- Coilover Monotube
- Units
- Pair
