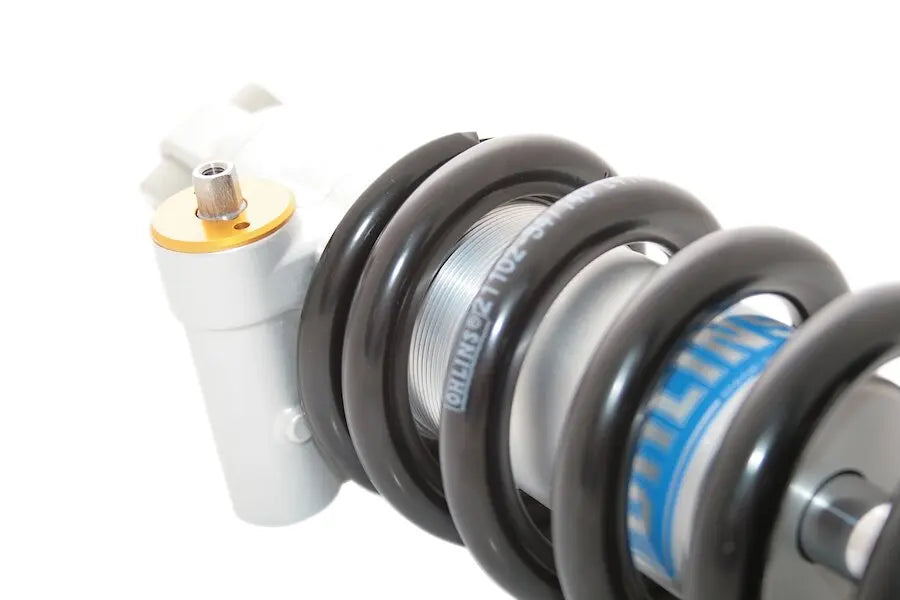

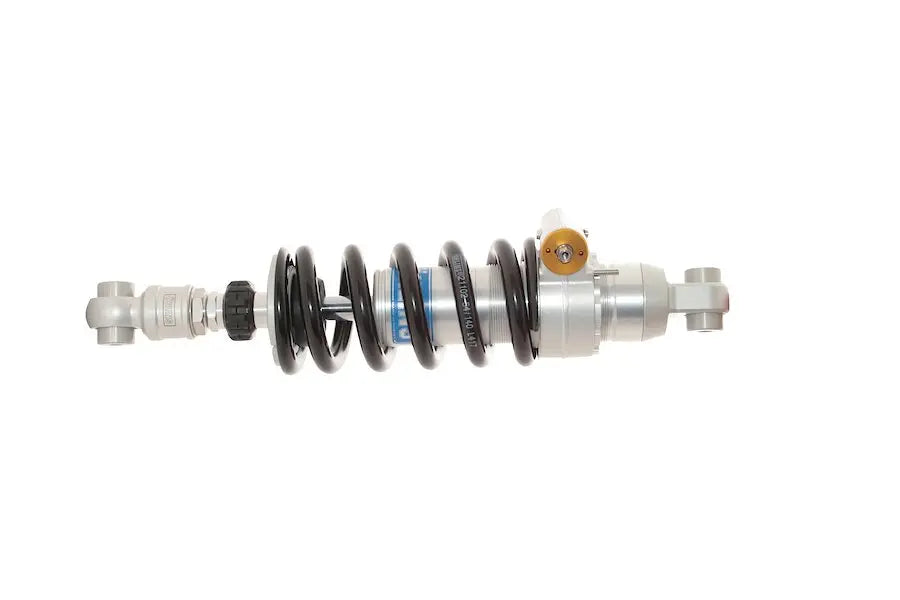

Öhlins STX 46 Street Shock - 374mm - Silver - BM 642
Product info
- Item number
- 13102475
- Manufacturer number
- BM 642
- Position
- Length
- 374 mm Adjustable +10 mm
- Stroke
- 52 mm
- Adjustment
- Rebound · Length · Preload
- Spring rate
- 140 N/mm
- Mounting
- Mounting instructions (PDF)
Upgrade your motorcycle's suspension with the Öhlins STX46 Shock, designed to deliver top-tier comfort, rideability, and performance. This high-quality shock absorber ensures a smoother, more controlled ride, enhancing your overall riding experience on any terrain.
Description
The Öhlins STX46 shock features a sophisticated STX single-tube design with a 46mm piston diameter, providing exceptional damping characteristics. Its monotube construction with an internal reservoir and high-pressure nitrogen gas charge ensures consistent performance under demanding conditions. The hose-mounted hydraulic preload adjustment allows for quick and easy spring preload adjustments to accommodate varying rider weights and riding styles. Precision CNC-machined components with hard anodizing and a low-friction shaft/seal head design contribute to the shock's durability and long-lasting performance. Adjustable rebound damping further allows fine-tuning for optimal handling. Fully serviceable and repairable, the Öhlins STX46 shock is an investment in the longevity and performance of your motorcycle's suspension.
Features & highlights
- Hose-mounted hydraulic preload adjustment allows for quick and easy adjustments.
- STX single-tube design with 46mm piston optimizes damping performance.
- Monotube construction with internal reservoir and high-pressure nitrogen ensures consistent operation.
- Adjustable rebound damping enables fine-tuning for superior handling.
- Hard anodized, precision CNC-machined components provide exceptional durability.
- Low-friction shaft/seal head design minimizes wear and maximizes performance.
- Fully serviceable and repairable for long-term reliability.
Technical specifications
- Brand: Öhlins
- Type: Shock
- Piston Diameter: 46 mm
- Design: STX Single Tube
- Reservoir: Internal
- Gas Charged: High Pressure Nitrogen
- Rebound Damping: Adjustable
- Preload Adjustment: Hose Mounted Hydraulic
- Length: 375 mm (14.75")
- Material: Steel
- Mounting Position: Rear
- Color/Finish: Silver
Important to know
Multiple spring rates are available to accommodate a wide range of riders. Billet tool included for preload adjustment.
- Brand
- OHLINS
- Vendor part number
- BM 642
- Color finish
- Silver
- Product name
- Suspension Kit
- Length
- 375 mm (14-3/4")
- Mounting position
- Rear
- Material
- Steel
- Type
- Shock
- Units
- Kit
