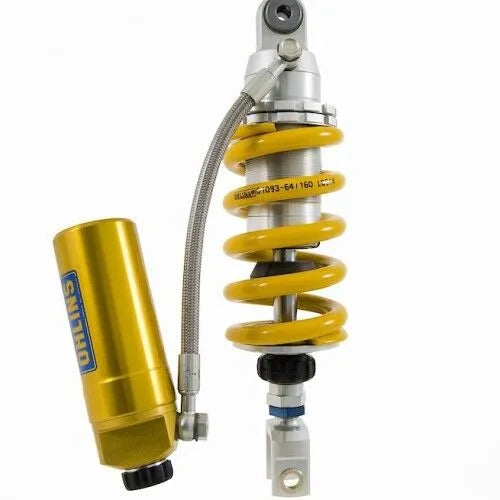

Öhlins STX 46 Supersport Shock - 309mm - AP 660
Product info
- Item number
- 13102469
- Manufacturer number
- AP 660
- Position
- Length
- 309 mm Adjustable +0.5/−5.5 mm
- Stroke
- 51 mm
- Adjustment
- Rebound · Compression · Length
- Spring rate
- 160 N/mm
- Mounting
- Mounting instructions (PDF)
Experience the ultimate in motorcycle suspension technology with the Öhlins STX46 Shock. This high-performance shock absorber delivers top-level comfort, rideability, and performance for a wide range of riders. Upgrade your motorcycle's handling and enjoy a smoother, more controlled ride with this fully serviceable and repairable shock.
Description
The Öhlins STX46 shock features a hose-mounted hydraulic preload adjustment for easy fine-tuning. Its STX single-tube design incorporates a 46mm piston diameter, ensuring optimal damping and control. The monotube shock with internal reservoir is high-pressure nitrogen gas charged, offering consistent performance under demanding conditions. Adjustable rebound damping allows you to tailor the shock's response to your specific riding style and road conditions. Precision CNC-machined components, hard anodized for durability, combined with a low-friction shaft/seal head design, provide smooth and reliable operation. Multiple spring rates are available to accommodate various rider weights and preferences, making it a versatile upgrade for any motorcycle enthusiast. This STX 46 shock delivers unparalleled performance and is fully serviceable, ensuring long-lasting value.
Features & highlights
- Hose-mounted hydraulic preload adjustment allows for quick and easy spring preload changes.
- STX single-tube design and 46mm piston provide superior damping and control.
- High-pressure nitrogen gas charged monotube design ensures consistent performance.
- Adjustable rebound damping lets you fine-tune the shock to your riding style and conditions.
- Precision CNC-machined and hard-anodized components for maximum durability.
- Low-friction shaft and seal head design for smooth and responsive action.
- Fully serviceable and repairable for extended lifespan and value.
Technical specifications
- Brand: Öhlins
- Type: Shock
- Mounting Position: Rear
- Piston Diameter: 46mm
- Damping: Adjustable Rebound
- Preload: Adjustable with Billet Tool, Hydraulic Hose Mounted
- Design: STX Single Tube, Monotube with Internal Reservoir
- Gas Charged: High Pressure Nitrogen
Important to know
Billet tool for preload adjustment included. Spring rates are available separately to suit individual rider needs.
- Brand
- OHLINS
- Vendor part number
- AP 660
- Product name
- Suspension Kit
- Mounting position
- Rear
- Type
- Shock
- Units
- Kit
