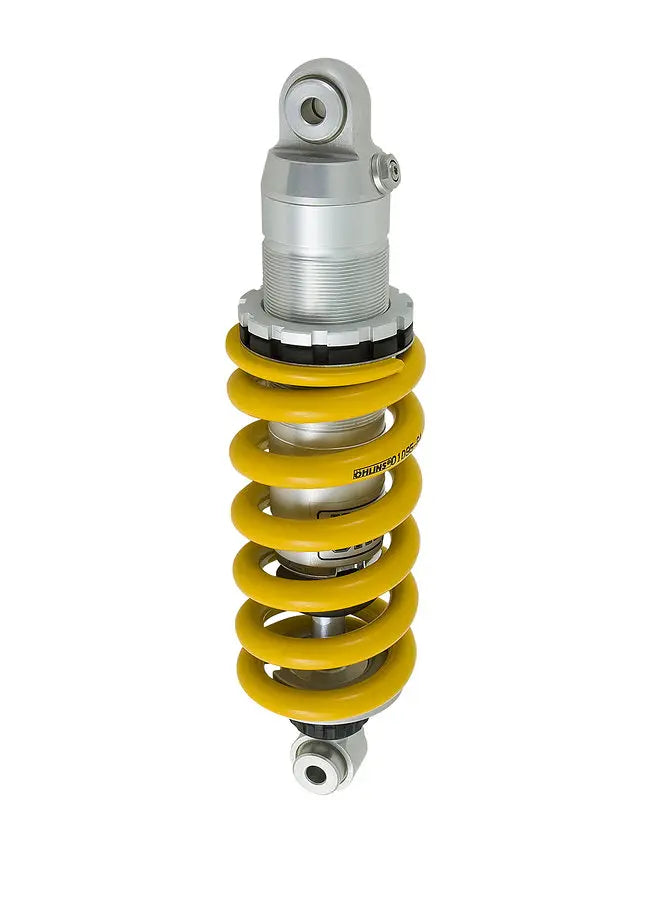

Öhlins STX 46 Supersport Shock - 310.5mm - YA 585
Product info
- Item number
- 13102599
- Manufacturer number
- YA 585
- Position
- Length
- 310.5 mm
- Stroke
- 52.5 mm
- Adjustment
- Rebound
- Spring rate
- 130 N/mm
- Mounting
- Mounting instructions (PDF)
Experience superior performance and control with the latest evolution of the Öhlins TTX Flow DV shock absorber. This advanced shock is engineered to elevate your riding experience, delivering unmatched adaptability and responsiveness on any track. Fine-tune your motorcycle's suspension to achieve the perfect balance between traction, comfort, and stability.
Description
The Öhlins TTX Flow DV shock absorber utilizes the race-proven TTX system and Dynamic Valve (DV) technology to provide optimal damping characteristics, regardless of riding conditions. This results in quicker response times and more consistent, predictable performance than ever before. The enhanced high-speed compression adjuster allows you to adapt your setup to a wide range of track conditions, improving handling through turns and calming the chassis for corner entry. Adjustable rebound, and high- and low-speed compression damping enable precise tuning to match your riding style and track requirements. The new high-speed compression adjuster targets position, stroking velocity, g-force hold up, and bottoming control, simplifying the process of finding your optimal setup. Enjoy smoother transitions over bumpy terrain and superior bottoming resistance for maximum confidence and control.
Features & highlights
- New, highly efficient high-speed compression adjuster allows you to quickly adapt to varying track conditions and optimize your motorcycle's handling.
- Öhlins TTX technology and Dynamic Valve (DV) technology deliver optimal damping characteristics for consistent performance.
- Adjustable rebound and high/low-speed compression damping enable fine-tuning to suit your riding style and track requirements.
- New rebound needle and shaft jet design enhance responsiveness and control.
- Superior bottoming resistance provides added confidence and stability during aggressive riding.
- Easy spring changes are facilitated by a unique spring clip design, simplifying maintenance and setup adjustments.
- Wide range of optional springs and the option to add a preload adjuster further expand customization options.
Technical specifications
- Brand: Ohlins
- Part Number: 13102599
- Type: Shock
- Mounting Position: Rear
- Length: 310 mm (12.13")
Important to know
Spring and preload adjuster are available separately.
- Brand
- OHLINS
- Vendor part number
- YA 585
- Product name
- Suspension Kit
- Length
- 310 mm (12-13/64")
- Mounting position
- Rear
- Type
- Shock
- Units
- Pair
