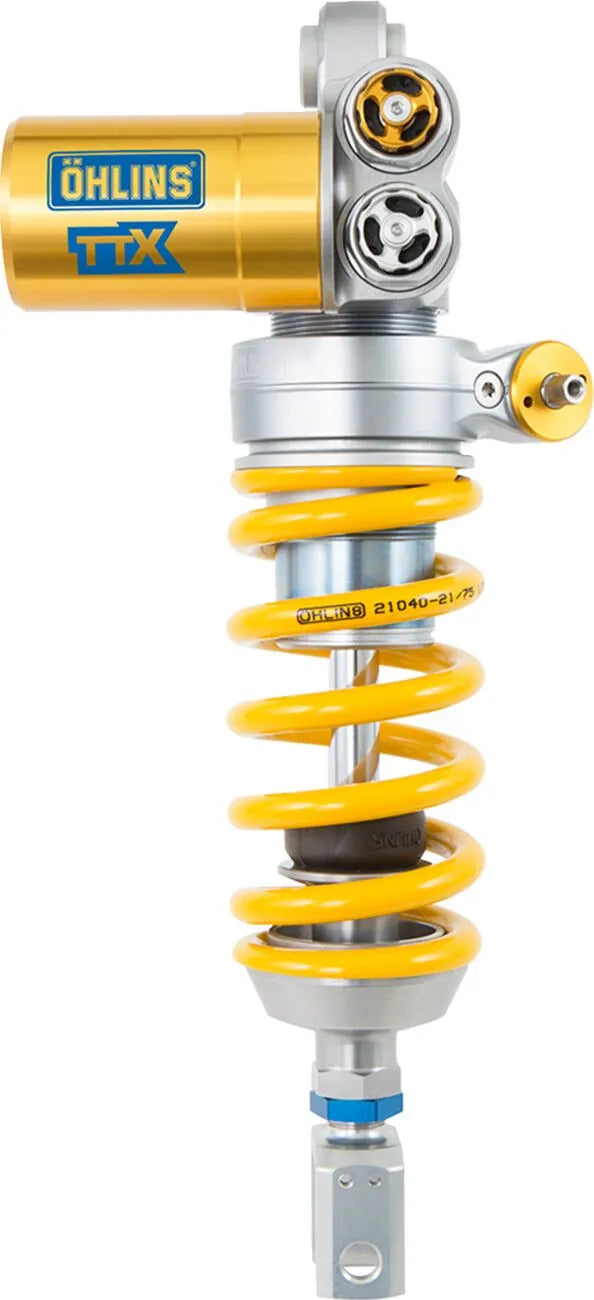

Öhlins TTX GP Shock - 369mm - Silver/Yellow - BM 568
Product info
- Item number
- 13102039
- Manufacturer number
- BM 568
- Position
- Length
- 369 mm Adjustable +2/−10 mm
- Stroke
- 80 mm
- Adjustment
- Preload · Rebound · Compression · Length
- Spring rate
- 54 N/mm, linear
- Mounting
- Mounting instructions (PDF)
Experience superior handling and control with the Öhlins TTX GP Shock Absorber. This high-performance shock absorber delivers precise and consistent damping, allowing for fine-tuning to meet the demands of any riding condition. Built with Öhlins' advanced twin-tube technology and redesigned components, the TTX GP enhances chassis feedback and rider feel, giving you the confidence to push your limits on the track or the street.
Description
The Öhlins TTX GP Shock Absorber is engineered with needle profiles for compression and rebound adjusters, allowing for a wider range of preload and compression adjustment. The updated design optimizes oil flow and volume control, ensuring consistent damping performance. Rebound and compression settings are completely separated to eliminate cavitation risks. The 36 mm shock primary piston has been redesigned to provide improved performance, delivering better traction and overall feel. This shock absorber sets a new industry standard by minimizing shock-to-shock variance, delivering enhanced control and predictability.
Features & highlights
- Utilizes Öhlins twin-tube shock technology for superior damping.

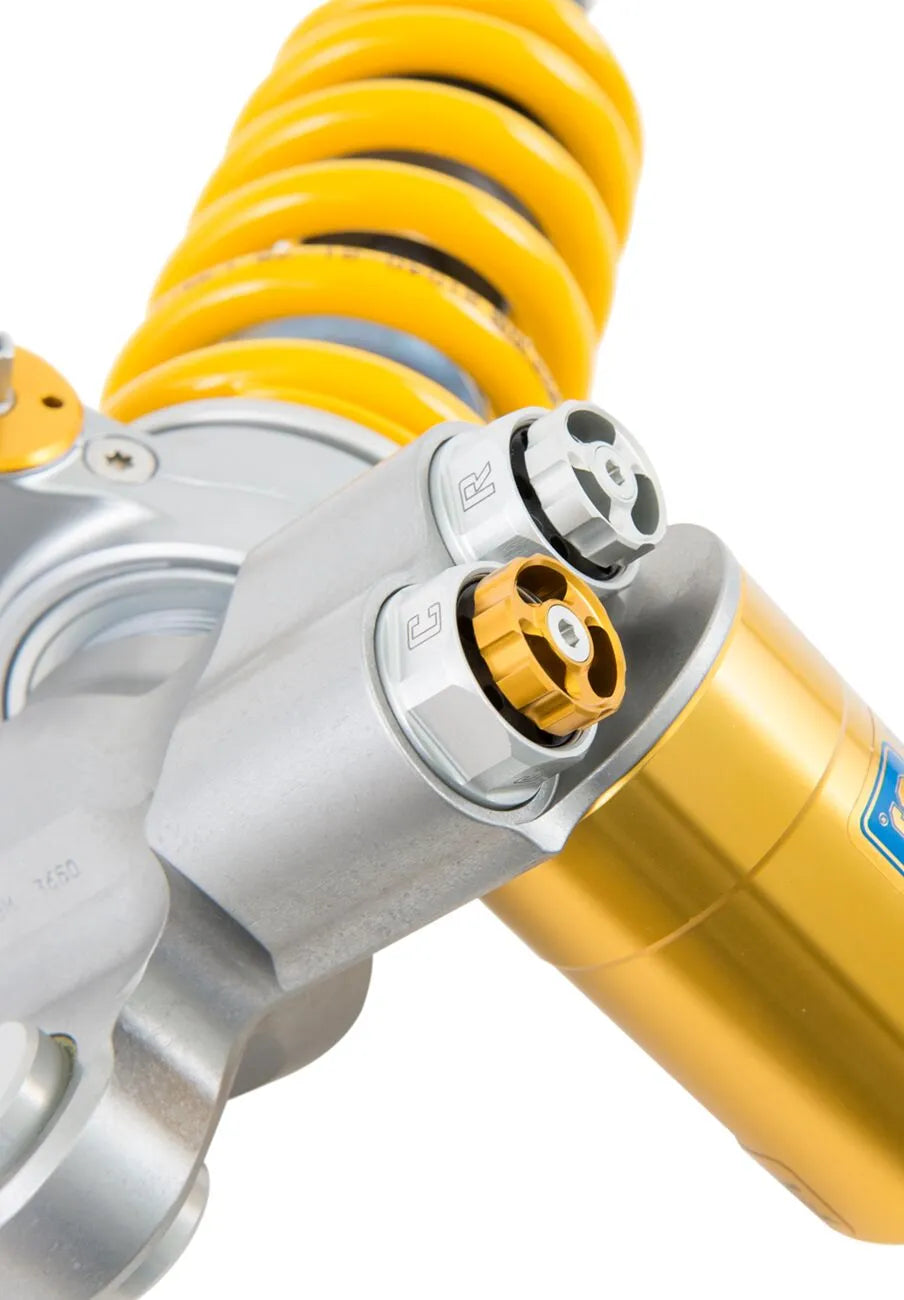

- Features needle profiles for precise compression and rebound adjustments.
- Updated design improves oil flow for consistent performance and fine-tuning.
- Wider range of preload and compression adjustment available.
- Rebound and compression settings are completely separated, preventing cavitation.
- Redesigned 36 mm shock primary piston enhances traction and rider feel.
- Minimizes shock-to-shock variance for consistent performance.
Technical specifications
- Brand: Öhlins
- Product Name: Shock Absorber
- Type: Coilover Twin-Tube
- Mounting Position: Rear
- Reservoir Location: Piggyback
- Adjustment Type: Adjustable Compression Damping, Adjustable Rebound Damping, Adjustable Spring Preload, Integrated Hydraulic Spring Preload, Adjustable Length
- Bore Size: 36.00 mm (1.42")
- Linear Spring Rate: 54.00 N/mm (308.35 lb/in)
- Color/Finish: Silver, Yellow
- Damping Method: Compression
- Extended Length: Standard
Important to know
Please ensure proper installation by a qualified technician to achieve optimal performance and safety.
- Brand
- OHLINS
- Vendor part number
- BM 568
- Color finish
- Silver, Yellow
- Product name
- Shock Absorber
- Bore size
- 36,00 mm (1,42")
- Mounting position
- Rear
- Type
- Coilover Twin-Tube
- Units
- Each
