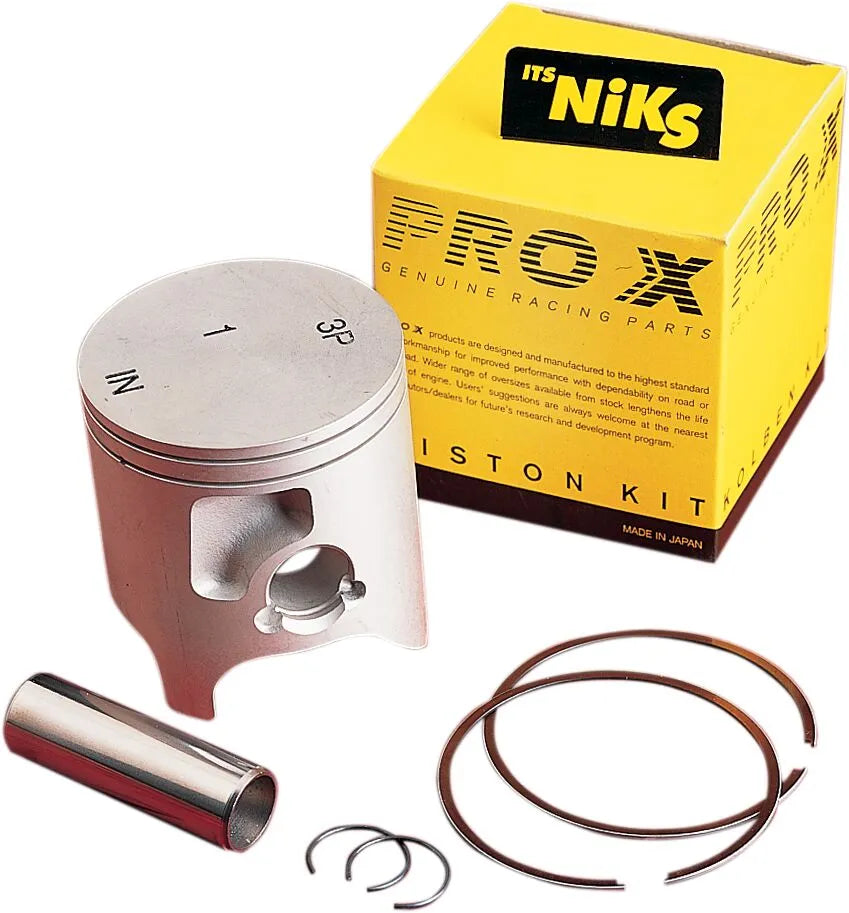

ProX 2-Stroke Cast Piston Kit - 65.75mm Bore - +1.75mm - 01.2020.175

Upgrade your two-stroke engine with the Prox Cast Piston Kit, designed for performance and reliability. This kit provides a stable and durable piston solution, crafted with precision and high-quality materials. Experience enhanced engine performance with improved thermal characteristics.

Description

The Prox Cast Piston Kit is engineered to deliver optimal performance for your two-stroke engine. Constructed from a gravity-cast aluminum alloy with approximately 18% silicon content, these pistons offer exceptional stability and reduced thermal expansion. This silicon-rich alloy is crucial for maintaining consistent performance under demanding conditions. Suitable for both cast iron and Nikasil cylinder bores, Prox offers a range of oversizes in A/B/C/D gradings, with each increment increasing by 0.01mm in diameter, ensuring a precise fit for your engine. The +1.75mm piston size enhances displacement and power output. Upgrade to Prox pistons and experience the difference in quality and performance.

Features & highlights

• Enhanced Stability: ProX cast pistons provide exceptional stability under high-stress conditions.
• Optimized Thermal Expansion: The silicon-rich aluminum alloy reduces thermal expansion for consistent performance.
• Precision Fit: Available in multiple oversizes, graded in A/B/C/D, with 0.01mm increments for Nikasil bores.
• Durable Construction: Made from high-quality gravity-cast aluminum alloy for long-lasting reliability.
• Improved Performance: Designed to deliver increased performance and efficiency for two-stroke engines.
• Moly Coated Skirt: Reduces friction and wear for extended piston life.

Technical specifications

• Brand: PROX
• Part Number: 01.2020.175
• Bore Size: 65.75 mm
• Engine Type: 2-Stroke
• Piston Material: Cast Aluminum Alloy
• Piston Size: +1.75 mm
• Ring Material: Steel
• Skirt Coating: Moly Coated
• Units: Kit

Important to know

Ensure proper cylinder bore compatibility (Cast Iron or Nikasil) and select the correct oversize (A/B/C/D) for Nikasil bores based on 0.01mm increments. Professional installation is recommended.
