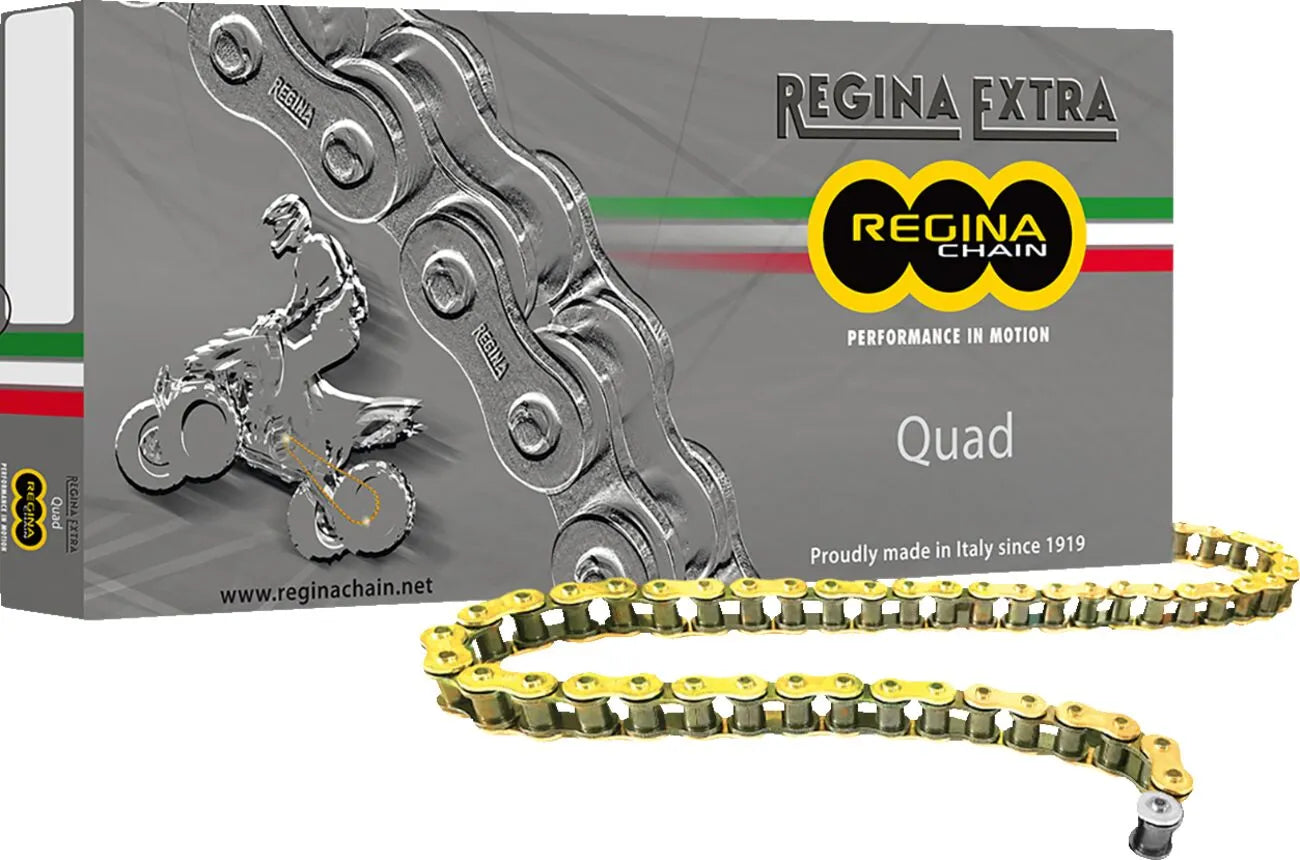

Regina 520 QUAD Z-Ring Chain - 116 Links - Gold - 135QUAD/008
Product info
- Item number
- 12240075
- Manufacturer number
- 135QUAD/008
- Position
- Chain size
- 520
- Links
- 116
- Seal type
- Z-Ring
- Tensile strength
- 36 kN
- Max. engine (off-road)
- 500 cc
The Regina 520 Quad Drive Chain is engineered for the rigorous demands of ATV riding, delivering exceptional performance and durability. This chain is designed to provide maximum power transfer while remaining lightweight, ensuring optimal handling and responsiveness for your ATV.
Description
Built to withstand severe stresses, the Regina 520 Quad Chain features patented Z44 sealing rings, representing a significant advancement over traditional X-ring and Z-ring designs. These rings greatly improve performance and extend wear life. The chain's design reduces friction by 50% compared to O-rings, optimizing power delivery and minimizing wear. Constant lubrication is ensured by a special high-temperature grease within the pin/bushing area, further enhancing longevity. High-carbon alloy pins and increased roller thickness contribute to enhanced durability, while thicker outer plates and quad-riveting provide superior tensile strength, rated at 36 kN (8091 lb). All components are shot-peened for maximum fatigue resistance and pre-loaded to minimize adjustment. This gold Regina 520 Quad Drive Chain is suitable for ATVs with up to 500cc engine displacement and manufactured in Italy to the highest standards. Get the ultimate ATV chain for relentless performance.
Features & highlights
- Patented Z44 sealing rings enhance performance and extend chain life.
- 50% friction reduction compared to traditional O-ring chains for optimized power transfer.
- High-carbon alloy pins and increased roller thickness for superior durability.
- Thicker outer plates and quad-riveting provide a tensile strength of 36 kN (8091 lb).
- Shot-peened components maximize fatigue resistance for long-lasting performance.
- Pre-loaded chain minimizes adjustments and ensures consistent performance.
- Ideal for ATVs up to 500cc.

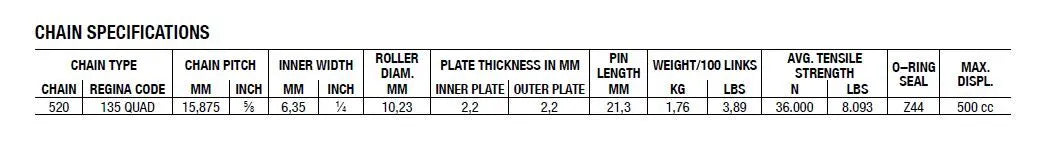

Technical specifications
- Brand: Regina
- MPN: 12240075
- Chain Size: 520
- Chain Type: 520 QUAD
- Color: Gold, Steel
- Master Link Connector Type: Clip
- Material: Steel
- Maximum Engine Displacement (Offroad): 500 cc
- Number of Links: 116
- Seal Type: Z-Ring
- Tensile Strength: 36 kN (8091 lb)
- Weight: 1.76 kg/100 Links
- Made in Italy
Important to know
Press fit clip link is included.
- Brand
- REGINA
- Vendor part number
- 135QUAD/008
- Color finish
- Gold, Steel
- Product name
- Drive Chain
- Weight
- 1,76 kg/100 Links
- Tensile strength
- 36 kN (8091 lb)
- Seal type
- Z-Ring
- Number of links
- 116
- Material
- Steel
- Master link connector type
- Clip
- Chain type
- 520 QUAD
- Chain size
- 520
- Type
- Chain
- Units
- Each
