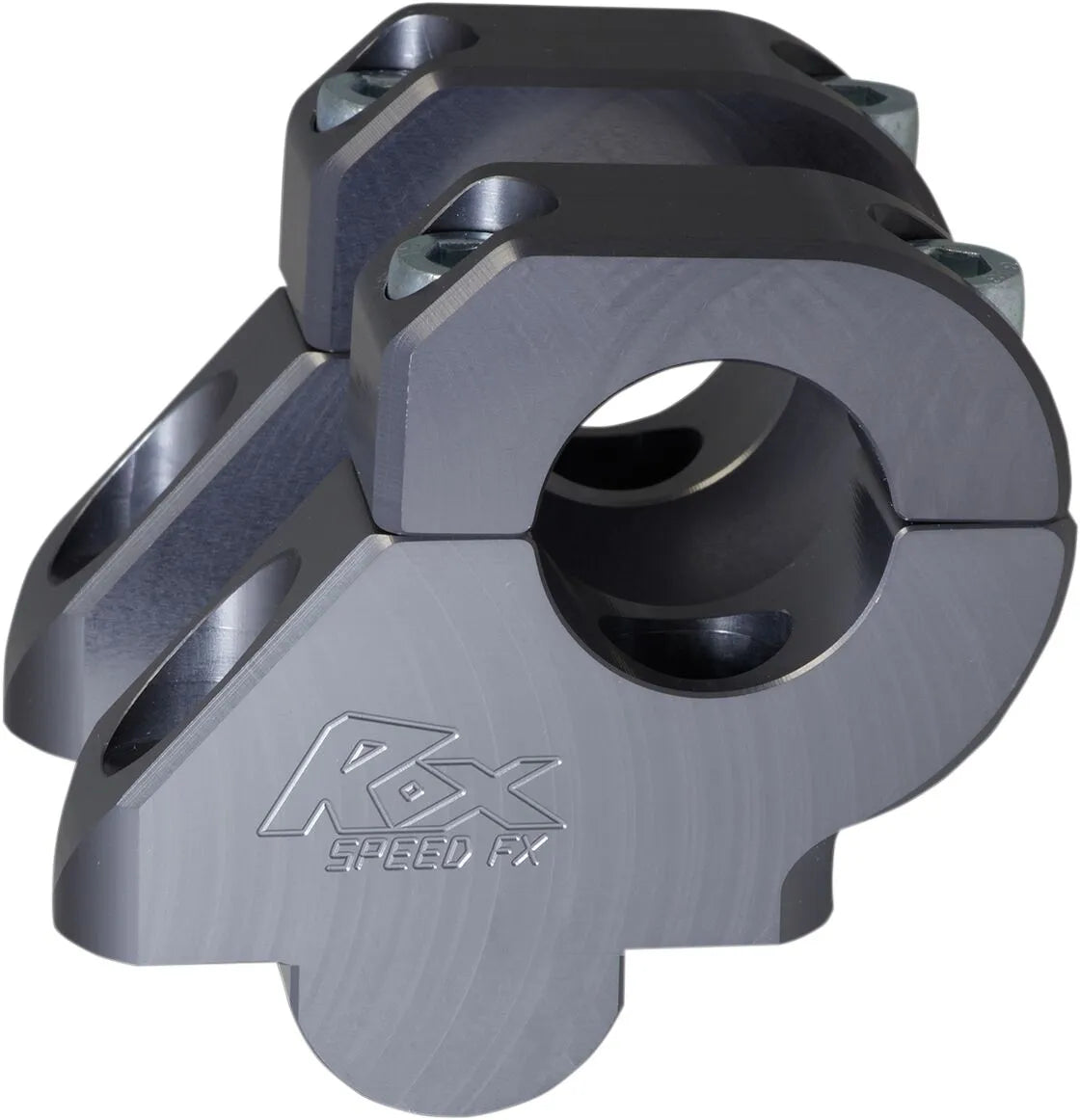

Rox Speed FX Barback Risers - 1-1/2" Rise 1" Pullback - Machine Finish
Product info
- Item number
- 06020905
- Manufacturer number
- 3R-B17R-15G
- Position
Enhance your riding experience with the Rox Speed Fx 1-1/2" Barback Risers, designed for motorcycles with 1-1/8" handlebars. These risers allow you to customize your handlebar position for optimal comfort and control, reducing strain and improving your overall riding posture. Crafted from high-quality materials and made in the USA, these risers are built for durability and performance.
Description
The Rox Speed Fx Barback Risers let you reposition your handlebars 1-1/2" upward and 1" back or forward from the stock location. Install them facing either direction to fine-tune your riding position. Machined from robust 6061-T6 aircraft-grade billet aluminum, these risers provide exceptional strength and a sleek, factory look with an engraved Rox logo. The included step shims ensure seamless mounting to OEM step-down triple clamps. These risers dramatically improve rider comfort, especially on long journeys, and provide better handling and control. Installation is straightforward with included hardware and instructions. Ensure your motorcycle has sufficient cable and brake line length before installation.
Features & highlights
- Customize handlebar position: Move bars 1-1/2" up and 1" back or forward.
- Superior Material: Machined from 6061-T6 aircraft-grade billet aluminum for maximum strength and durability.
- Clean Aesthetic: Features an engraved Rox logo for a refined, factory-style appearance.
- Easy Installation: Includes step shims for mounting to OEM step-down triple clamps, along with all necessary hardware and instructions.
- Made in the USA: Ensures high-quality craftsmanship and materials.
Technical specifications
- Brand: ROX SPEED FX
- Vendor Part Number: 3R-B17R-15G
- Base Color: Gray
- Clamping Diameter: 1-1/8" (28.6 mm)
- Color/Finish: Gray
- Material: 6061-T6 Aluminum
- Product Name: Riser
- Pullback: 1" (25.4 mm)
- Rise: 1-1/2" (38.1 mm)
- Type: Handlebar
- Units: Pair
Important to know
- Ensure your motorcycle has adequate cable and brake line length before installing.
- These risers cannot be installed on bikes with angled (e.g., V-Shaped) OEM bar clamps. OEM Bar clamps must be parallel and sized for M8 bolts for proper mounting.
- These risers will not work on the Triumph Tiger.
- Brand
- ROX SPEED FX
- Vendor part number
- 3R-B17R-15G
- Product name
- Riser
- Pullback
- 25,4 mm (1")
- Rise
- 38,1 mm (1-1/2")
- Clamping diameter
- 28,6 mm (1-1/8")
- Material
- 6061-T6 Aluminum
- Type
- Handlebar
- Base color
- Gray
- Units
- Pair
