S&S Cycle Twin Cam Sidewinder Valve Spring Kit - .650" Lift - 106-5909
Product info
- Item number
- 09262069
- Manufacturer number
- 106-5909
- Position
Upgrade your engine's performance with the S&S Cycle 0.650" Sidewinder Valve Spring Kit. This kit is designed to provide enhanced valve control and stability, allowing for higher RPMs and increased power output. Manufactured in the USA, this kit ensures top-notch quality and reliability.
Description

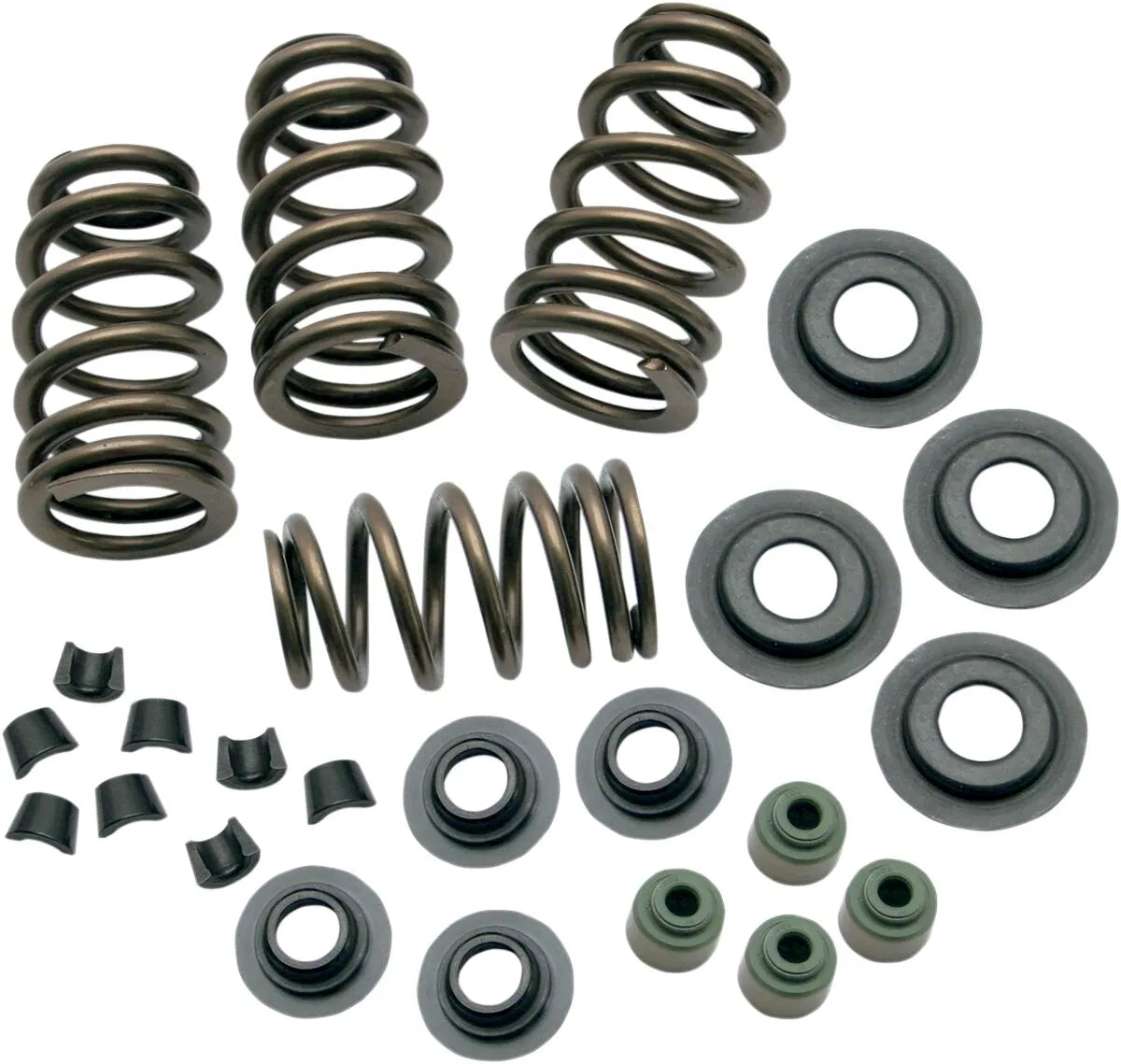

The S&S Cycle Sidewinder Valve Spring Kit is engineered for valve lifts up to 0.650". It includes springs, upper and lower collars, and keys, providing everything you need for a complete installation. With an installed height of 1.860" and a seat pressure of 178 lbs., these springs deliver optimal performance and durability. At maximum lift, the spring pressure reaches 376 lbs., ensuring consistent valve control even under demanding conditions. This kit is designed to support engines running up to 6500 RPM, making it an excellent choice for high-performance builds. Trust S&S Cycle's reputation for quality and precision to enhance your engine's capabilities.
Features & highlights
- Optimized for valve lifts up to 0.650" for improved performance.
- Includes all necessary components: springs, upper and lower collars, and keys.
- Provides enhanced valve control and stability at high RPMs.
- Features an installed height of 1.860" with 178 lbs. seat pressure.
- Capable of handling up to 6500 RPM, perfect for performance engines.
- Manufactured in the USA, ensuring superior quality and reliability.
- Experience increased power output and improved engine efficiency.
Technical specifications
- Brand: S&S Cycle
- Part Number: 09262069
- Application: Exhaust, Intake
- Product Name: Spring Kit
- Spring Lift: 0.650"
- Spring Open Pressure: 376 lb
- Spring Seat Pressure: 178 lb
- Type: Valve
Important to know
Ensure compatibility with your specific engine model before installation. Professional installation is recommended for optimal performance.
- Brand
- S&S CYCLE
- Vendor part number
- 106-5909
- Product name
- Spring Kit
- Spring open pressure
- 376 lb
- Spring seat pressure
- 178 lb
- Spring lift
- 0.650"
- Application
- Exhaust, Intake
- Type
- Valve
- Units
- Kit
