S&S Cycle Twin Cam 510C Camshaft Kit - 106-4380
Product info
- Item number
- 09250346
- Manufacturer number
- 106-4380
- Position
Upgrade your Harley-Davidson's performance with the S&S Cycle 510C Camshaft Kit. This bolt-in camshaft kit is designed to boost your engine's power and torque, providing a significant improvement in the 3000-5500 RPM range. Made in the USA, this kit offers reliability and performance you can trust.
Description
The S&S Cycle 510C Camshaft Kit is engineered to deliver a noticeable performance enhancement for 88", 95", 96", and 103" cubic inch engines. Designed as a bolt-in solution, it eliminates the need for extensive modifications, making installation straightforward. It works optimally with engines having compression ratios below 9.7:1, using stock pushrods and valve springs. Experience a substantial increase in power and improved throttle response, especially within the 3000-5500 RPM range. This camshaft kit is ideal for riders looking for a reliable and effective upgrade to their motorcycle's performance. The S&S Cycle 510C camshaft provides improved torque and horsepower where you need it most, giving you the edge on the road.
Features & highlights
- Bolt-in camshaft for easy installation in 88", 95", 96", and 103" CID engines.
- Optimized for engines with compression ratios below 9.7:1.
- Provides a significant power increase in the 3000-5500 RPM range.
- Compatible with stock pushrods and valve springs, simplifying installation.

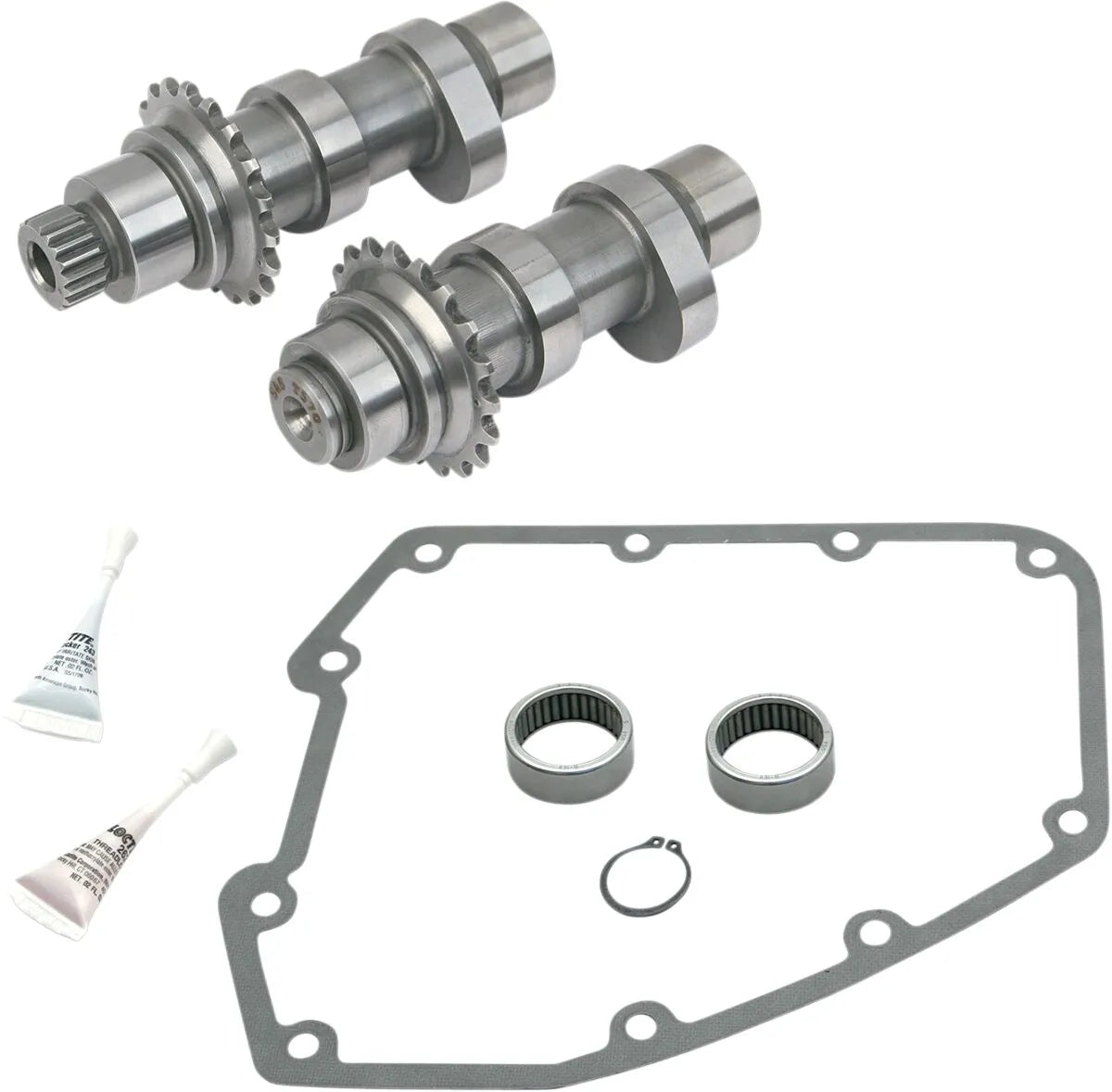

- Includes all necessary components for installation: cams, gasket, bearings, etc.
- Made in the USA, ensuring high-quality and reliability.
Technical specifications
- Brand: S&S Cycle
- Product Name: Camshaft Kit
- Grind: 510 Series
- Type: Chain
- Intake Open: 20°
- Intake Close: 38°
- Intake Duration: 238°
- Intake Lift: 0.510"
- Intake Lift at TDC: 0.187"
- Intake Lobe Centerline: 99°
- Exhaust Open: 52°
- Exhaust Close: 20°
- Exhaust Duration: 252°
- Exhaust Lift: 0.510"
- Exhaust Lift at TDC: 0.178"
- Exhaust Lobe Centerline: 106°
Important to know
This kit is designed for engines with compression ratios below 9.7:1. Ensure compatibility with your engine's specifications before installation.
- Brand
- S&S CYCLE
- Vendor part number
- 106-4380
- Product name
- Camshaft Kit
- Intake open
- 20°
- Intake lift at tdc
- 0,187"
- Intake lobe centerline
- 99°
- Intake lift
- 0,510"
- Intake duration
- 238°
- Intake close
- 38°
- Grind
- 510 Series
- Exhaust open
- 52°
- Exhaust lift at tdc
- 0,178"
- Exhaust lobe centerline
- 106°
- Exhaust lift
- 0,510"
- Exhaust duration
- 252°
- Exhaust close
- 20°
- Application
- Exhaust, Intake
- Type
- Chain
- Units
- Kit
