S&s Cycle Cam Chest Kit For M8 - High Performance

Upgrade your Milwaukee-Eight engine with the S&S Cycle Cam Chest Kit, designed for superior performance and reliability. This comprehensive kit replaces your stock components with high-quality, precision-engineered parts, ensuring improved cam timing accuracy and eliminating the weak points of the factory system. Experience enhanced power and durability with this all-in-one solution from S&S Cycle.

Description

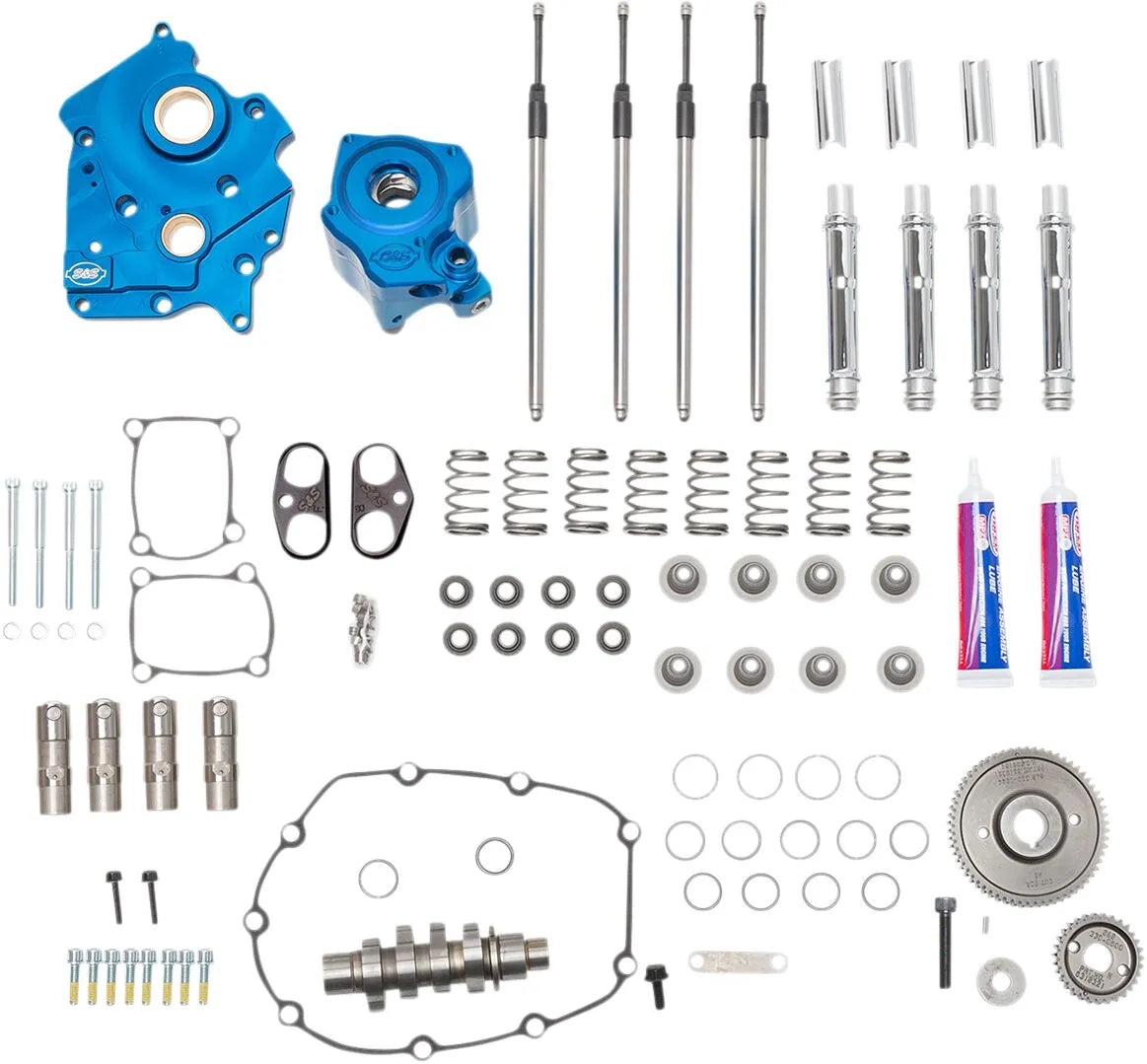

The S&S Cycle Cam Chest Kit for M8 engines is a complete solution for upgrading your valvetrain. The oil pump and cam plate are precision-machined from billet aluminum and feature a blue anodized finish for durability and style. Independent scavenge sections for the flywheel cavity and cam chest, along with debris screens, ensure optimal oil flow and engine cleanliness. The adjustable pressure relief valve allows for fine-tuning while the engine is installed. S&S Quickee pushrods with finished pushrod tubes and premium tappets provide improved stability, especially in high-lift and high-rpm applications. Billet aluminum tappet cuffs with a hard-anodized black coating further enhance tappet stability and prevent distortion. This kit not only improves performance but also provides increased cam timing accuracy by eliminating the stock cam chain tensioner. All necessary gaskets, bearings, and hardware are included for a straightforward installation.

Features & highlights

• Precision-machined billet aluminum oil pump and cam plate with blue anodized finish.
• Independent scavenge sections and debris screens for optimal oil management and engine cleanliness.
• Adjustable pressure relief valve allows for easy fine-tuning.
• S&S Quickee pushrods and premium tappets enhance valvetrain stability.
• Billet aluminum tappet cuffs prevent distortion and improve tappet stability.
• Eliminates stock cam chain tensioner for improved cam timing accuracy.
• Complete kit includes all necessary gaskets, bearings, and hardware.

Technical specifications

• Brand: S&S Cycle
• Product Name: Cam Chest Kit
• Application: Water Cooled
• Type: Gear
• Exhaust Lift: 0.550"
• Intake Lift: 0.550"
• Grind: 550G
• Features: Chrome Pushrod Tubes
• Exhaust Close: 30.5° Front, 38.4° Rear
• Exhaust Duration: 273.1° Front, 277.8° Rear
• Exhaust Lift at TDC: 0.232" Front, 0.264" Rear
• Exhaust Lobe Centerline: 106.0° Front, 100.5° Rear
• Exhaust Open: 62.5° Front, 59.4° Rear
• Intake Close: 29.4° Front, 31.1° Rear
• Intake Duration: 218.9° Front, 214.2° Rear
• Intake Lift at TDC: 0.127" Front, 0.099" Rear
• Intake Lobe Centerline: 100.0° Front, 104.0° Rear
• Intake Open: 9.4° Front, 3.1° Rear

Important to know

This kit is designed for Milwaukee-Eight engines. Ensure proper installation by a qualified technician. Please refer to the service manual for detailed instructions and torque specifications.
