S&S Cycle M8 540C Cam Chest Kit - 310-1116A

Upgrade your Milwaukee-Eight engine with the S&S Cycle Cam Chest Kit, designed for performance and reliability. This comprehensive kit provides everything needed to enhance your engine's cam chest, improving oil flow, tappet stability, and overall durability. Experience smoother operation and increased power with this all-in-one solution.

Description

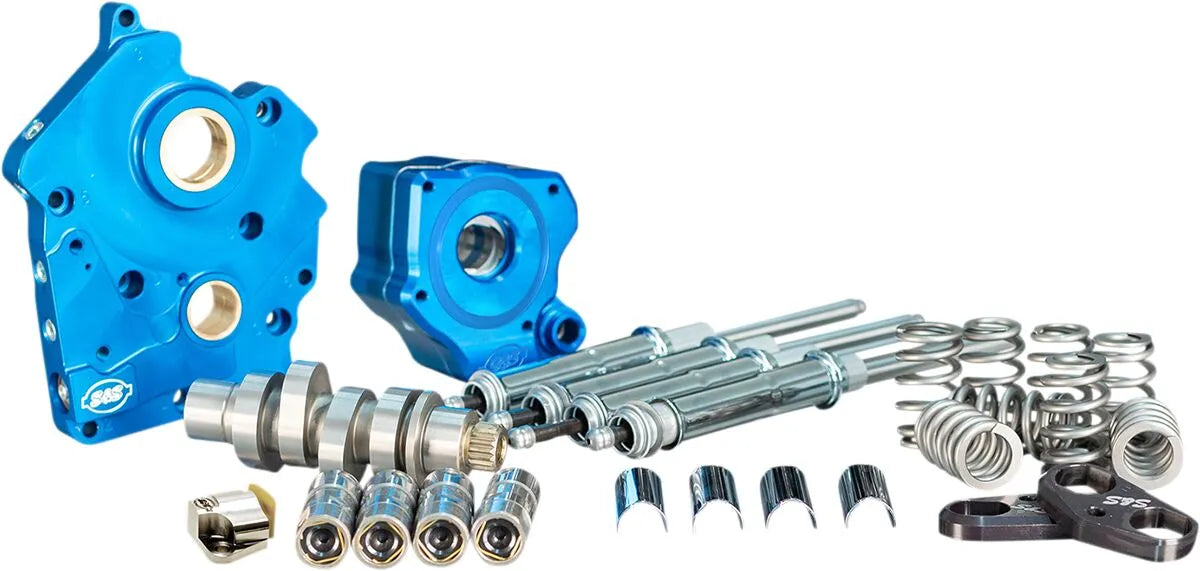

The S&S Cycle Cam Chest Kit for M8 engines is engineered to optimize oil circulation and maintain consistent pressure. The billet aluminum oil pump and cam plate feature independent scavenge sections for the flywheel cavity and cam chest, ensuring efficient oil removal. Debris screens and a strategically placed magnet prevent contaminants from entering the oil pump, safeguarding critical components. The adjustable pressure relief valve allows for fine-tuning while installed. Paired with S&S precision tappets, Quickee pushrods and billet aluminum tappet cuffs which further enhance stability, especially at high RPMs. This kit is designed for easy installation and is proudly made in the USA, guaranteeing top-tier quality and performance.

Features & highlights

• Precision-machined billet aluminum oil pump and cam plate for superior durability.
• Independent scavenge sections optimize oil removal from the flywheel cavity and cam chest.
• Debris screens and magnet protect the oil pump from harmful contaminants.
• Adjustable pressure relief valve allows fine-tuning of oil pressure.
• Includes S&S high-performance cam chain tensioner for reliable valve timing.
• Billet aluminum tappet cuffs enhance tappet stability, especially at high RPM.

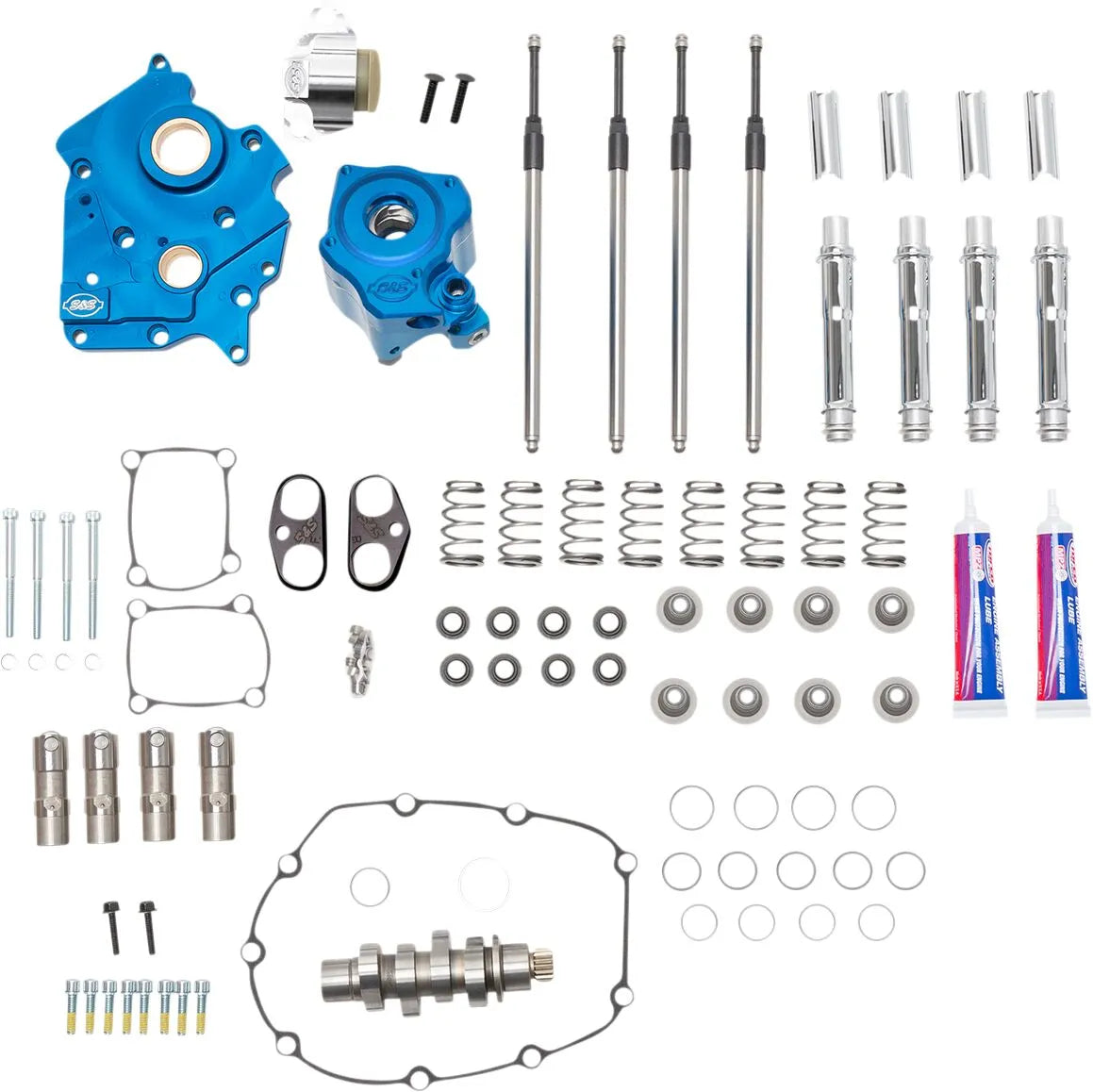

• Complete kit includes all necessary gaskets, bearings, and hardware for installation.

Technical specifications

• Brand: S&S Cycle
• Product Name: Cam Chest Kit
• Application: Water Cooled
• Cam Grind: 540C
• Type: Chain
• Intake Open: 17.7° Front, 14.9° Rear
• Intake Close: 30.6° Front, 28.7° Rear
• Intake Duration: 228.3° Front, 223.6° Rear
• Intake Lift: 0.540"
• Intake Lift at TDC: 0.175" Front, 0.161" Rear
• Intake Lobe Centerline: 96.4° Front, 96.9° Rear
• Exhaust Open: 21.2° Front, 37.7° Rear
• Exhaust Close: 33.9° Front, 26.9° Rear
• Exhaust Duration: 235.1° Front, 244.6° Rear
• Exhaust Lift: 0.540"
• Exhaust Lift at TDC: 0.262" Front, 0.216" Rear
• Exhaust Lobe Centerline: 83.6° Front, 95.4° Rear

Important to know

Ensure proper installation by a qualified technician. Verify compatibility with your specific Milwaukee-Eight engine model before installation.
