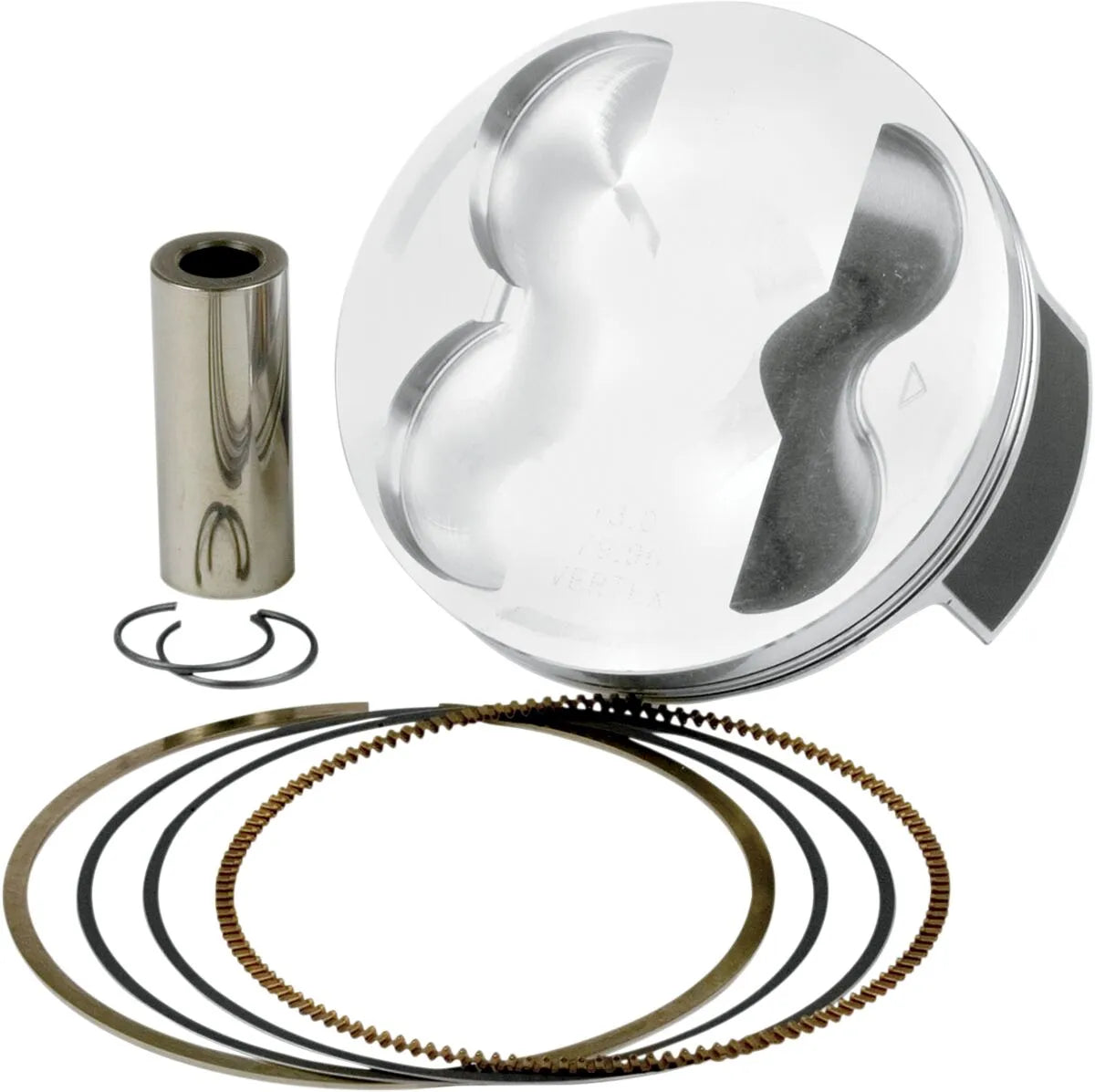

Vertex Top End Piston Kit - 78mm Bore - 250cc - Size B - VTKTC24097B
Product info
- Item number
- 09104480
- Manufacturer number
- VTKTC24097B
- Position
Upgrade your engine's performance and reliability with the Vertex Top End Piston Kit. This kit features a forged replica piston designed to meet or exceed OEM specifications, ensuring optimal fit and function. Experience enhanced durability and performance with this premium piston kit.
Description
The Vertex Top End Piston Kit delivers exceptional performance and longevity. Forged from 2618 aluminum, these pistons offer superior strength and durability compared to cast pistons. Each piston undergoes a T-5 heat treatment, hardening and tempering cycle to further enhance its structural integrity. The piston skirt is coated with a Molybdenum Disulphite coating, reducing friction for faster break-in and extended piston life. This kit is designed as an OE replacement, guaranteeing compatibility and reliable performance. Specifically designed for 250cc 4-stroke engines with a 78.00 mm bore, it ensures a precise fit and optimal compression. Invest in Vertex for unmatched quality and performance.
Features & highlights
- Forged from high-strength 2618 aluminum alloy for superior durability.
- Molybdenum Disulphite coated skirt reduces friction and improves break-in.
- T-5 heat treatment enhances piston strength and longevity.
- Designed as a direct OE replacement for easy installation.
- Includes all necessary components for a complete top-end rebuild.
- Optimized for 250cc 4-stroke engines.
- Nitride coated and steel rings provide excellent sealing.
Technical specifications
- Brand: Vertex
- Product Name: Piston Kit
- Piston Material: Forged Aluminum Alloy
- Displacement: 250cc
- Engine Type: 4-Stroke
- Bore Size: 78.00 mm
- Piston Diameter: 77.97 mm
- Piston Size: Standard Size B
- Compression Ratio: 14.4:1
- Ring Material: Nitride Coated, Steel
- Skirt Coating: Moly Coated
Important to know
This top end piston kit includes the piston, rings, wrist pin, circlips, and top end gaskets needed for installation.
- Brand
- VERTEX
- Vendor part number
- VTKTC24097B
- Product name
- Piston Kit
- Bore size
- 78,00 mm
- Compression ratio
- 14,4:1
- Displacement
- 250 cc
- Piston material
- Aluminum Alloy, Forged
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size B
- Piston diameter
- 77,97 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
