Vertex Cast Big Bore Piston Kit - 72mm Bore - 295cc - Size A - 24079A
Product info
- Item number
- 09104073
- Manufacturer number
- 24079A
- Position
Upgrade your engine's performance with the Vertex 295cc Big Bore Piston Kit. This kit provides a significant boost in displacement, torque, and peak horsepower, offering an enhanced riding experience.
Description

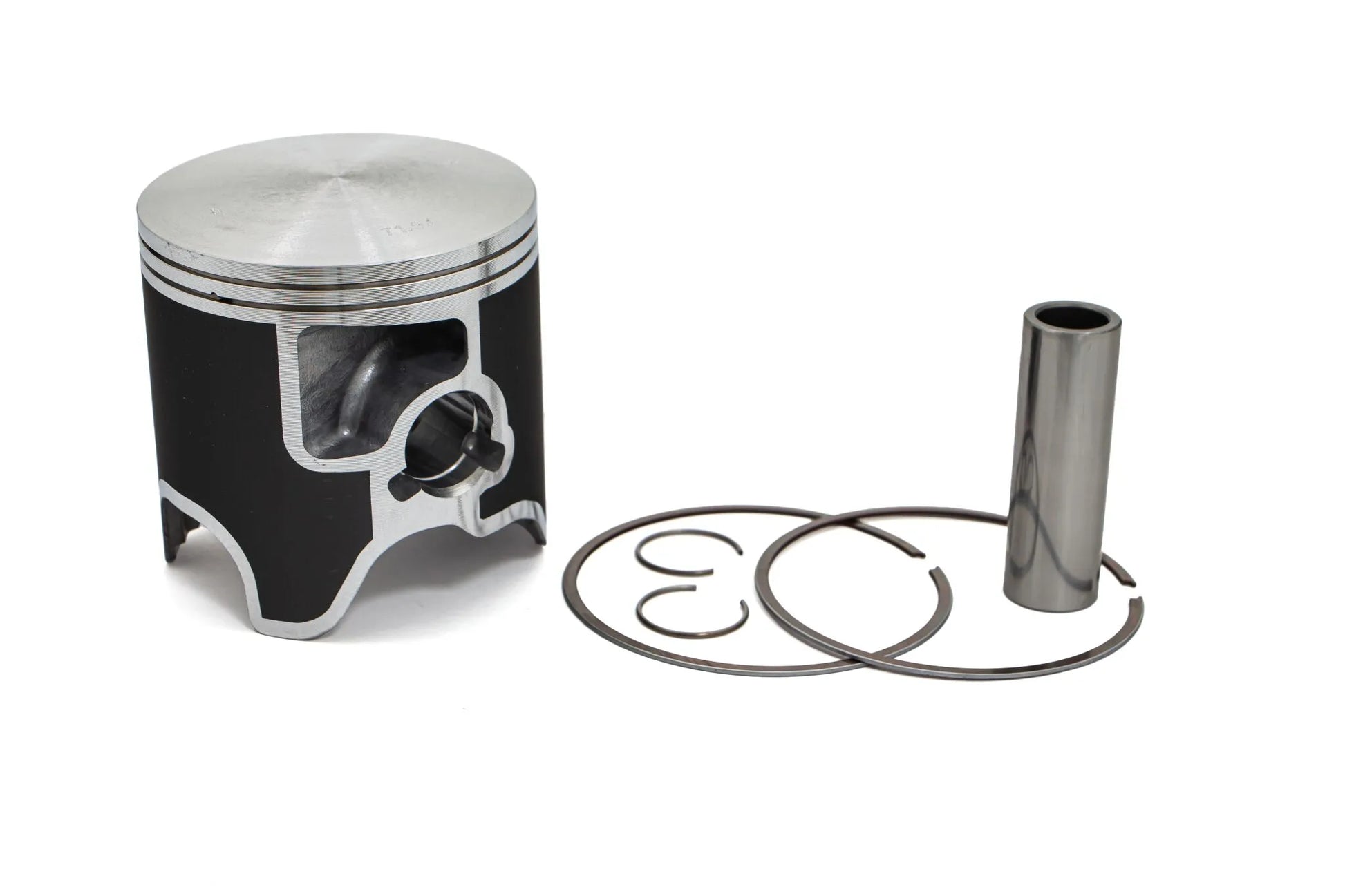

The Vertex Big Bore Piston Kit features a cast piston designed to fit big bore cylinders. Constructed from gravity-cast aluminum alloy with an 18% silicone content, this piston achieves an optimal balance of lightweight design and exceptional strength. Each piston undergoes a T-5 hardening and tempering cycle to ensure durability and reliability under demanding conditions. The piston skirt is coated with a high-tech Molybdenum Disulphide coating, promoting faster break-in times and extending the overall lifespan of the piston. Unleash the full potential of your 2-stroke engine with this premium piston kit, designed for enthusiasts and professionals alike.
Features & highlights
- Increases engine's displacement, torque, and peak horsepower for improved performance.
- Cast from gravity-cast aluminum alloy with 18% silicone for a light, strong piston.
- Features a T-5 hardening and tempering cycle for enhanced durability.
- Piston skirt is coated with Molybdenum Disulphide for faster break-in and increased piston life.
- Designed as a direct OE form replacement for big bore cylinders.
- Steel, nitride-coated rings provide optimal sealing and performance.
Technical specifications
- Brand: Vertex
- Part Number: 09104073
- Engine Type: 2-Stroke
- Displacement: 295 cc
- Bore Size: 72.00 mm
- Piston Diameter: 71.94 mm
- Piston Material: Cast Aluminum Alloy
- Piston Size: Standard Size A
- Compression Ratio: Standard
- Ring Material: Nitride Coated, Steel
- Skirt Coating: Moly Coated
Important to know
Two-stroke piston rings are sold individually. Four-stroke piston rings are sold as a set.
- Brand
- VERTEX
- Vendor part number
- 24079A
- Product name
- Piston Kit
- Bore size
- 72,00 mm
- Compression ratio
- Standard
- Displacement
- 295 cc
- Piston material
- Aluminum Alloy, Cast
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size A
- Piston diameter
- 71,94 mm
- Skirt coating
- Moly Coated
- Engine type
- 2-Stroke
- Units
- Kit
