Vertex Forged Replica Piston Kit - 96mm Bore - 450cc - Size A - 23855A
Product info
- Item number
- 09103206
- Manufacturer number
- 23855A
- Position
Upgrade your four-stroke engine with the Vertex Forged Replica Piston Kit. Designed as an OE replacement, this kit provides superior strength and durability compared to standard cast pistons. Experience improved performance and longevity with this high-quality piston kit.
Description
The Vertex Forged Replica Piston Kit is engineered to deliver exceptional performance and reliability. Forged from 2618 aluminum alloy, these pistons offer superior strength and durability. Each piston undergoes a T-5 heat treatment, hardening and tempering process. The piston skirts feature a high-tech Molybdenum Disulphide coating, ensuring faster break-in times and significantly increased piston life. This kit is an ideal OE replacement, offering seamless compatibility and enhanced performance for your 450cc four-stroke engine. All rings included in the kit are OEM replacements. The Vertex piston kit offers improved performance and reliability. Optimize your engine's potential with this premium forged piston kit!
Features & highlights
- Forged from high-strength 2618 aluminum alloy for superior durability.
- T-5 heat treatment provides enhanced hardness and wear resistance.
- Molybdenum Disulphide coated skirts reduce friction and improve break-in.
- Designed as a direct OE replacement for easy installation.

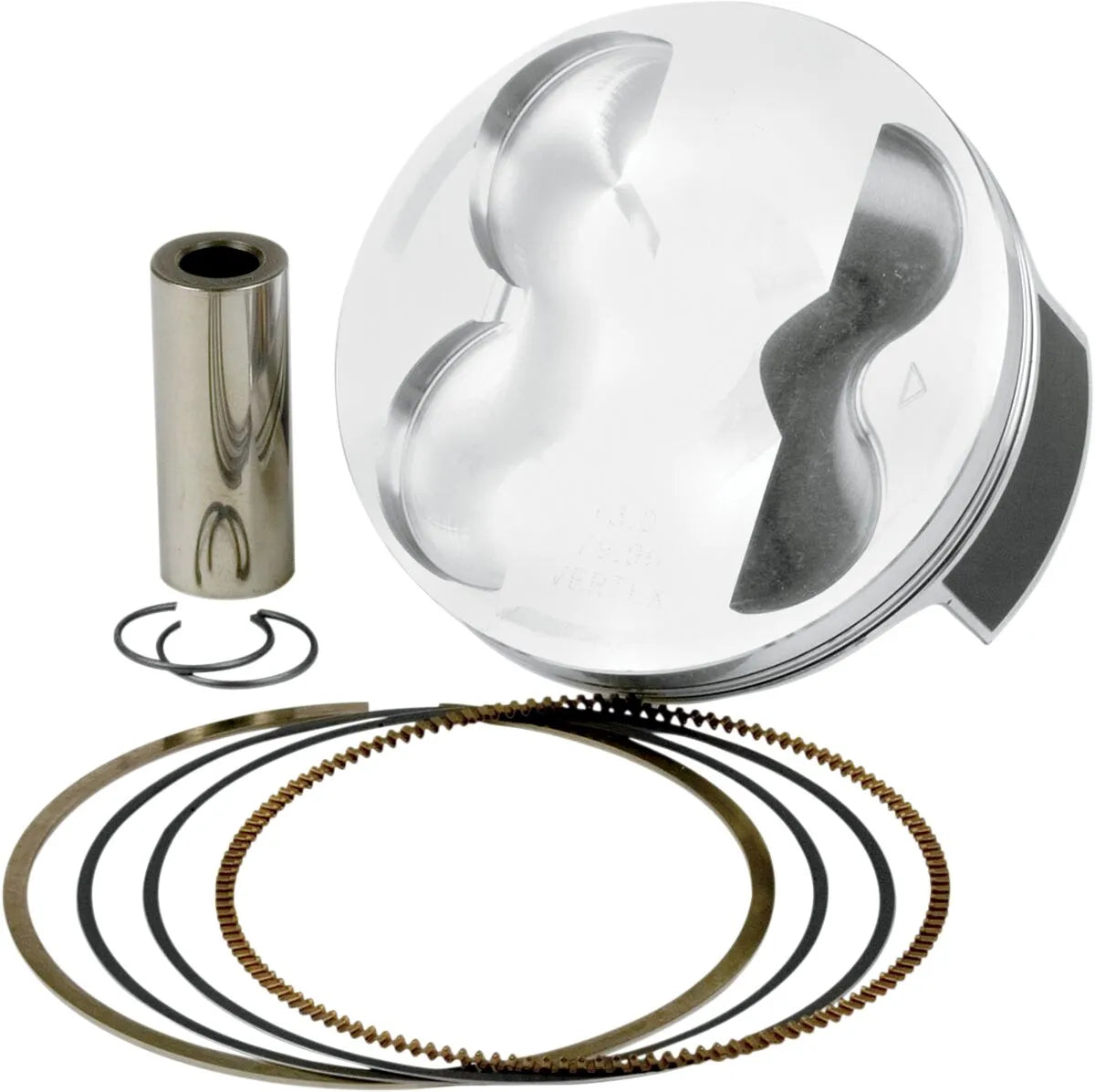

- Kit includes piston, rings, wrist pin, and circlips for a complete rebuild.
- Optimized for 450cc 4-stroke engines, boosting overall performance.
- Provides improved heat dissipation and resistance to deformation under high stress.
Technical specifications
- Brand: Vertex
- Piston Material: Forged Aluminum Alloy
- Bore Size: 96.00 mm
- Piston Diameter: 95.95 mm
- Displacement: 450cc
- Compression Ratio: 12.5:1
- Engine Type: 4-Stroke
- Piston Size: Standard Size A
- Ring Material: Nitride Coated, Steel
- Skirt Coating: Moly Coated
- Units: Kit
Important to know
Ensure proper installation by a qualified technician. Verify correct piston-to-cylinder clearance before use.
- Brand
- VERTEX
- Vendor part number
- 23855A
- Product name
- Piston Kit
- Bore size
- 96,00 mm
- Compression ratio
- 12,5:1
- Displacement
- 450 cc
- Piston material
- Aluminum Alloy, Forged
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size A
- Piston diameter
- 95,95 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
