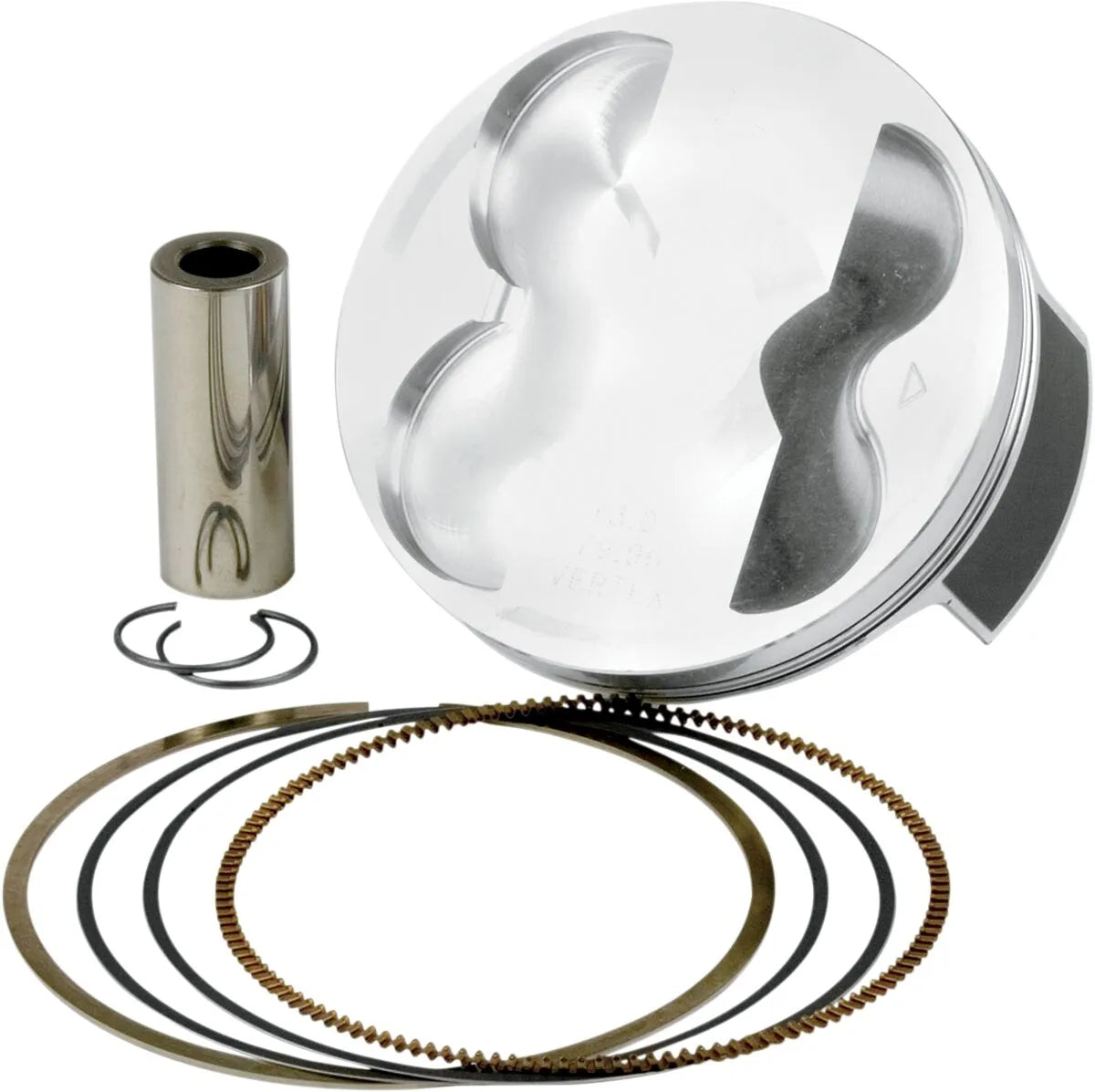

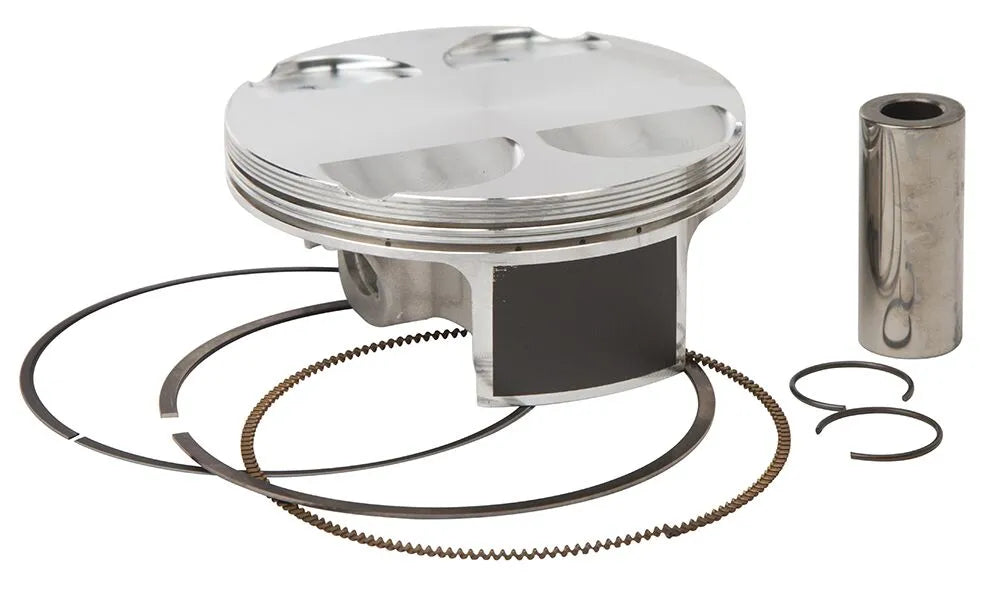

Vertex Forged Replica Piston Kit - 96mm Bore - 450cc - Size A - 23863A
Product info
- Item number
- 09103236
- Manufacturer number
- 23863A
- Position
Upgrade your engine's performance and reliability with the Vertex Forged Replica Piston Kit. Designed as an OE replacement, this kit delivers exceptional strength and durability. Experience improved break-in time and extended piston life, ensuring your engine operates at its peak for longer.
Description
The Vertex Forged Replica Piston Kit is engineered for enthusiasts and professionals seeking superior engine components. Each piston is forged from high-quality 2618 aluminum, known for its exceptional strength and resistance to wear. The pistons undergo a T-5 heat treatment, hardening and tempering process, further enhancing their durability. The piston skirts feature a Molybdenum Disulphite coating, which reduces friction, promoting faster break-in and extending piston life. This 450cc piston kit ensures optimal performance and reliability, making it an ideal choice for demanding applications. Restore your engine to its original specifications with this OEM replacement piston.
Features & highlights
- Forged from 2618 aluminum alloy for superior strength and durability.
- T-5 heat treatment provides exceptional hardness and wear resistance.
- Molybdenum Disulphite coated skirts reduce friction and improve break-in.
- Designed as a direct OE replacement for easy installation.
- Includes piston, rings, wrist pin, and circlips for a complete rebuild.
- Nitride coated steel rings offer excellent sealing and longevity.
Technical specifications
- Brand: Vertex
- Piston Material: Forged Aluminum Alloy
- Displacement: 450cc
- Bore Size: 96.00 mm
- Piston Diameter: 95.96 mm
- Compression Ratio: 12.5:1
- Piston Size: Standard Size A
- Ring Material: Nitride Coated Steel
- Skirt Coating: Moly Coated
- Engine Type: 4-Stroke
- Units: Kit
Important to know
- Two-stroke piston rings are sold individually.
- Four-stroke piston rings are sold as a set.
- Brand
- VERTEX
- Vendor part number
- 23863A
- Product name
- Piston Kit
- Bore size
- 96,00 mm
- Compression ratio
- 12,5:1
- Displacement
- 450 cc
- Piston material
- Aluminum Alloy, Forged
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size A
- Piston diameter
- 95,96 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
