Vertex Cast Piston Kit - 100.45mm Bore - 660cc - +0.50mm - 23104050
Product info
- Item number
- 09101091
- Manufacturer number
- 23104050
- Position
Maximize your 4-stroke engine's performance with the Vertex Cast Replica Piston Kit. Crafted for durability and optimal function, this kit provides a reliable and efficient solution for your engine rebuild. Get your motorcycle back on the road or track with improved power and longevity.
Description
The Vertex Cast Replica Piston Kit for 4-stroke engines is engineered for superior performance and extended engine life. This piston is constructed from gravity-cast aluminum alloy with an 18% silicone content, ensuring exceptional strength and heat resistance. The piston undergoes a T-5 hardening and tempering cycle, further enhancing its durability. The piston skirt features a high-tech Molybdenum Disulphide coating, which promotes faster break-in times and reduces friction. Designed as an OE replacement, this kit provides a cost-effective solution without compromising quality. With a 660cc displacement and a 9.1:1 compression ratio, this piston kit ensures optimal engine output.
Features & highlights
- Gravity-cast aluminum alloy with 18% silicone content for superior strength.
- T-5 heat treatment enhances durability and extends piston life.
- Molybdenum Disulphide coated skirt reduces friction and speeds up break-in.
- Designed as a direct OE replacement for easy installation.

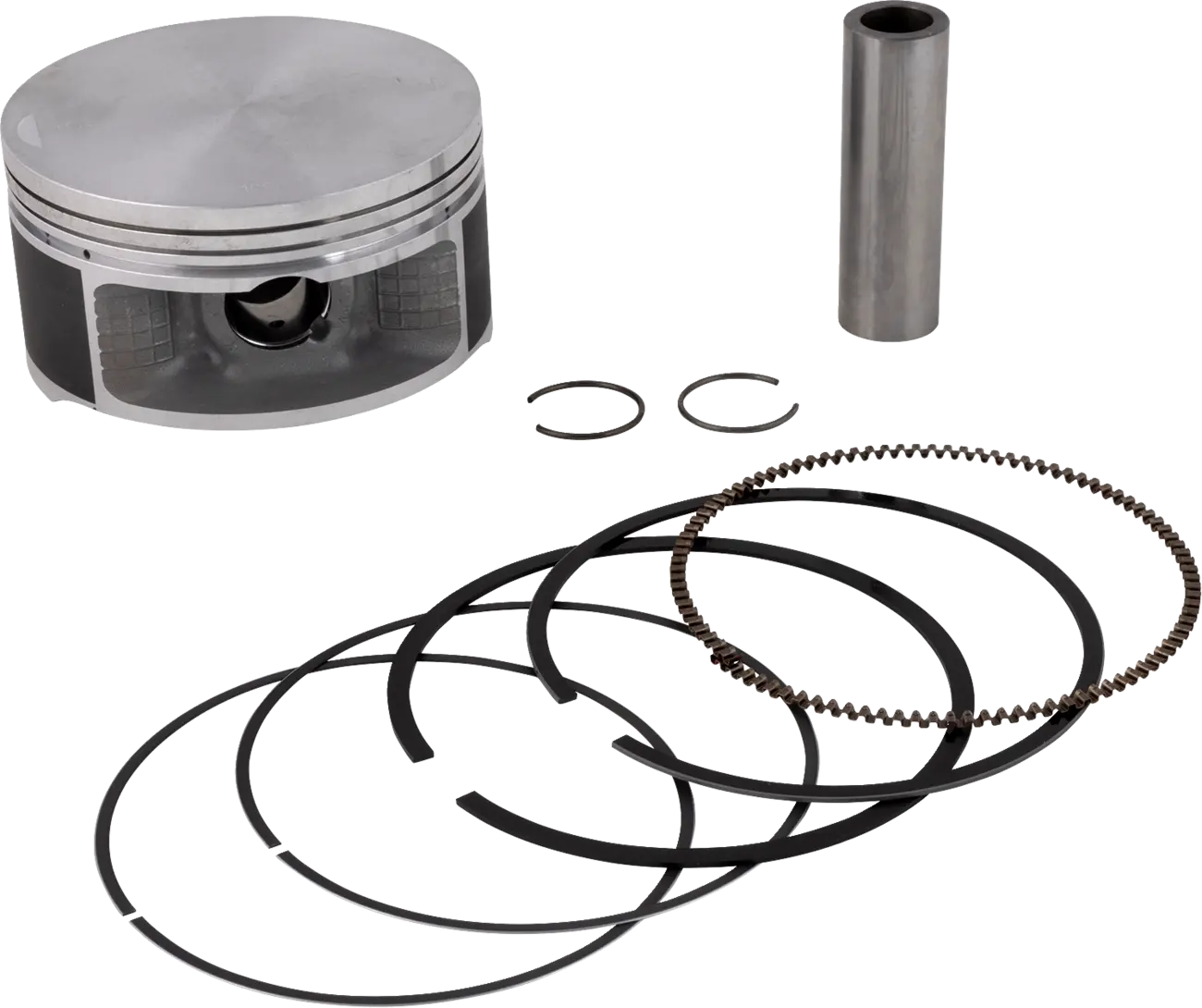

- Complete kit includes piston, rings, wrist pin, and circlips.
- Optimized for 4-stroke engines.
- Provides improved performance and reliability.
Technical specifications
- Brand: Vertex
- Product Name: Piston Kit
- Engine Type: 4-Stroke
- Displacement: 660 cc
- Cylinder Diameter: 100.50 mm
- Piston Diameter: 100.45 mm
- Bore - Oversize: +0.50 mm
- Compression Ratio: 9.1:1
- Piston Material: Cast Aluminum Alloy
- Skirt Coating: Molybdenum Disulphide
Important to know
This kit includes the piston, rings, wrist pin, and circlips. Professional installation is recommended to ensure proper fitment and performance.
- Brand
- VERTEX
- Vendor part number
- 23104050
- Product name
- Piston Kit
- Compression ratio
- 9.1:1
- Displacement
- 660 cc
- Piston material
- Aluminum Alloy, Cast
- Cylinder diameter
- 100.50 mm
- Piston diameter
- 100.45 mm
- Skirt coating
- Molybdenum Disulphite
- Engine type
- 4-Stroke
- Units
- Kit
