Vertex Top End Piston Kit - 48.50mm Bore - 85cc - Size C - VTK23637C-1
Product info
- Item number
- 09104372
- Manufacturer number
- VTK23637C-1
- Position
Maximize the performance and longevity of your 85cc 2-stroke engine with the Vertex Top End Piston Kit. This kit provides all the necessary components for a complete piston replacement, ensuring optimal compression and power. Crafted with precision and designed for durability, the Vertex piston kit delivers exceptional value and performance.
Description
The Vertex Top End Piston Kit features a replica cast piston, meticulously crafted to match original equipment specifications. Constructed from gravity-cast aluminum alloy with an 18% silicone content, this piston offers an ideal balance of lightweight design and robust strength. Each piston undergoes a T-5 hardening and tempering cycle, enhancing its structural integrity and resistance to wear. The piston skirt is coated with a high-tech Molybdenum Disulphide coating, promoting faster break-in times and significantly extending piston life. This comprehensive kit includes the piston, rings, wrist pin, circlips, and top-end gaskets, providing everything needed for a seamless installation. Upgrade your engine with Vertex and experience enhanced reliability and performance. Specifically designed for 85cc 2-stroke engines.
Features & highlights
- Replica cast piston replicates original OE form for precise fit and function.
- T-5 heat-treated piston enhances strength and durability for extended life.
- Molybdenum Disulphide coated piston skirt reduces friction and enables faster break-in.
- Gravity-cast aluminum alloy with 18% silicone content provides a light and strong piston.

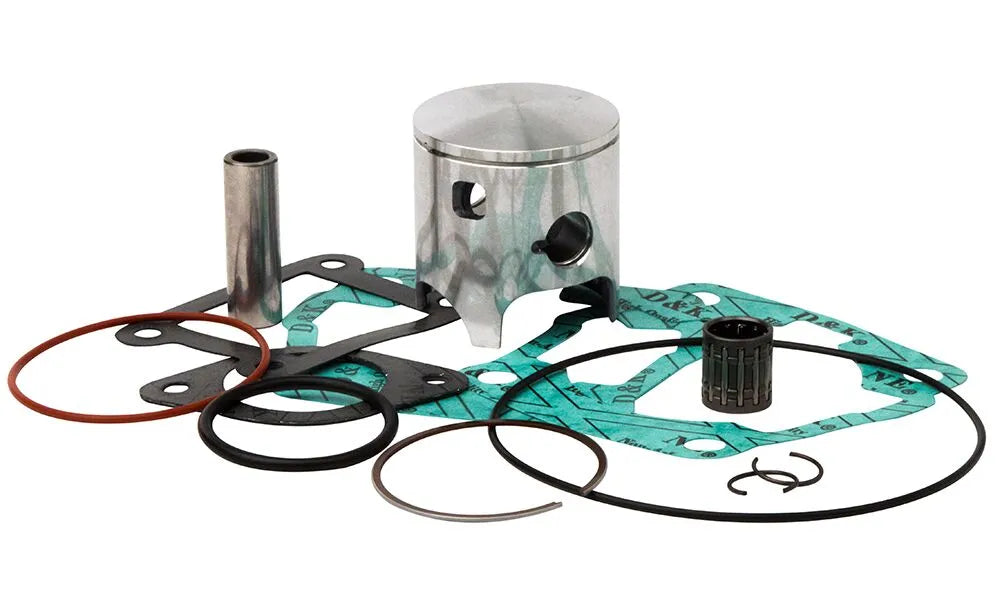

- Complete top end kit includes piston, rings, wrist pin, circlips, and top end gaskets.
- Nitride coated steel rings ensure optimal sealing and performance.
Technical specifications
- Brand: Vertex
- Product Name: Piston Kit
- Type: Top End
- Engine Type: 2-Stroke
- Displacement: 85 cc
- Piston Material: Cast Aluminum Alloy
- Piston Size: Standard Size C
- Piston Diameter: 48.46 mm
- Bore Size: 48.50 mm
- Ring Material: Nitride Coated, Steel
Important to know
Ensure proper fitment by verifying the specifications against your engine requirements. Professional installation is recommended.
- Brand
- VERTEX
- Vendor part number
- VTK23637C-1
- Product name
- Piston Kit
- Bore size
- 48,50 mm
- Displacement
- 85 cc
- Piston material
- Aluminum Alloy, Cast
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size C
- Piston diameter
- 48,46 mm
- Engine type
- 2-Stroke
- Type
- Top End
- Units
- Kit
