Vertex Top End Piston Kit - 47mm Bore - 85cc - Size A - VTK24212A-1
Product info
- Item number
- 09104328
- Manufacturer number
- VTK24212A-1
- Position
Upgrade your 2-stroke engine with the Vertex Top End Piston Kit, a high-quality cast replica designed for optimal performance and durability. This kit provides a cost-effective solution for rebuilding your top end, ensuring reliable power and extended engine life.
Description
The Vertex Top End Piston Kit features a cast piston crafted to original OE specifications, providing a direct replacement for your worn piston. The piston undergoes a T-5 heat treatment for enhanced strength and resilience. A Molybdenum Disulphide coating on the piston skirt reduces friction, facilitating faster break-in and minimizing wear. Constructed from a gravity-cast aluminum alloy with 18% silicone content, this piston achieves an excellent balance of lightweight design and exceptional strength. Designed for 85cc 2-stroke engines with a 47.00 mm bore, this Vertex kit delivers reliable performance. Replace your old piston with this Vertex cast replica piston kit today!
Features & highlights
- Cast piston designed to OE specifications for direct replacement.
- T-5 heat treatment enhances piston strength and durability.
- Molybdenum Disulphide coated skirt reduces friction and break-in time.
- Gravity-cast aluminum alloy with 18% silicone for lightweight strength.
- Complete kit includes all necessary components for top-end rebuild.
- Nitride coated steel rings included for optimal sealing.
Technical specifications
- Brand: VERTEX
- Engine Type: 2-Stroke
- Bore Size: 47.00 mm
- Displacement: 85 cc
- Piston Diameter: 46.94 mm
- Piston Material: Cast Aluminum Alloy
- Piston Size: Standard Size A
- Ring Material: Nitride Coated Steel
- Type: Top End
- Units: Kit
Important to know

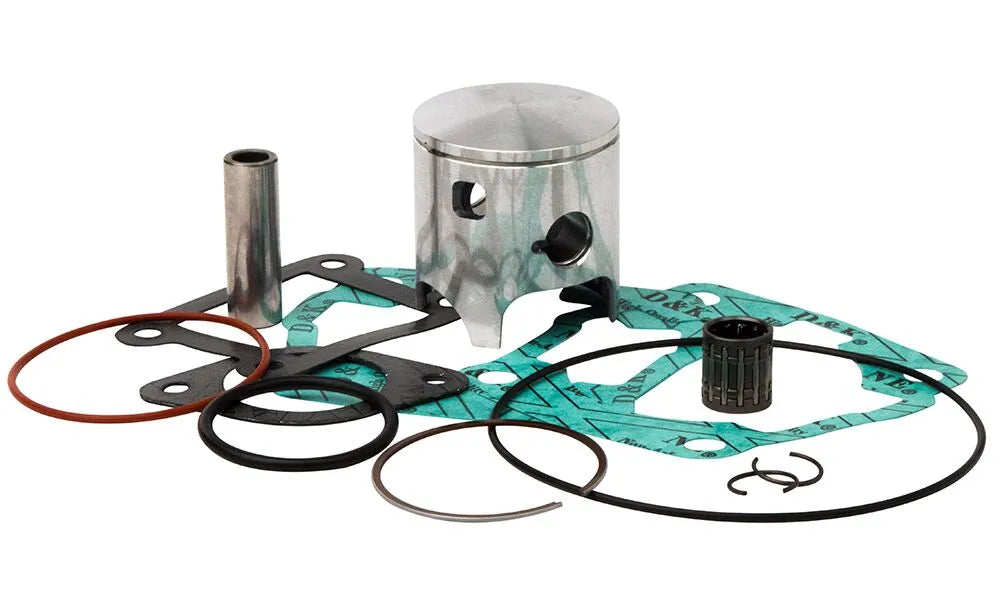

This kit includes the piston, rings, wrist pin, circlips, and top-end gaskets. Verify compatibility with your specific motorcycle model before installation.
- Brand
- VERTEX
- Vendor part number
- VTK24212A-1
- Product name
- Piston Kit
- Bore size
- 47,00 mm
- Displacement
- 85 cc
- Piston material
- Aluminum Alloy, Cast
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size A
- Piston diameter
- 46,94 mm
- Engine type
- 2-Stroke
- Type
- Top End
- Units
- Kit
