Vertex 2-Stroke Cast Big Bore Piston Kit - 104cc - Size A - 23628A
Product info
- Item number
- 09102113
- Manufacturer number
- 23628A
- Position
Upgrade your 2-stroke engine's performance with the Vertex Big Bore Piston Kit. This kit delivers a significant boost in displacement, torque, and horsepower, ensuring enhanced riding experience. Crafted with precision and durability in mind, this piston kit is designed for enthusiasts and professionals seeking top-tier engine upgrades.
Description
The Vertex Big Bore Piston Kit is engineered to maximize your engine's potential. The gravity-cast aluminum alloy piston, containing 18% silicone, provides exceptional strength and heat resistance. Heat-treated with a T-5 hardening and tempering cycle, the piston ensures long-lasting performance. The piston skirt features a Molybdenum Disulphite coating, which reduces friction, accelerates break-in time, and extends piston life. This big bore piston increases your engine's displacement to 104cc, resulting in a noticeable increase in torque and peak horsepower. Easy to install, this kit is a direct replacement for your stock piston, offering a straightforward path to enhanced engine dynamics.
Features & highlights
- Boost engine displacement to 104cc for significant power gains.
- Gravity-cast aluminum alloy piston (18% silicone) ensures superior strength and heat resistance.
- Molybdenum Disulphite coated piston skirt reduces friction and extends life.
- T-5 heat treatment enhances piston durability and performance.

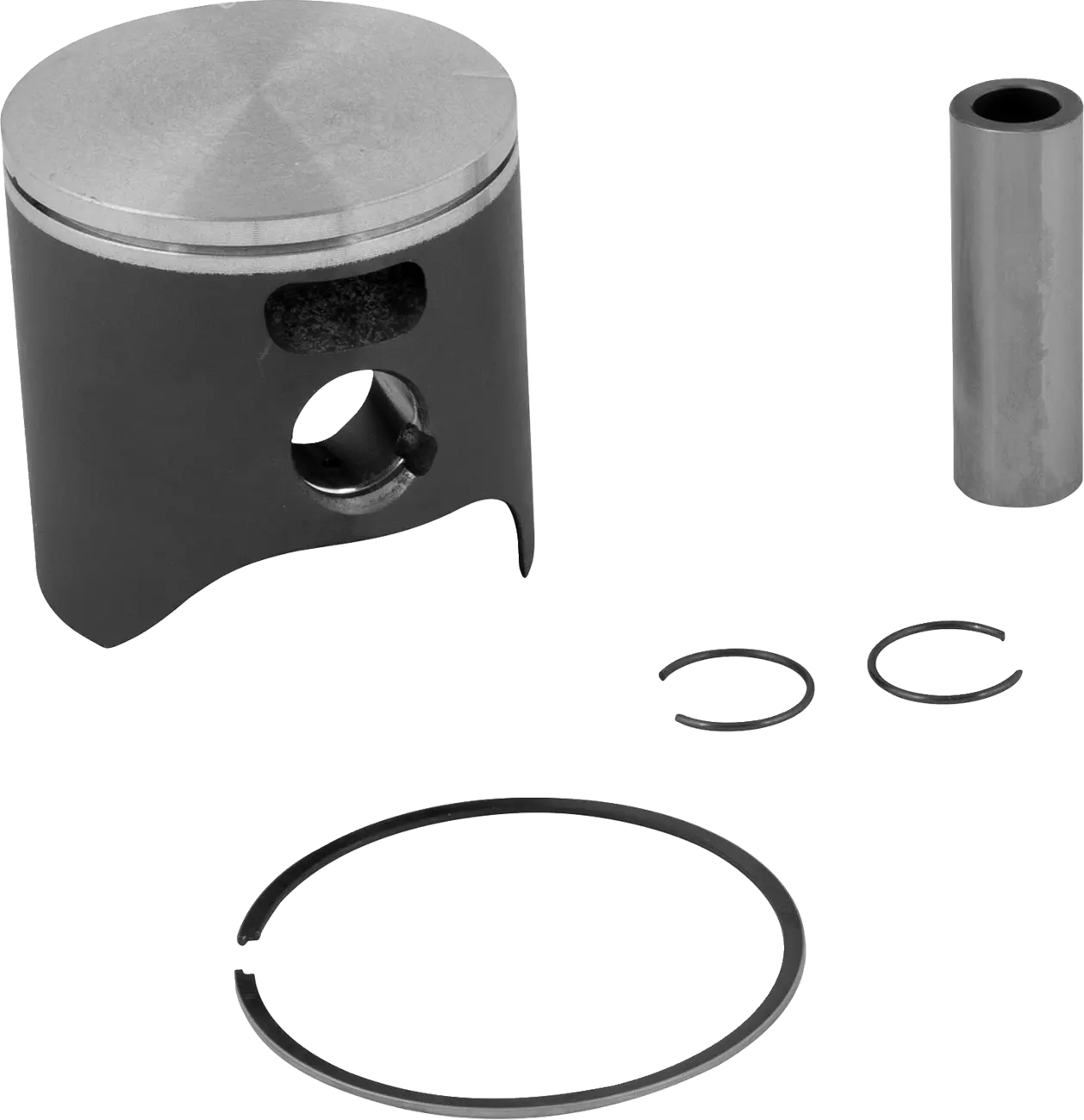

- Complete kit includes piston, rings, wrist pin, and circlips for easy installation.
- Noticeable increase in torque and peak horsepower.
Technical specifications
- Brand: Vertex
- Part Number: 23628A
- Engine Type: 2-Stroke
- Displacement: 104 cc
- Cylinder Diameter: 52.50 mm
- Piston Diameter: 52.44 mm
- Bore - Oversize: +5.00 mm
- Compression Ratio: Standard
- Piston Material: Cast Aluminum Alloy
- Skirt Coating: Molybdenum Disulphite
Important to know
This kit includes the piston, rings, wrist pin, and circlips. Installation may require specific tools and expertise; professional installation is recommended.
- Brand
- VERTEX
- Vendor part number
- 23628A
- Product name
- Piston Kit
- Compression ratio
- Standard
- Displacement
- 104 cc
- Piston material
- Aluminum Alloy, Cast
- Cylinder diameter
- 52.50 mm
- Piston diameter
- 52.44 mm
- Skirt coating
- Molybdenum Disulphite
- Engine type
- 2-Stroke
- Units
- Kit
