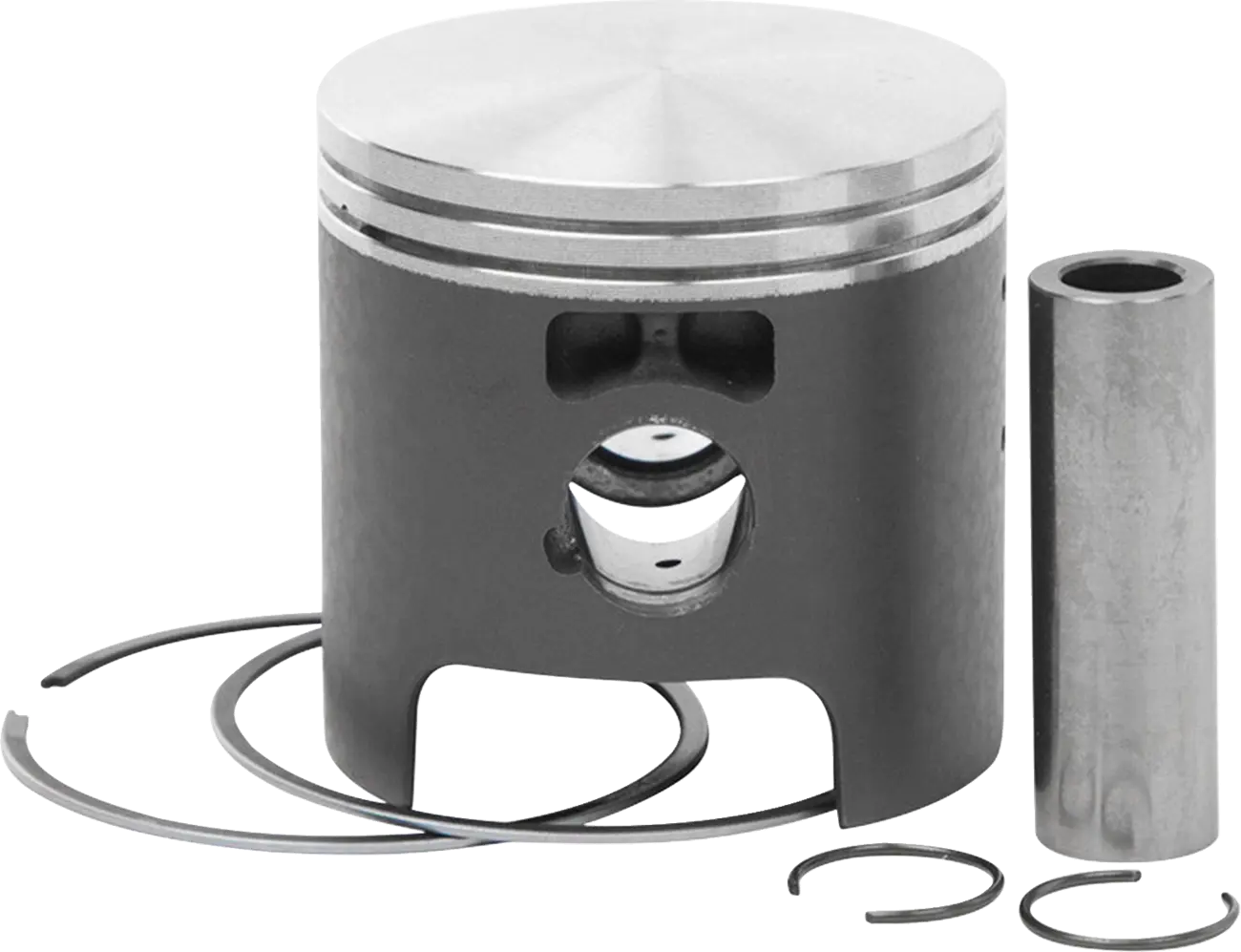

Vertex 2-Stroke Cast Big Bore Piston Kit - 107cc - +2.00mm - 23614200
Product info
- Item number
- 09102051
- Manufacturer number
- 23614200
- Position
Upgrade your 2-stroke engine's performance with the Vertex Big Bore Piston Kit. This kit is designed to boost displacement, increase torque, and deliver maximum horsepower, giving you a significant edge on the track or trail. Crafted with precision and durability in mind, this piston kit ensures optimal performance and longevity for your engine.
Description
The Vertex Big Bore Piston Kit is engineered to transform your 2-stroke engine into a powerhouse. By increasing the engine's displacement to 107cc, this kit provides a noticeable increase in both torque and peak horsepower. The piston itself is constructed from a gravity-cast aluminum alloy with an 18% silicone content, ensuring excellent heat resistance and wear properties. It undergoes a T-5 hardening and tempering cycle to enhance its strength and durability. The piston skirt features a high-tech Molybdenum Disulphite coating, promoting faster break-in times and extending the overall lifespan of the piston. Installation is straightforward, allowing you to quickly experience the enhanced performance benefits.
Features & highlights
- Boosts engine displacement, torque, and horsepower for enhanced performance.
- Gravity-cast aluminum alloy piston with 18% silicone content for superior heat resistance.
- T-5 heat treatment for exceptional strength and durability.
- Molybdenum Disulphite coated piston skirt ensures rapid break-in and extended life.
- Complete kit includes piston, rings, wrist pin, and circlips for a comprehensive upgrade.
- Designed for 2-stroke engines, providing a significant performance advantage.
Technical specifications
- Brand: Vertex
- Part Number: 23614200
- Engine Type: 2-Stroke
- Displacement: 107 cc
- Cylinder Diameter: 54.50 mm
- Piston Diameter: 54.44 mm
- Bore - Oversize: +2.00 mm
- Compression Ratio: Standard
- Piston Material: Cast Aluminum Alloy
- Skirt Coating: Molybdenum Disulphite
- Units: Kit
Important to know
This kit includes the piston, rings, wrist pin, and circlips. No other parts or tools are included.
- Brand
- VERTEX
- Vendor part number
- 23614200
- Product name
- Piston Kit
- Compression ratio
- Standard
- Displacement
- 107 cc
- Piston material
- Aluminum Alloy, Cast
- Cylinder diameter
- 54.50 mm
- Piston diameter
- 54.44 mm
- Skirt coating
- Molybdenum Disulphite
- Engine type
- 2-Stroke
- Units
- Kit
