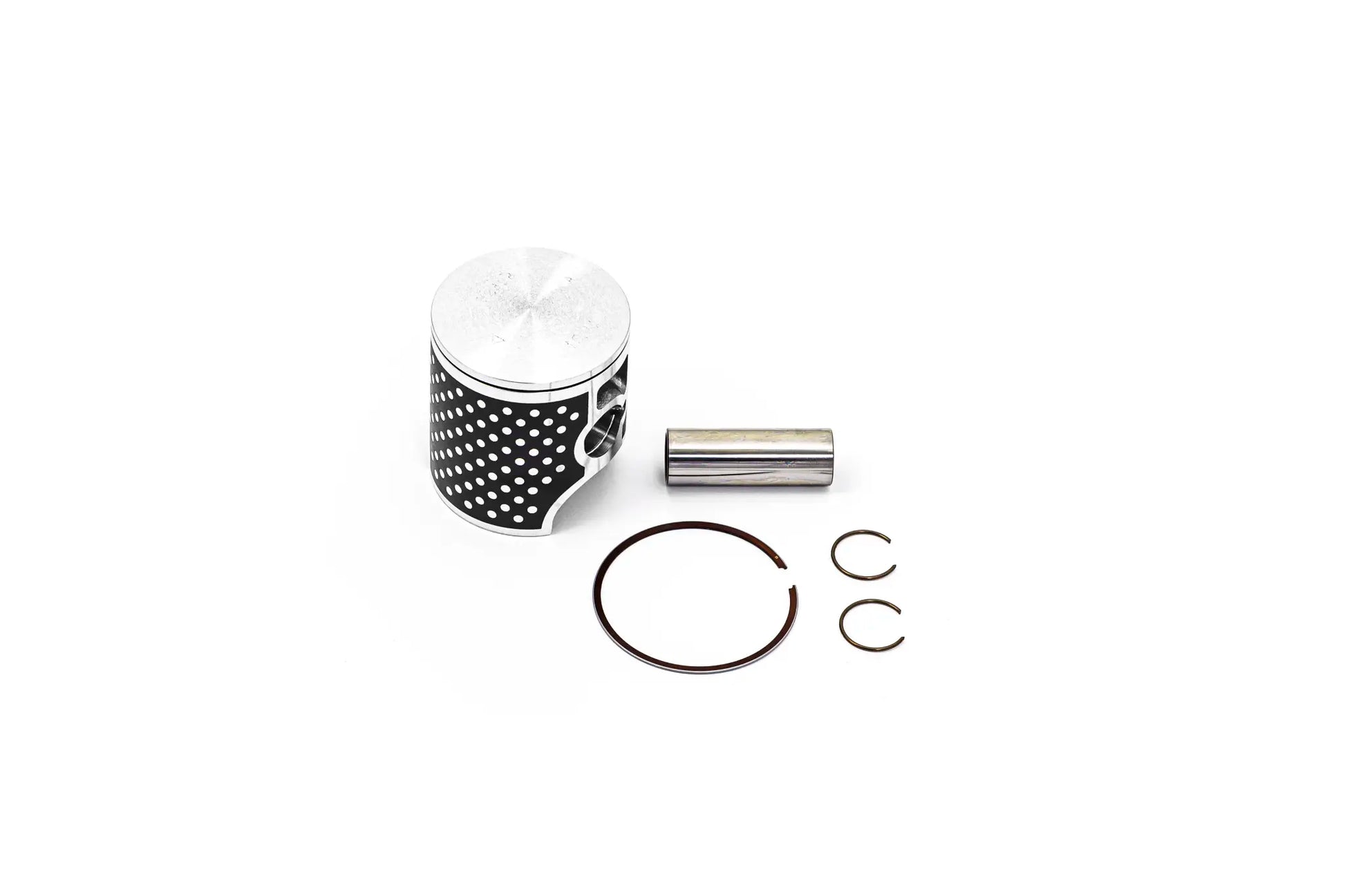

Vertex Cast Race Piston Kit for 85cc Engines
Product info
- Item number
- 09106214
- Manufacturer number
- 24446B
- Position
Elevate the performance of your 85cc 2-stroke engine with the Vertex Cast Race Piston Kit. Engineered with advanced Vertex technology and a race-specific profile, this kit delivers exceptional durability and power for demanding riding conditions.
Description
The Vertex Cast Race Piston Kit is meticulously developed for peak performance in 85cc 2-stroke motorcycle engines. Each high-performance cast piston undergoes a rigorous T-5 hardening and tempering heat treatment cycle, significantly enhancing its strength and longevity. Crafted from a gravity cast aluminum alloy with an impressive 18% silicone content, this piston achieves an incredibly light yet robust construction, vital for high-revving applications. To ensure optimal break-in and extended operational life, every piston skirt is coated with a high-tech Molybdenum Disulphite (Moly) coating, reducing friction and wear. This complete kit includes everything you need for a straightforward installation: the piston itself, nitride-coated steel rings, a wrist pin, and circlips, ensuring a standard compression ratio and a precise 46.95 mm piston diameter, compatible with a 47.00 mm bore size.
Features & Highlights
- Race-Developed Design: Engineered with Vertex technology and a specific race shape profile for optimal power delivery and performance in 85cc 2-stroke engines.
- Enhanced Durability: Each piston is T-5 heat treated, providing superior hardness and tempering for exceptional resilience under extreme conditions.
- Reduced Friction & Wear: High-tech Molybdenum Disulphite (Moly) coating on the piston skirts promotes faster break-in and significantly extends piston life.
- Lightweight & Strong Construction: Gravity cast aluminum alloy with 18% silicone content ensures an extremely light yet incredibly strong piston for reliable high-RPM operation.
- Complete Kit for Easy Installation: Includes piston, high-quality nitride-coated steel rings, wrist pin, and circlips for a comprehensive and hassle-free rebuild.
Technical Specifications
- Brand: Vertex
- Style: Cast Race
- Units: Kit
- Bore Size: 47.00 mm
- Engine Type: 2-Stroke
- Piston Size: Standard Size B
- Displacement: 85 cc
- Product Name: Piston Kit
- Ring Material: Nitride Coated, Steel
- Skirt Coating: Moly Coated
- Piston Diameter: 46.95 mm
- Piston Material: Aluminum Alloy, Cast
- Compression Ratio: Standard
- Vendor Part Number: 24446B
- Vendor part number
- 24446B
- Product name
- Piston Kit
- Style
- Cast Race
- Bore size
- 47,00 mm
- Compression ratio
- Standard
- Displacement
- 85 cc
- Piston material
- Aluminum Alloy, Cast
- Width
- 60 mm
- Height
- 58 mm
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size B
- Length
- 83 mm
- Piston diameter
- 46,95 mm
- Skirt coating
- Moly Coated
- Engine type
- 2-Stroke
- Units
- Kit
