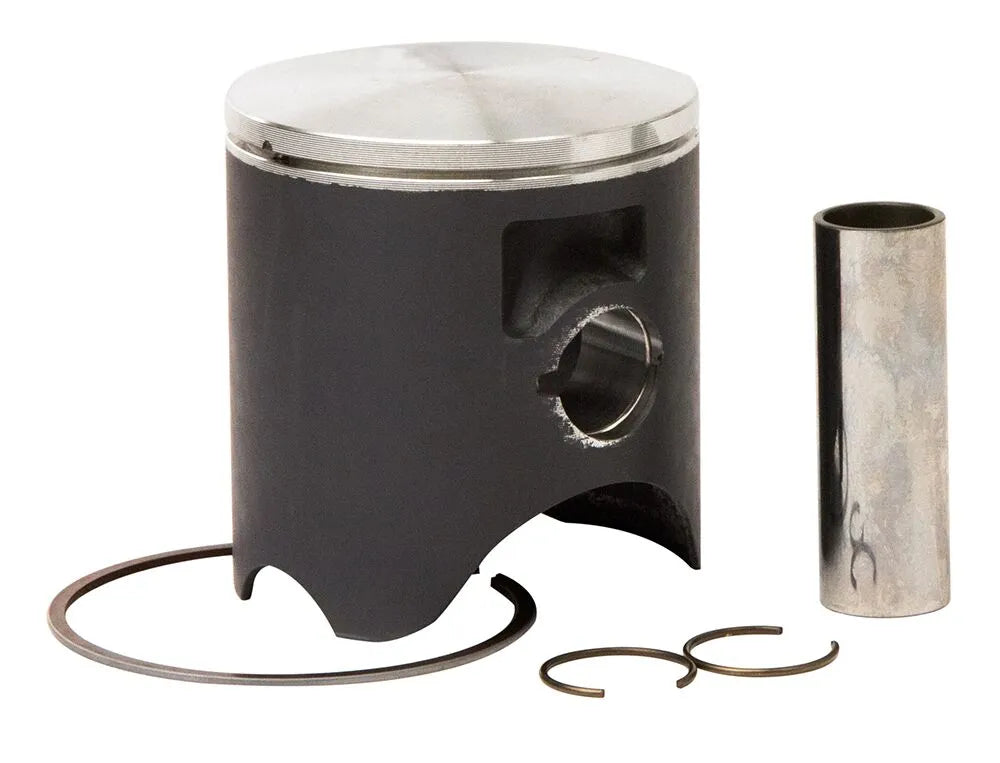

Vertex Cast Replica Piston Kit - 54mm Bore - 125cc - Size A - 22520A
Product info
- Item number
- 09102245
- Manufacturer number
- 22520A
- Position
The Vertex Cast Replica Piston Kit delivers original equipment (OE) form and fitment, providing a cost-effective solution for your engine rebuild. This piston kit is engineered for reliability and performance, ensuring your two-stroke engine runs smoothly.
Description
Crafted from gravity-cast aluminum alloy with an 18% silicone content, the Vertex cast replica piston offers exceptional strength while remaining lightweight. Each piston undergoes a T-5 heat treatment, hardening and tempering cycle, enhancing its durability. The piston skirt features a high-tech Molybdenum Disulphite coating, promoting faster break-in times and extending piston life. This kit is designed as a direct OEM replacement, ensuring compatibility and ease of installation. Ideal for enthusiasts and professionals seeking reliable engine components, the Vertex Cast Replica Piston Kit is a top-tier choice for maintaining and improving your engine's performance. With a standard compression ratio and a bore size of 54.00 mm, this kit is specifically designed for 125cc 2-stroke engines.
Features & highlights
- Direct OEM replacement for hassle-free installation.
- Gravity-cast aluminum alloy with 18% silicone for a strong, lightweight piston.
- T-5 heat treatment enhances piston durability and longevity.
- Molybdenum Disulphite coated skirt reduces friction for faster break-in.
- Designed for optimum performance in 125cc 2-stroke engines.
- Nitride coated steel rings for improved sealing and wear resistance.
Technical specifications
- Brand: Vertex
- Part Number: 09102245
- Engine Type: 2-Stroke
- Displacement: 125 cc
- Bore Size: 54.00 mm
- Piston Diameter: 53.93 mm
- Piston Material: Cast Aluminum Alloy
- Piston Size: Standard Size A
- Ring Material: Nitride Coated Steel
- Skirt Coating: Moly Coated
- Compression Ratio: Standard
Important to know
Two-stroke piston rings are sold individually. Four-stroke piston rings are sold as a set.
- Brand
- VERTEX
- Vendor part number
- 22520A
- Product name
- Piston Kit
- Bore size
- 54,00 mm
- Compression ratio
- Standard
- Displacement
- 125 cc
- Piston material
- Aluminum Alloy, Cast
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size A
- Piston diameter
- 53,93 mm
- Skirt coating
- Moly Coated
- Engine type
- 2-Stroke
- Units
- Kit
