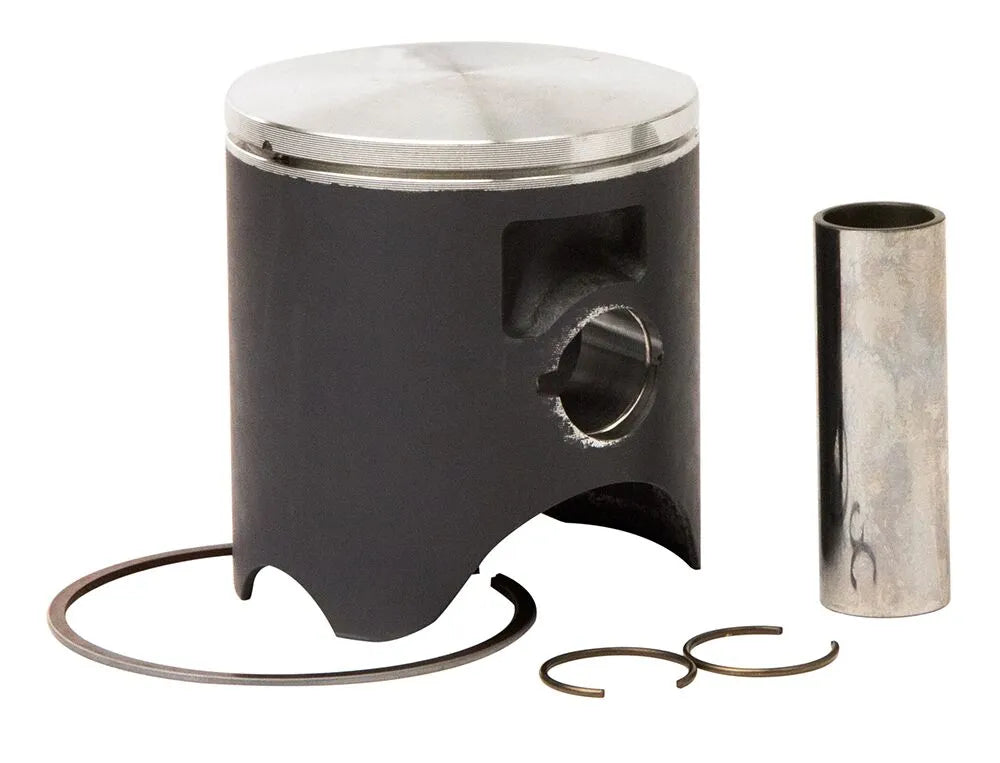

Vertex Top End Piston Kit - 47.50mm Bore - 85cc - Size C - VTK22877C
Product info
- Item number
- 09104306
- Manufacturer number
- VTK22877C
- Position
Upgrade your two-stroke engine with the Vertex Cast Replica Piston Kit. This top-end kit delivers reliable performance and extends the life of your 85cc engine. Get back on the track or trail with confidence using Vertex's high-quality replacement components.
Description
The Vertex Cast Replica Piston Kit provides a cost-effective solution for rebuilding your engine's top end. The cast piston mirrors the original OE form and is crafted from a gravity-cast aluminum alloy with an 18% silicone content, ensuring a lightweight yet robust design. The piston undergoes a T-5 heat treatment for enhanced hardness and durability. To minimize friction and promote faster break-in, the piston skirt features a Molybdenum Disulphite coating. This top-end piston kit is designed as an OEM replacement, offering precise fit and reliable performance for your 85cc engine. All rings are OEM replacements.
Features & highlights
- Cast replica piston design mirrors original equipment specifications.
- Constructed from gravity-cast aluminum alloy with 18% silicone for optimal strength-to-weight ratio.
- T-5 heat treatment enhances piston hardness and longevity.
- Molybdenum Disulphide coated piston skirt reduces friction and speeds up break-in.

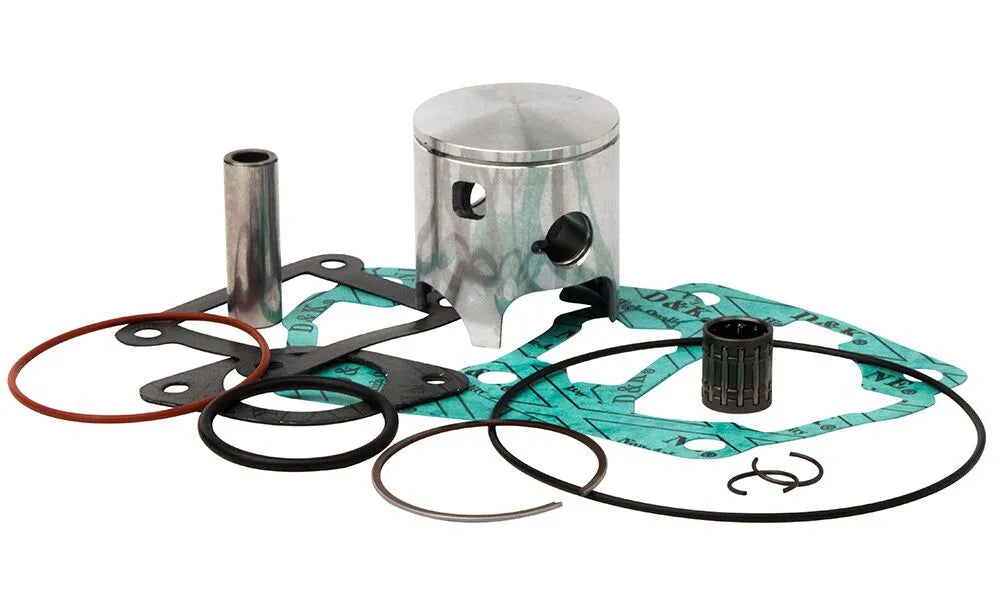

- Complete top-end kit includes piston, rings, wrist pin, circlips, and top-end gaskets.
- Designed for reliable performance and extended engine life in 85cc 2-stroke engines.
Technical specifications
- Brand: Vertex
- Product Name: Piston Kit
- Type: Top End
- Engine Type: 2-Stroke
- Displacement: 85cc
- Piston Material: Cast Aluminum Alloy
- Piston Size: Standard Size C
- Piston Diameter: 47.96 mm
- Bore Size: 47.50 mm
- Ring Material: Nitride Coated, Steel
Important to know
This kit is designed as a direct replacement for OEM parts. Please ensure compatibility with your specific engine model before installation.
- Brand
- VERTEX
- Vendor part number
- VTK22877C
- Product name
- Piston Kit
- Bore size
- 47,50 mm
- Displacement
- 85 cc
- Piston material
- Aluminum Alloy, Cast
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size C
- Piston diameter
- 47,96 mm
- Engine type
- 2-Stroke
- Type
- Top End
- Units
- Kit
