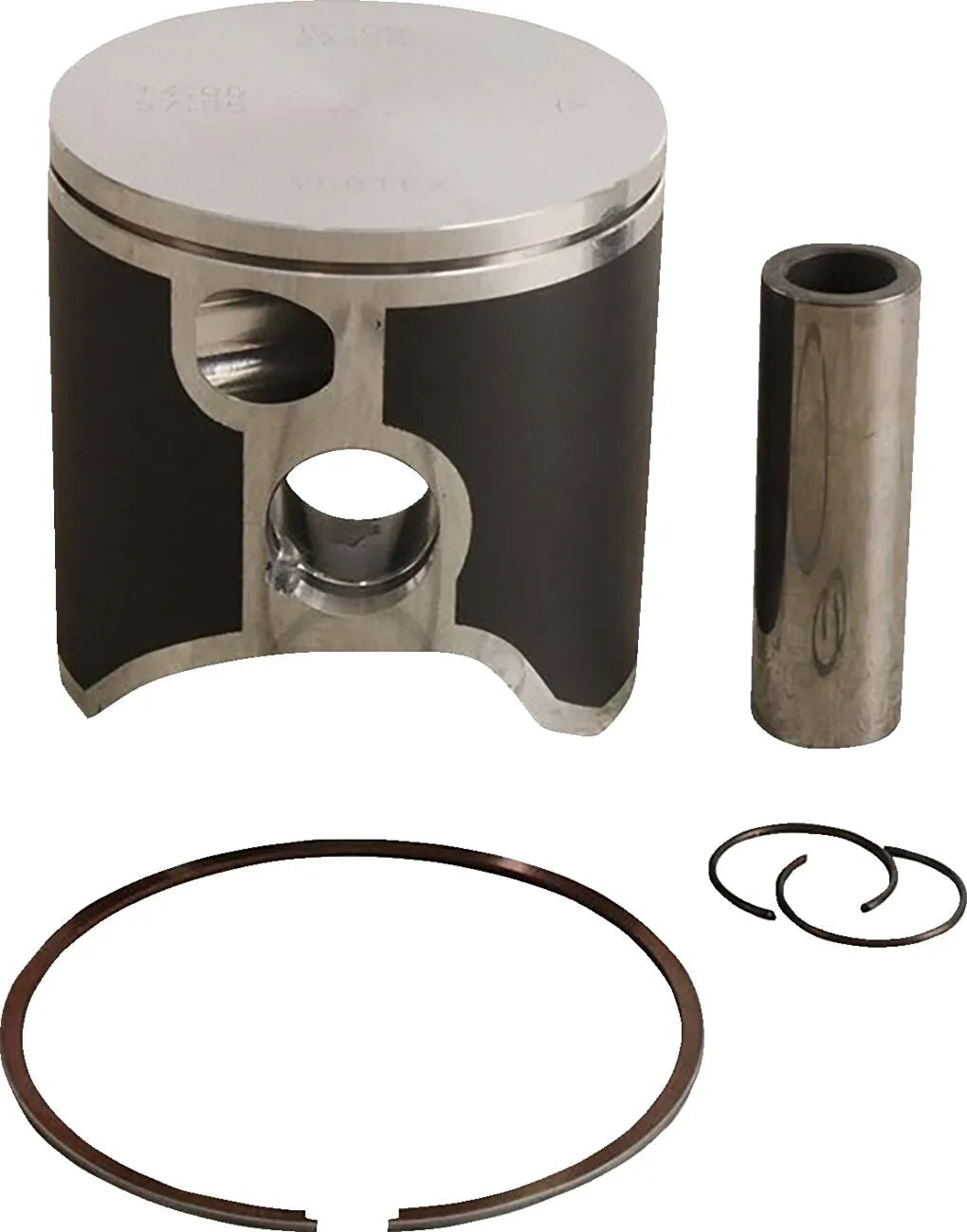

Vertex Forged Piston Kit - 57.95mm Bore - 144cc - +4.00mm - 23384400
Product info
- Item number
- 09102540
- Manufacturer number
- 23384400
- Position
Unleash the full potential of your 2-stroke engine with the Vertex Forged Big Bore Piston Kit. Crafted for superior performance and durability, this kit will give your engine the boost it needs. Experience faster break-in times and increased piston life thanks to advanced design and materials.
Description
The Vertex Forged Big Bore Piston Kit is engineered for maximum power and reliability. This piston is forged from high-strength 2618 aluminum and features a GP-style race design with a single compression ring, optimizing combustion efficiency. The piston undergoes a T-5 heat treatment, hardening and tempering to withstand extreme conditions. A high-tech Molybdenum Disulphite coating on the piston skirt reduces friction for quicker break-in and prolonged life. Upgrade your 2-stroke engine with this Vertex piston kit and feel the difference in performance.
Features & highlights
- Forged 2618 aluminum construction for superior strength and durability.
- T-5 heat treatment enhances hardness and resistance to wear.
- Molybdenum Disulphite coated skirt reduces friction and improves break-in.
- GP-style race piston design with single compression ring for optimal performance.
- Big Bore +4.00mm increases displacement to 144cc for added power.
- Complete kit includes piston, rings, wrist pin, and circlips.
Technical specifications
- Brand: Vertex
- Piston Material: Forged 2618 Aluminum
- Engine Type: 2-Stroke
- Displacement: 144 cc
- Cylinder Diameter: 58.00 mm
- Piston Diameter: 57.95 mm
- Bore - Oversize: +4.00 mm
- Compression Ratio: Standard
- Skirt Coating: Molybdenum Disulphite
Important to know
This kit is designed for engines that can accommodate a +4.00mm oversize bore. Please verify compatibility before installation.
- Brand
- VERTEX
- Vendor part number
- 23384400
- Product name
- Piston Kit
- Compression ratio
- Standard
- Displacement
- 144 cc
- Piston material
- Forged 2618 Aluminum
- Cylinder diameter
- 58.00 mm
- Piston diameter
- 57.95 mm
- Skirt coating
- Molybdenum Disulphite
- Engine type
- 2-Stroke
- Units
- Kit
