Vertex Forged Piston Kit - 76.95mm Bore - 250cc - Size A - 24123A
Product info
- Item number
- 09104100
- Manufacturer number
- 24123A
- Position
Maximize the performance of your 4-stroke engine with the Vertex Forged High Compression Piston Kit. This kit delivers enhanced power and torque throughout the entire RPM range, giving you the competitive edge you need. Built for durability and performance, this piston kit is a must-have upgrade.
Description
The Vertex Forged High Compression Piston Kit is engineered to boost the performance of your 4-stroke engine. Crafted from Forged 2618 Aluminum, this piston offers exceptional strength and durability. The high compression design, with a 14.2:1 compression ratio, significantly improves power and torque across the entire RPM range. The piston undergoes a T-5 heat treatment, ensuring optimal hardness and wear resistance. Furthermore, the piston skirt features a Molybdenum Disulphite coating, which reduces friction, facilitates faster break-in, and extends piston life. Each kit includes everything needed for a complete installation.
Features & highlights
- Forged high compression design maximizes power and torque.
- Forged 2618 Aluminum construction for superior strength.
- T-5 heat treatment enhances hardness and wear resistance.
- Molybdenum Disulphite coated skirt reduces friction and extends life.

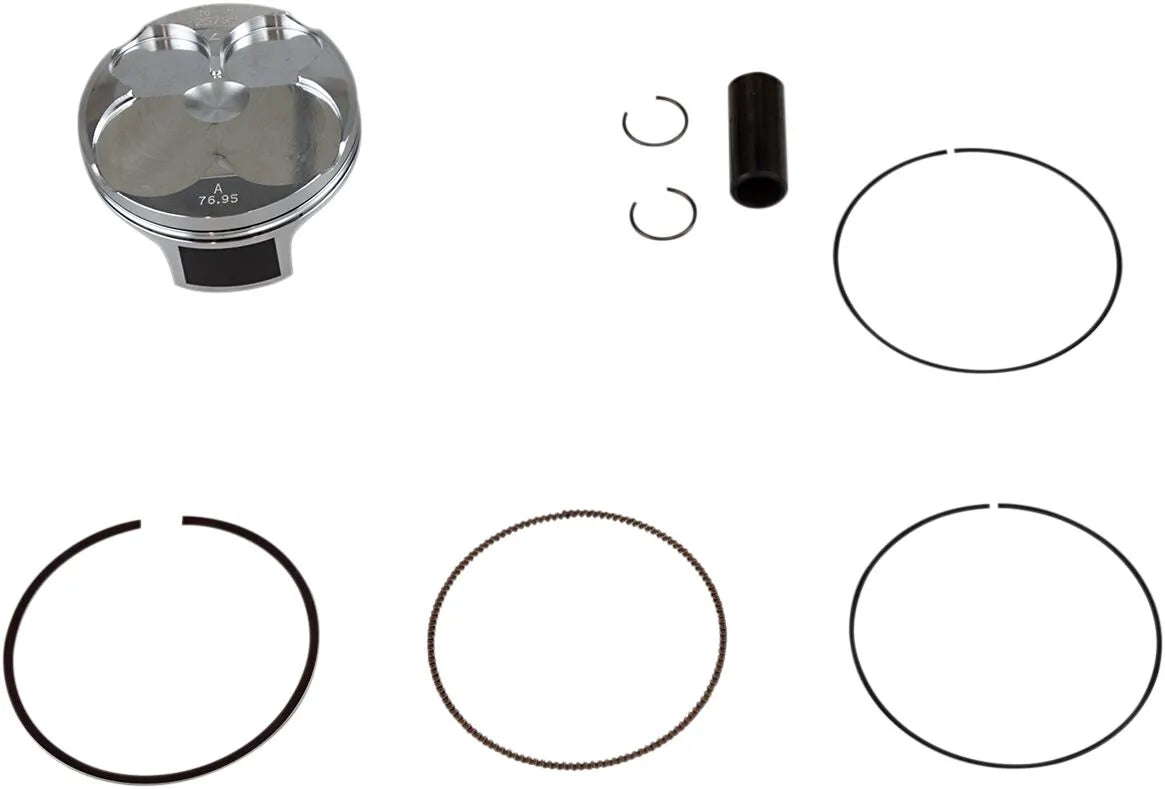

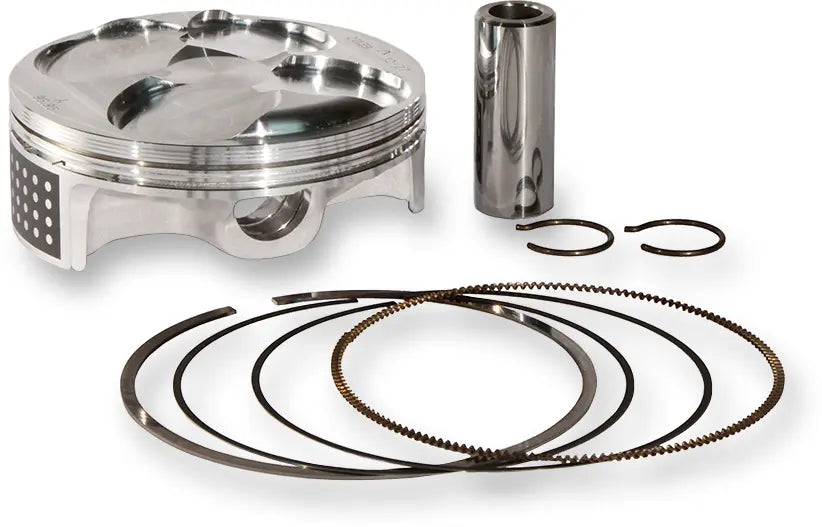

- Complete kit includes piston, rings, wrist pin, and circlips.
- Optimized for 250cc 4-stroke engines.
Technical specifications
- Brand: Vertex
- Product Name: Piston Kit
- Engine Type: 4-Stroke
- Displacement: 250 cc
- Cylinder Diameter: 77.00 mm
- Piston Diameter: 76.95 mm
- Compression Ratio: 14.2:1
- Piston Material: Forged 2618 Aluminum
- Skirt Coating: Molybdenum Disulphite
- Units: Kit
Important to know
Please ensure this piston kit is compatible with your specific engine model and year before installation. Professional installation is recommended.
- Brand
- VERTEX
- Vendor part number
- 24123A
- Product name
- Piston Kit
- Compression ratio
- 14.2:1
- Displacement
- 250 cc
- Piston material
- Forged 2618 Aluminum
- Cylinder diameter
- 77.00 mm
- Piston diameter
- 76.95 mm
- Skirt coating
- Molybdenum Disulphite
- Engine type
- 4-Stroke
- Units
- Kit
