Vertex Pro HC Forged Piston Kit - 79mm Bore - 250cc - Size B - 23758B
Product info
- Item number
- 09103182
- Manufacturer number
- 23758B
- Position
Unleash the full potential of your 250cc 4-stroke engine with the Vertex Forged High Compression Piston Kit. This kit is engineered for enthusiasts and professionals seeking enhanced power and durability. Experience improved torque and horsepower across the entire RPM range.
Description
The Vertex Pro HC forged piston is crafted with Vertex technology to deliver a high compression ratio of 14.0:1, maximizing engine performance. Forged from 2618 aluminum alloy, this piston offers superior strength and durability, ensuring reliable performance under demanding conditions. Each piston undergoes a T-5 hardening and tempering cycle for enhanced structural integrity. The piston skirt features a high-tech Molybdenum Disulphide coating, which promotes faster break-in times and extends piston life. This kit is designed for easy installation and provides a significant upgrade in engine output and longevity.
Features & highlights
- Forged from high-strength 2618 aluminum alloy for superior durability.
- High compression design (14.0:1) boosts power and torque across the RPM range.
- Molybdenum Disulphide coated skirt reduces friction and ensures faster break-in.
- T-5 heat treatment enhances piston strength and wear resistance.

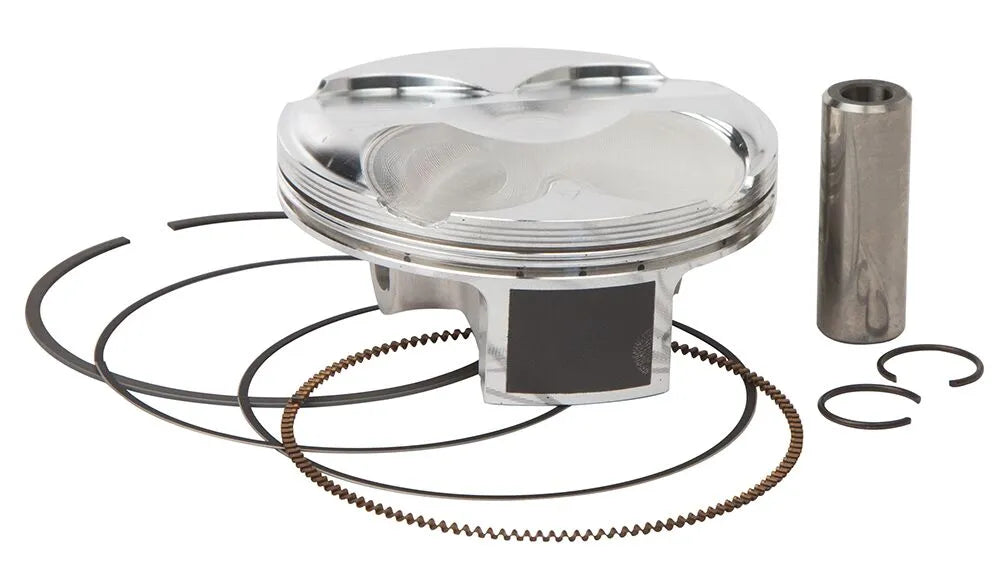

- Complete kit includes piston, rings, wrist pin, and circlips for a hassle-free installation.
- Designed for optimal performance in 250cc 4-stroke engines.
Technical specifications
- Brand: Vertex
- Product Name: Piston Kit
- Engine Type: 4-Stroke
- Displacement: 250 cc
- Bore Size: 79.00 mm
- Piston Diameter: 78.96 mm
- Piston Size: Standard Size B
- Compression Ratio: 14.0:1
- Piston Material: Forged Aluminum Alloy
- Ring Material: Nitride Coated, Steel
- Skirt Coating: Moly Coated
Important to know
This kit includes the piston, rings, wrist pin, and circlips. Two-stroke piston rings are sold individually; four-stroke piston rings are sold as a set.
- Brand
- VERTEX
- Vendor part number
- 23758B
- Product name
- Piston Kit
- Bore size
- 79,00 mm
- Compression ratio
- 14,0:1
- Displacement
- 250 cc
- Piston material
- Aluminum Alloy, Forged
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size B
- Piston diameter
- 78,96 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
