Vertex Pro HC Forged Piston Kit - 77mm Bore - 250cc - Size A - 24118A

Upgrade your 250cc 4-stroke engine with the Vertex Forged High Compression Piston Kit. This kit delivers enhanced power and torque across the entire RPM range, ensuring superior performance and durability for your machine. Experience the difference of Vertex technology and elevate your riding experience.

Description

The Vertex Forged High Compression Piston Kit is engineered to maximize the performance of your 250cc 4-stroke engine. Forged from high-strength 2618 aluminum alloy, this piston offers exceptional durability and resistance to wear. The high compression design, with a 13.7:1 compression ratio, significantly boosts power and torque output. Each piston undergoes a T-5 heat treatment, enhancing its strength and lifespan. The piston skirt is coated with a Molybdenum Disulphide coating, promoting faster break-in and reducing friction. This kit includes everything needed for a complete installation, providing a reliable and high-performance upgrade.

Features & highlights

• Forged from 2618 aluminum alloy for superior strength and durability.
• High compression design (13.7:1) boosts power and torque across the RPM range.
• T-5 heat treatment enhances piston strength and longevity.
• Molybdenum Disulphide coated piston skirt ensures faster break-in and reduced friction.

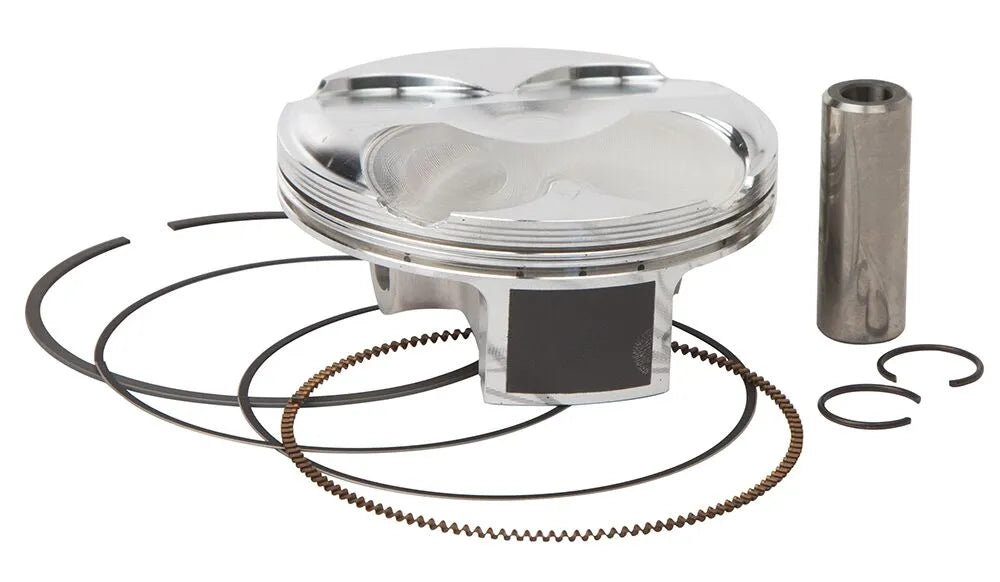

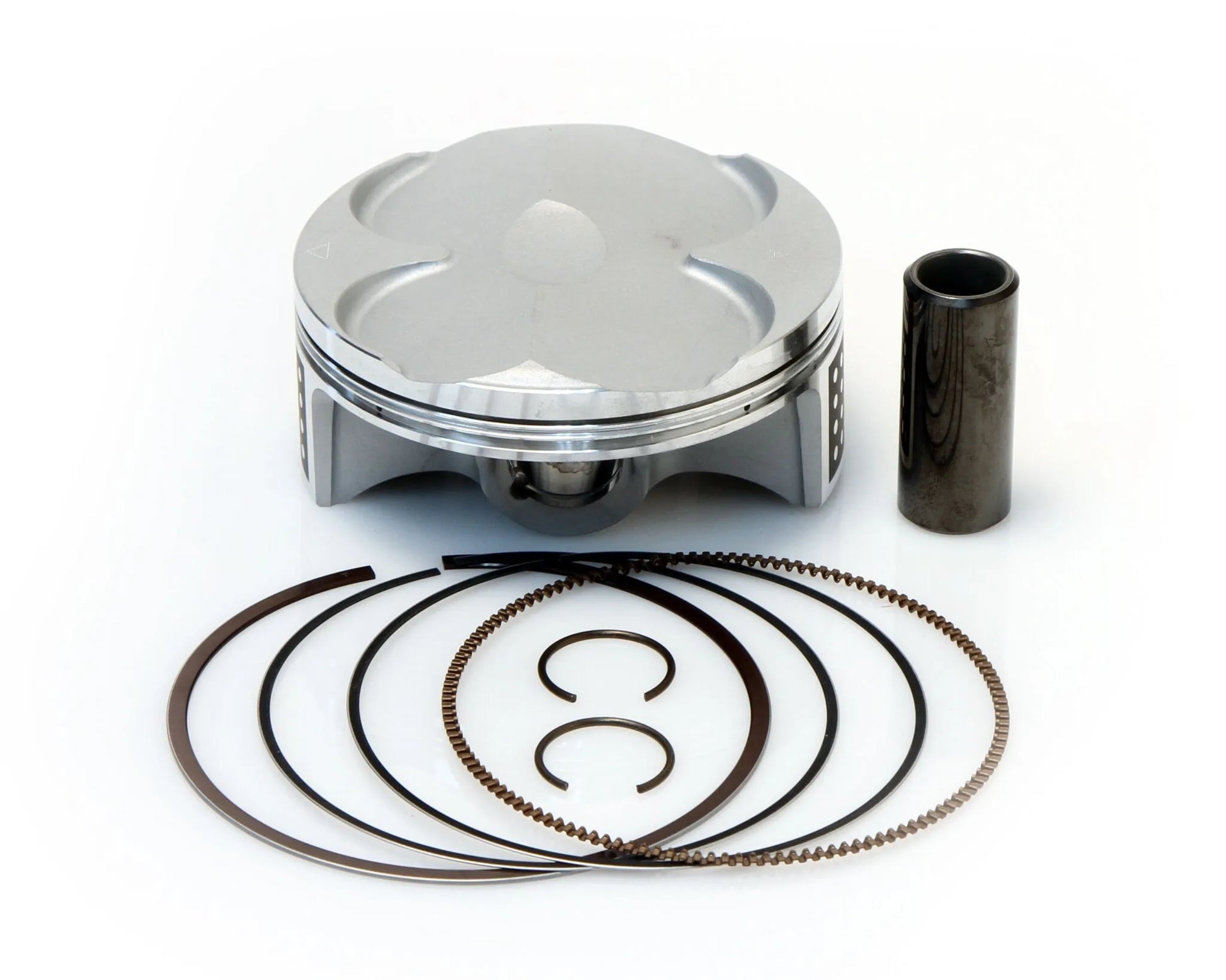

• Complete kit includes piston, rings, wrist pin, and circlips for easy installation.
• Optimized for 250cc 4-stroke engines.
• Nitride coated steel rings provide excellent sealing and wear resistance.

Technical specifications

• Brand: Vertex
• Piston Material: Forged Aluminum Alloy
• Displacement: 250cc
• Engine Type: 4-Stroke
• Bore Size: 77.00 mm
• Piston Diameter: 76.95 mm
• Compression Ratio: 13.7:1
• Piston Size: Standard Size A
• Ring Material: Nitride Coated Steel
• Skirt Coating: Moly Coated

Important to know

This kit includes all necessary components for piston replacement: piston, rings, wrist pin, and circlips. Replacement two-stroke piston rings are sold individually; four-stroke piston rings sold as a set.
