Vertex Top End Piston Kit - 78mm Bore - 250cc - Size A - VTKTC24097A
Product info
- Item number
- 09104479
- Manufacturer number
- VTKTC24097A
- Position
Upgrade your engine's performance and reliability with the Vertex Forged Replica Piston Kit. This top-end kit delivers exceptional strength and durability, ensuring long-lasting performance for your 250cc 4-stroke engine. Experience the difference of a forged piston designed for optimal performance.
Description
The Vertex Forged Replica Piston Kit is engineered to meet or exceed OEM specifications, providing a reliable and high-performance upgrade for your engine. Forged from 2618 aluminum, these pistons offer superior strength compared to cast pistons, withstanding the rigors of high-performance applications. Each piston undergoes a T-5 hardening and tempering cycle, further enhancing its durability. The piston skirt features a Molybdenum Disulphite coating, reducing friction for faster break-in and extended piston life. This kit includes everything needed for a complete top-end rebuild, ensuring optimal performance and reliability. The 77.96mm piston diameter ensures a precise fit within the 78.00mm bore size. This kit is ideally suited to enhance the performance of your 250cc engine, delivering improved power and longevity.
Features & highlights
- Forged from high-strength 2618 aluminum alloy for superior durability.
- Molybdenum Disulphite coated skirt reduces friction and improves break-in.
- T-5 heat treatment enhances piston strength and lifespan.
- Designed as a direct OE replacement for easy installation.

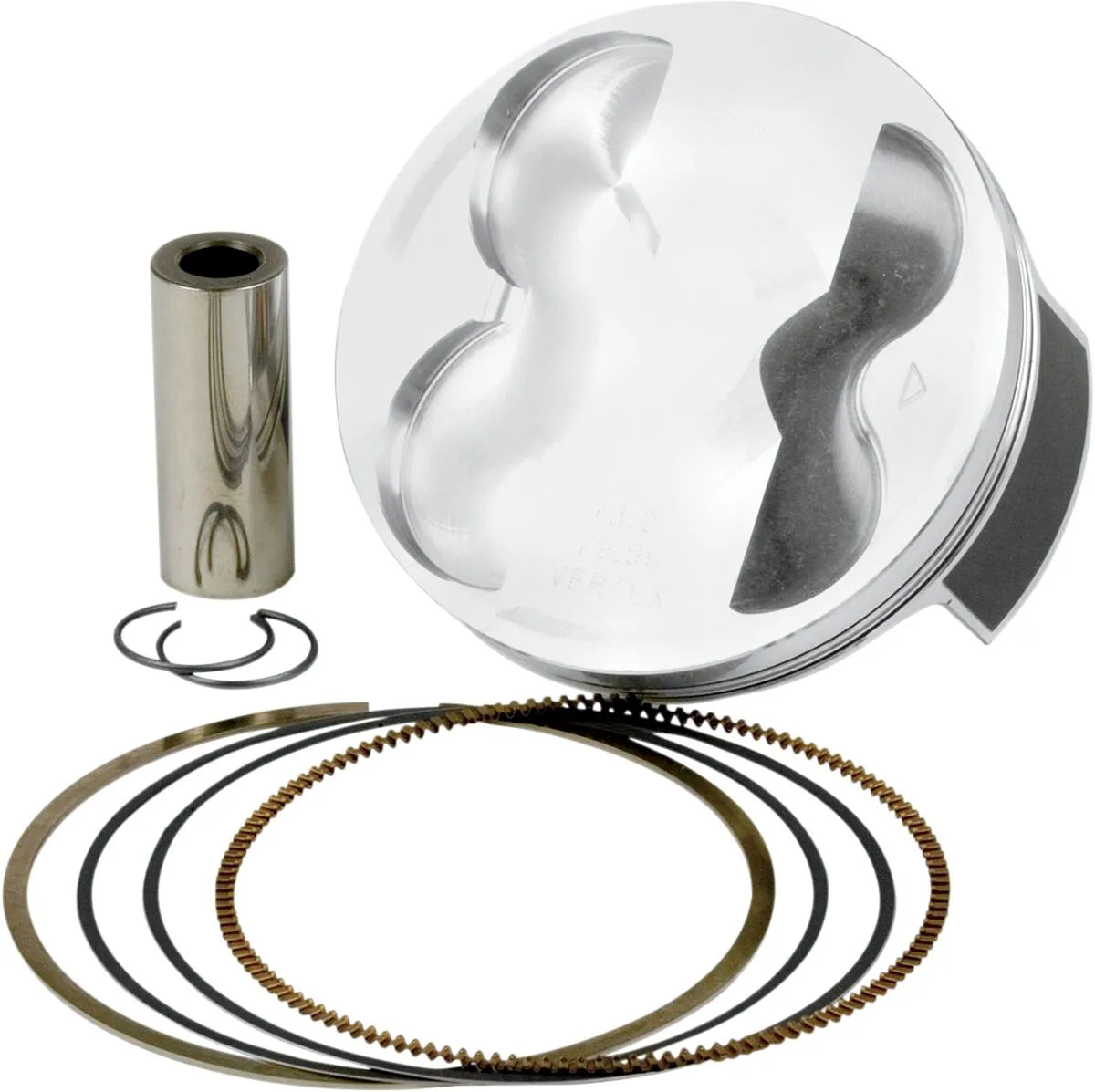

- Complete top-end kit includes piston, rings, wrist pin, circlips, and top-end gaskets.
- Nitride coated steel rings provide excellent sealing and wear resistance.
- Optimized for 250cc 4-stroke engines.
Technical specifications
- Brand: Vertex
- Product Name: Piston Kit
- Engine Type: 4-Stroke
- Displacement: 250 cc
- Piston Material: Forged Aluminum Alloy
- Piston Size: Standard Size A
- Piston Diameter: 77.96 mm
- Bore Size: 78.00 mm
- Compression Ratio: 14.4:1
- Ring Material: Nitride Coated Steel
- Skirt Coating: Moly Coated
Important to know
Always verify your engine's bore size before ordering to ensure proper fitment. Professional installation is recommended.
- Brand
- VERTEX
- Vendor part number
- VTKTC24097A
- Product name
- Piston Kit
- Bore size
- 78,00 mm
- Compression ratio
- 14,4:1
- Displacement
- 250 cc
- Piston material
- Aluminum Alloy, Forged
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size A
- Piston diameter
- 77,96 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
