Vertex Forged Piston Kit - 91.93mm Bore - 400cc - Size A - 22567A

Upgrade your 4-stroke engine with the Vertex Forged Replica Piston Kit. This kit provides improved performance and durability, ensuring your engine runs at its best. Get the most out of your engine with this high-quality piston kit from Vertex.

Description

The Vertex Forged Replica Piston Kit is engineered to deliver exceptional performance and longevity for your 4-stroke engine. Crafted from forged 2618 aluminum, this piston offers superior strength and heat resistance compared to cast pistons. The piston undergoes a T-5 heat treatment, enhancing its hardness and dimensional stability. The 91.93 mm piston diameter is precisely machined for optimal cylinder sealing and power output. The Molybdenum Disulphite coating on the piston skirt reduces friction, facilitating a faster break-in period and extending piston life. This kit is designed as an OE replacement, ensuring seamless compatibility and straightforward installation. Whether you're rebuilding your engine or seeking a performance upgrade, the Vertex piston kit delivers the reliability and power you need. Suitable for 400cc engines, it offers a compression ratio of 12.5:1.

Features & highlights

• Forged 2618 aluminum construction for enhanced strength and durability.
• T-5 heat treatment improves hardness and dimensional stability.
• Molybdenum Disulphide coated skirt reduces friction and extends piston life.
• Designed as a direct OE replacement for easy installation.
• Provides improved cylinder sealing for optimal power output.

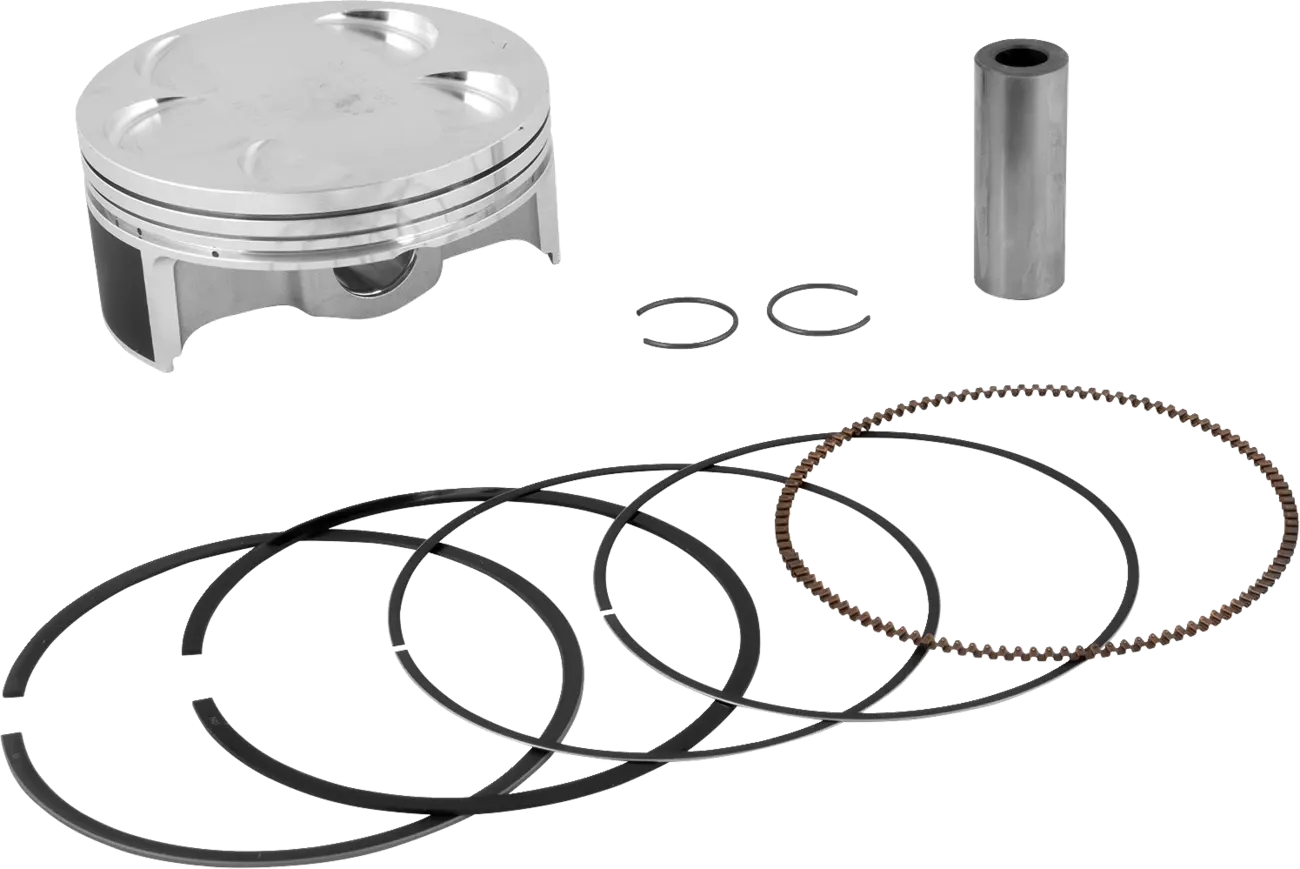

• Kit includes piston, rings, wrist pin, and circlips for a complete solution.

Technical specifications

• Brand: Vertex
• Product Name: Piston Kit
• Piston Material: Forged 2618 Aluminum
• Engine Type: 4-Stroke
• Displacement: 400cc
• Cylinder Diameter: 92.00 mm
• Piston Diameter: 91.93 mm
• Compression Ratio: 12.5:1
• Skirt Coating: Molybdenum Disulphide
• Units: Kit

Important to know

This piston kit includes the piston, ring set, wrist pin, and circlips. Professional installation is recommended to ensure proper fitment and performance.
