Vertex Top End Piston Kit - 54mm Bore - 125cc - Size E - VTK23120E
Product info
- Item number
- 09104326
- Manufacturer number
- VTK23120E
- Position
Upgrade your 125cc 2-stroke engine with the Vertex Forged Race Piston Kit. Engineered for superior performance and durability, this top-end kit delivers enhanced power and reliability for demanding racing applications. Experience the Vertex advantage with race-proven technology.
Description
The Vertex Forged Race Piston Kit is designed for enthusiasts and professionals seeking maximum engine performance. This kit features a forged piston crafted from 2618 aluminum alloy, ensuring exceptional strength and resistance to wear under high stress conditions. The piston undergoes a T-5 heat treatment, further enhancing its durability and longevity. Its skirt is coated with a Molybdenum Disulphite coating which promotes faster break-in and reduces friction, extending the piston's service life. The kit is designed for a 125cc 2-stroke engine with a 54.00 mm bore size, and includes all necessary components for a complete top-end rebuild. This top-end piston kit provides improved performance and reliability for your engine, making it ideal for racing and high-performance applications. Get the competitive edge with Vertex pistons.
Features & highlights
- Forged from high-strength 2618 aluminum alloy for superior durability.
- T-5 heat treatment enhances piston strength and longevity.
- Molybdenum Disulphite coated skirt reduces friction and promotes faster break-in.
- Designed with a race-shape profile developed with Vertex technology.

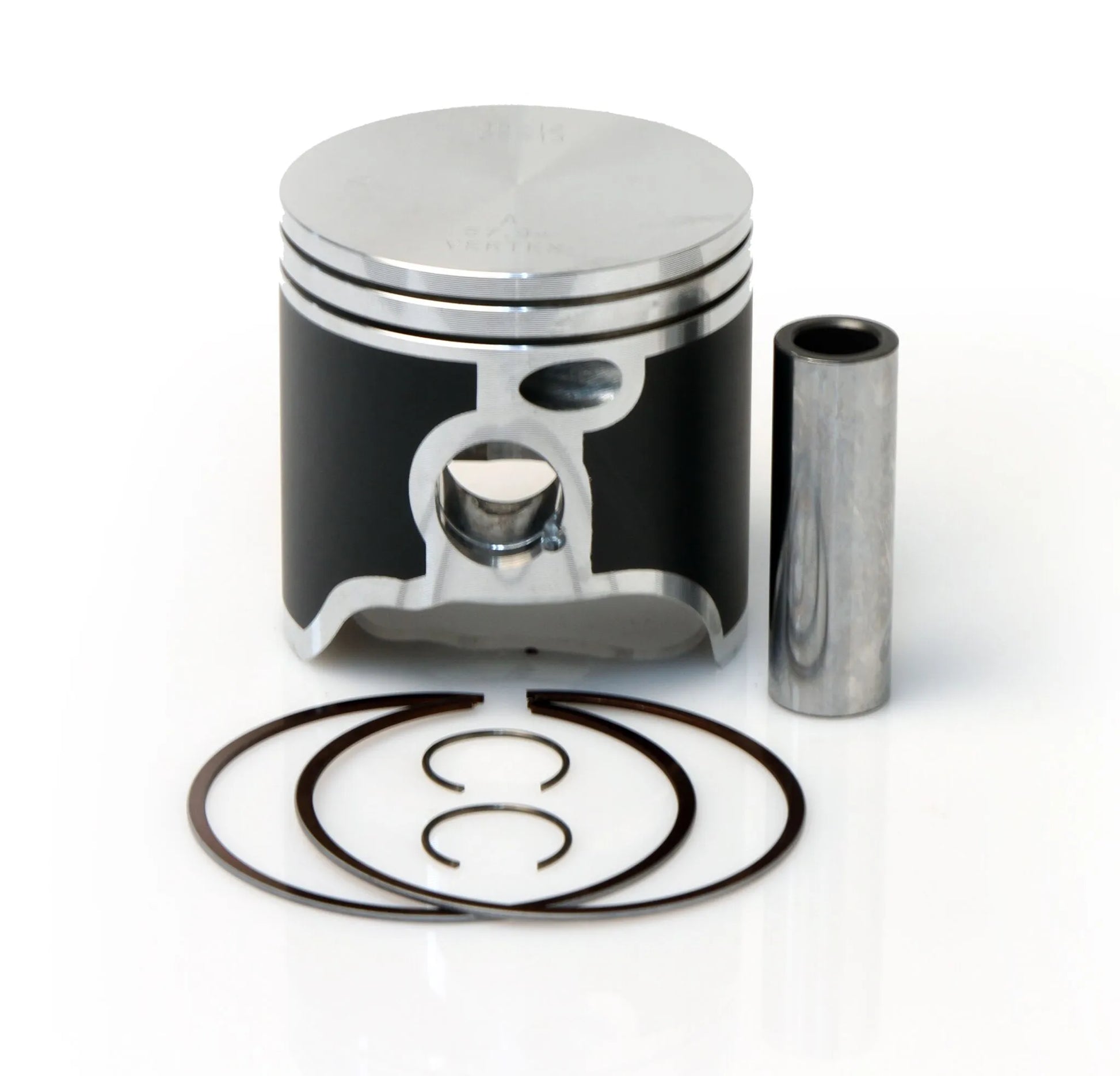

- Includes piston, rings, wrist pin, circlips, and top-end gaskets for a complete installation.
- Optimized for 125cc 2-stroke engines.
Technical specifications
- Brand: VERTEX
- Piston Material: Forged Aluminum Alloy
- Engine Type: 2-Stroke
- Displacement: 125 cc
- Bore Size: 54.00 mm
- Piston Diameter: 53.97 mm
- Piston Size: Standard Size E
- Ring Material: Nitride Coated Steel
- Skirt Coating: Moly Coated
- Type: Top End
Important to know
Ensure proper fitment and follow manufacturer's instructions during installation. Professional installation is recommended for optimal performance.
- Brand
- VERTEX
- Vendor part number
- VTK23120E
- Product name
- Piston Kit
- Bore size
- 54,00 mm
- Displacement
- 125 cc
- Piston material
- Aluminum Alloy, Forged
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size E
- Piston diameter
- 53,97 mm
- Skirt coating
- Moly Coated
- Engine type
- 2-Stroke
- Type
- Top End
- Units
- Kit
