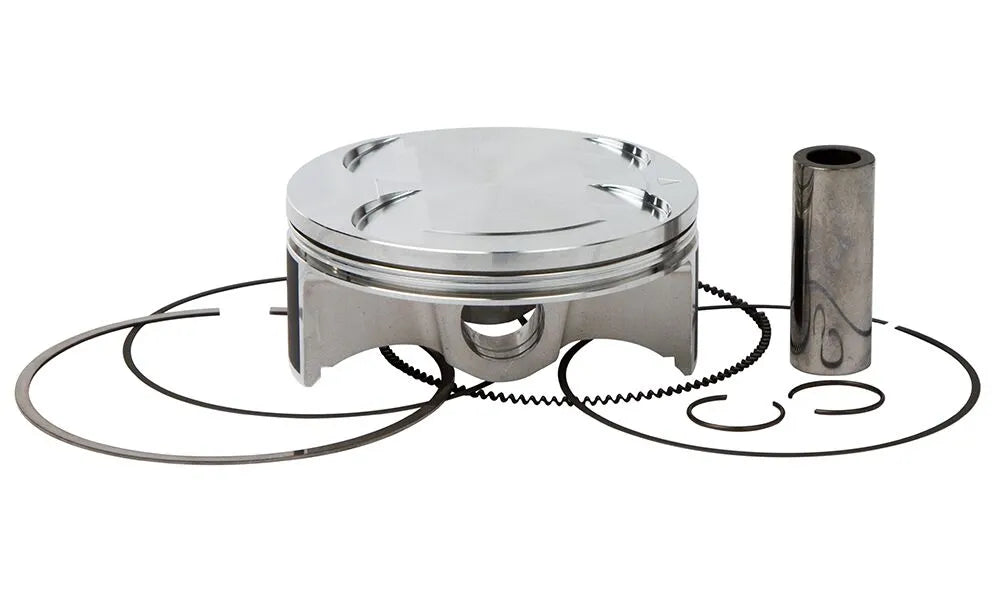

Vertex Forged Replica Piston Kit - 96mm Bore - 450cc - Size C - 23242C
Product info
- Item number
- 09102403
- Manufacturer number
- 23242C
- Position
Upgrade your four-stroke engine with the Vertex Forged Replica Piston Kit. This kit provides superior strength and durability, ensuring long-lasting performance and reliability. Ideal for enthusiasts and professionals seeking to enhance their engine's power and lifespan.
Description
The Vertex Forged Replica Piston Kit is engineered as an OE replacement, delivering exceptional performance and reliability. Forged from 2618 aluminum alloy, these pistons offer superior strength and durability compared to cast pistons. Each piston undergoes a T-5 heat treatment, hardening and tempering cycle, maximizing its structural integrity. The piston skirts are coated with a high-tech Molybdenum Disulphite coating, which promotes faster break-in times and extends piston life. This kit is designed for 450cc 4-stroke engines with a 96.00 mm bore size and 12.0:1 compression ratio. The Vertex piston kit ensures optimal performance and longevity, making it a top choice for demanding applications.
Features & highlights
- Forged from high-strength 2618 aluminum alloy for enhanced durability.
- T-5 heat treatment provides exceptional hardness and wear resistance.
- Molybdenum Disulphite coated skirts reduce friction and improve break-in.
- Designed as an OE replacement for easy installation and perfect fit.
- Includes piston, rings, wrist pin, and circlips for a complete rebuild.
- Nitride coated steel rings provide excellent sealing and wear resistance.
Technical specifications
- Brand: Vertex
- Product Name: Piston Kit
- Engine Type: 4-Stroke
- Displacement: 450cc
- Bore Size: 96.00 mm
- Piston Diameter: 95.98 mm
- Piston Size: Standard Size C
- Compression Ratio: 12.0:1
- Piston Material: Forged Aluminum Alloy
- Skirt Coating: Moly Coated
- Ring Material: Nitride Coated Steel
Important to know
- This kit includes the piston, rings, wrist pin, and circlips.
- Replacement two-stroke piston rings are sold individually; four-stroke piston rings are sold as a set.
- Brand
- VERTEX
- Vendor part number
- 23242C
- Product name
- Piston Kit
- Bore size
- 96,00 mm
- Compression ratio
- 12,0:1
- Displacement
- 450 cc
- Piston material
- Aluminum Alloy, Forged
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size C
- Piston diameter
- 95,98 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
