Vertex Forged Replica Piston Kit
Product info
- Item number
- 09106537
- Manufacturer number
- 24575A
- Position
Elevate your motorcycle's performance and reliability with the Vertex Forged Replica Piston Kit. Engineered as a direct OEM replacement, this premium 4-stroke piston kit delivers exceptional durability and consistent power for your 250cc engine, ensuring a precise fit and optimal function.
Description
The Vertex Forged Replica Piston Kit is meticulously crafted to meet or exceed original equipment specifications, providing a robust solution for rebuilding or upgrading your 4-stroke engine. Each piston is forged from high-strength 2618 aluminum, a material renowned for its superior strength and resilience under extreme operating conditions. To further enhance longevity and reduce friction, the piston skirts are treated with an advanced Molybdenum Disulphite coating, facilitating faster break-in and significantly extending piston life. Every Vertex piston undergoes a T-5 hardening and tempering cycle, ensuring maximum heat resistance and structural integrity. With a precise 79.00 mm bore size and a high 13.9:1 compression ratio, this kit is designed to optimize your engine's power output and efficiency. This comprehensive 250cc 4-stroke piston kit includes the piston, high-quality rings, a durable wrist pin, and secure circlips, offering everything needed for a complete and reliable piston replacement.Features & Highlights
- OE-Form Forged Design: Precision-engineered as a "Pro Replica" forged piston, matching original equipment specifications for a perfect fit and dependable performance.
- Superior 2618 Aluminum Construction: Forged from premium 2618 aluminum alloy, ensuring exceptional strength and durability to withstand the rigorous demands of high-performance 4-stroke engines.
- Advanced Molybdenum Disulphite Skirt Coating: High-tech Moly coating on the piston skirt reduces friction, promotes faster break-in, and significantly increases overall piston lifespan.
- Enhanced Heat Treatment: Each piston undergoes a T-5 hardening and tempering cycle, providing superior heat resistance and structural integrity for sustained reliability.

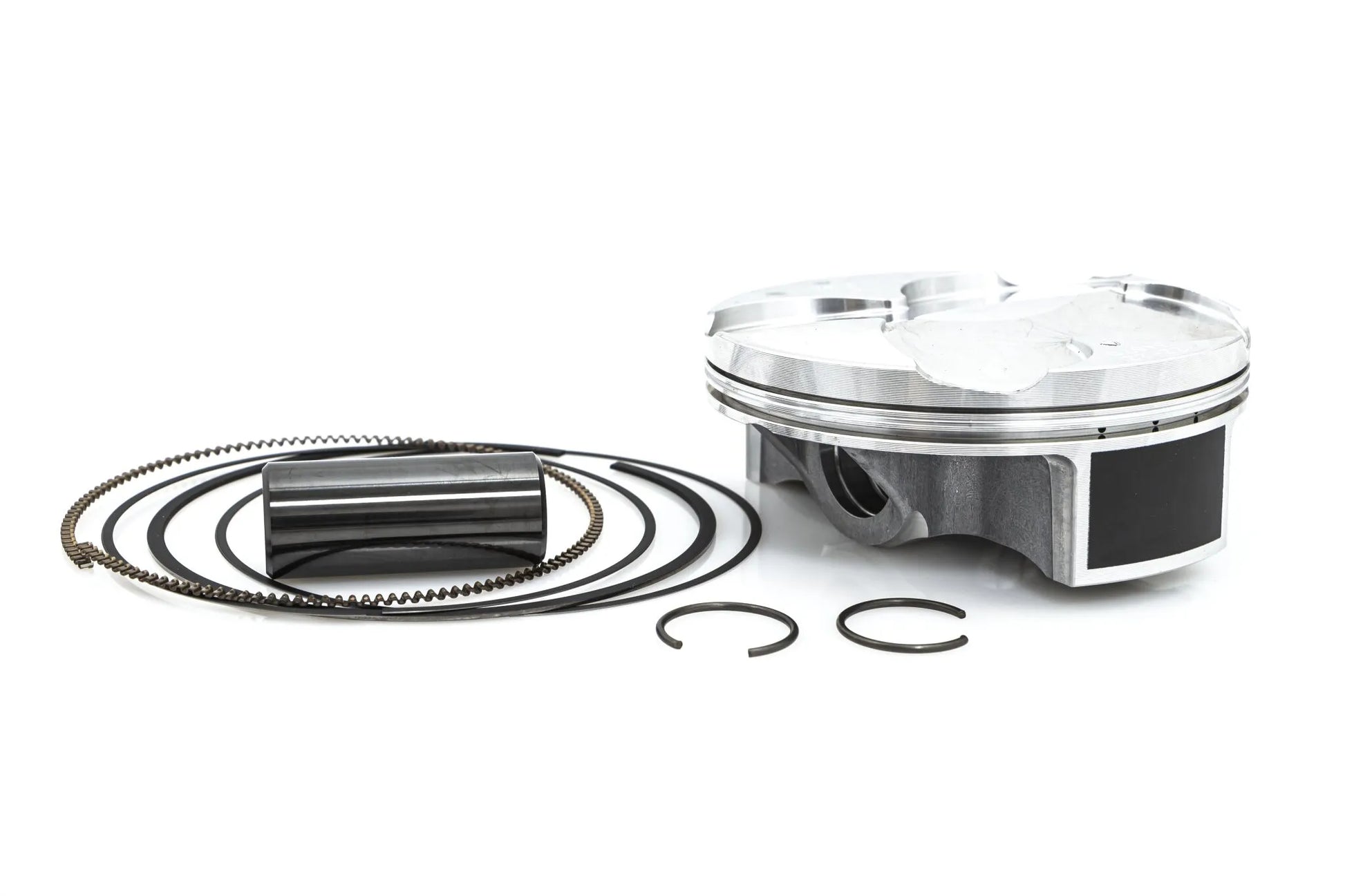

- Complete Replacement Kit: Includes the forged piston, high-quality rings (four-stroke rings sold as a set), wrist pin, and circlips for a comprehensive and hassle-free installation.
- Optimized Performance: Designed for 250cc 4-stroke engines with a 79.00 mm bore and a high 13.9:1 compression ratio, delivering strong, consistent power.
Technical Specifications
- Brand: Vertex
- Product Name: Piston Kit
- Style: Forged Replica
- Engine Type: 4-Stroke
- Displacement: 250 cc
- Bore Size: 79.00 mm
- Piston Diameter: 78.96 mm
- Piston Size: Standard Size A
- Compression Ratio: 13.9:1
- Piston Material: Forged Aluminum Alloy
- Skirt Coating: Moly Coated
- Ring Material: Nitride Coated Steel
- Units: Kit
- Vendor Part Number: 24575A
- Vendor part number
- 24575A
- Product name
- Piston Kit
- Style
- Forged Replica
- Bore size
- 79,00 mm
- Compression ratio
- 13,9:1
- Displacement
- 250 cc
- Piston material
- Aluminum Alloy, Forged
- Width
- 106 mm
- Height
- 64 mm
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size A
- Length
- 111 mm
- Piston diameter
- 78,96 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
