Vertex Top End Piston Kit - 78mm Bore - 250cc - Size C - VTKTC24097C
Product info
- Item number
- 09104481
- Manufacturer number
- VTKTC24097C
- Position
Upgrade your 250cc 4-stroke engine with the Vertex Forged Replica Piston Kit. This kit delivers OE-level performance and reliability thanks to its high-quality construction and meticulous design. Experience improved power, durability, and longevity with this comprehensive piston kit.
Description
The Vertex Forged Replica Piston Kit features a forged piston crafted from 2618 aluminum alloy, ensuring superior strength and durability under extreme conditions. Each piston undergoes a T-5 hardening and tempering cycle for enhanced wear resistance. The piston skirt is coated with a Molybdenum Disulphite coating, reducing friction for faster break-in and extended piston life. Designed as an OE replacement, this kit guarantees precise fitment and optimal performance. The nitride-coated steel rings ensure a proper seal and efficient combustion. This Vertex piston kit delivers the performance and reliability you demand for your 4-stroke engine.
Features & highlights
- Forged from high-strength 2618 aluminum alloy for superior durability.
- T-5 heat treatment enhances wear resistance and extends piston life.
- Molybdenum Disulphite coated skirt reduces friction for faster break-in.
- Designed as a direct OE replacement for precise fit and easy installation.
- Nitride-coated steel rings provide excellent sealing and performance.
- Complete kit includes all necessary components for a top-end rebuild.
Technical specifications
- Brand: Vertex
- Piston Material: Forged Aluminum Alloy
- Displacement: 250cc
- Engine Type: 4-Stroke
- Bore Size: 78.00 mm
- Piston Diameter: 77.98 mm
- Piston Size: Standard Size C
- Compression Ratio: 14.4:1
- Ring Material: Nitride Coated, Steel
- Skirt Coating: Moly Coated
Important to know

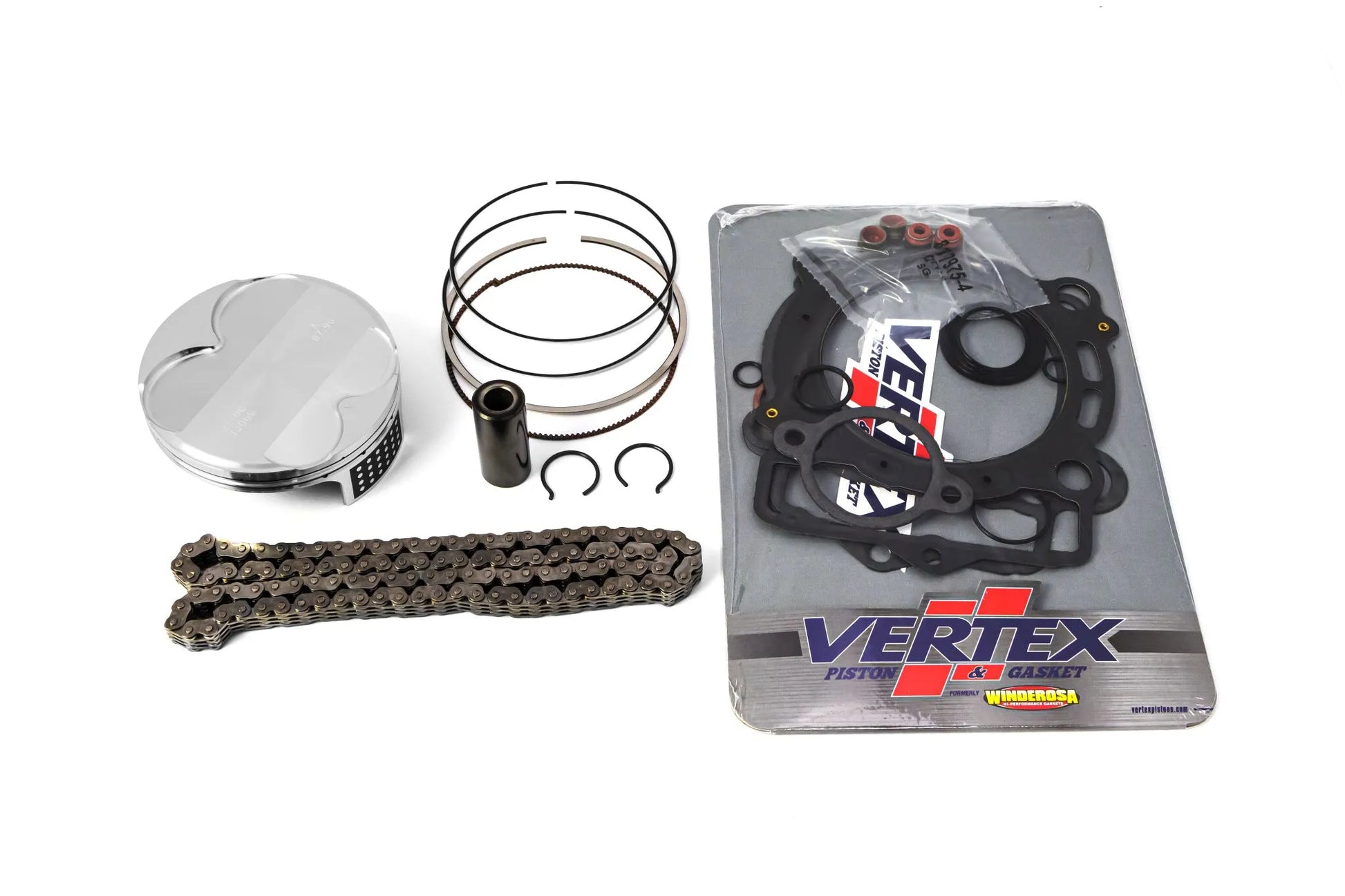

This kit includes the piston, rings, wrist pin, circlips, and top-end gaskets necessary for installation. Please ensure proper installation procedures are followed. Two-stroke piston rings are sold individually; four-stroke piston rings are sold as a set.
- Brand
- VERTEX
- Vendor part number
- VTKTC24097C
- Product name
- Piston Kit
- Bore size
- 78,00 mm
- Compression ratio
- 14,4:1
- Displacement
- 250 cc
- Piston material
- Aluminum Alloy, Forged
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size C
- Piston diameter
- 77,98 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
