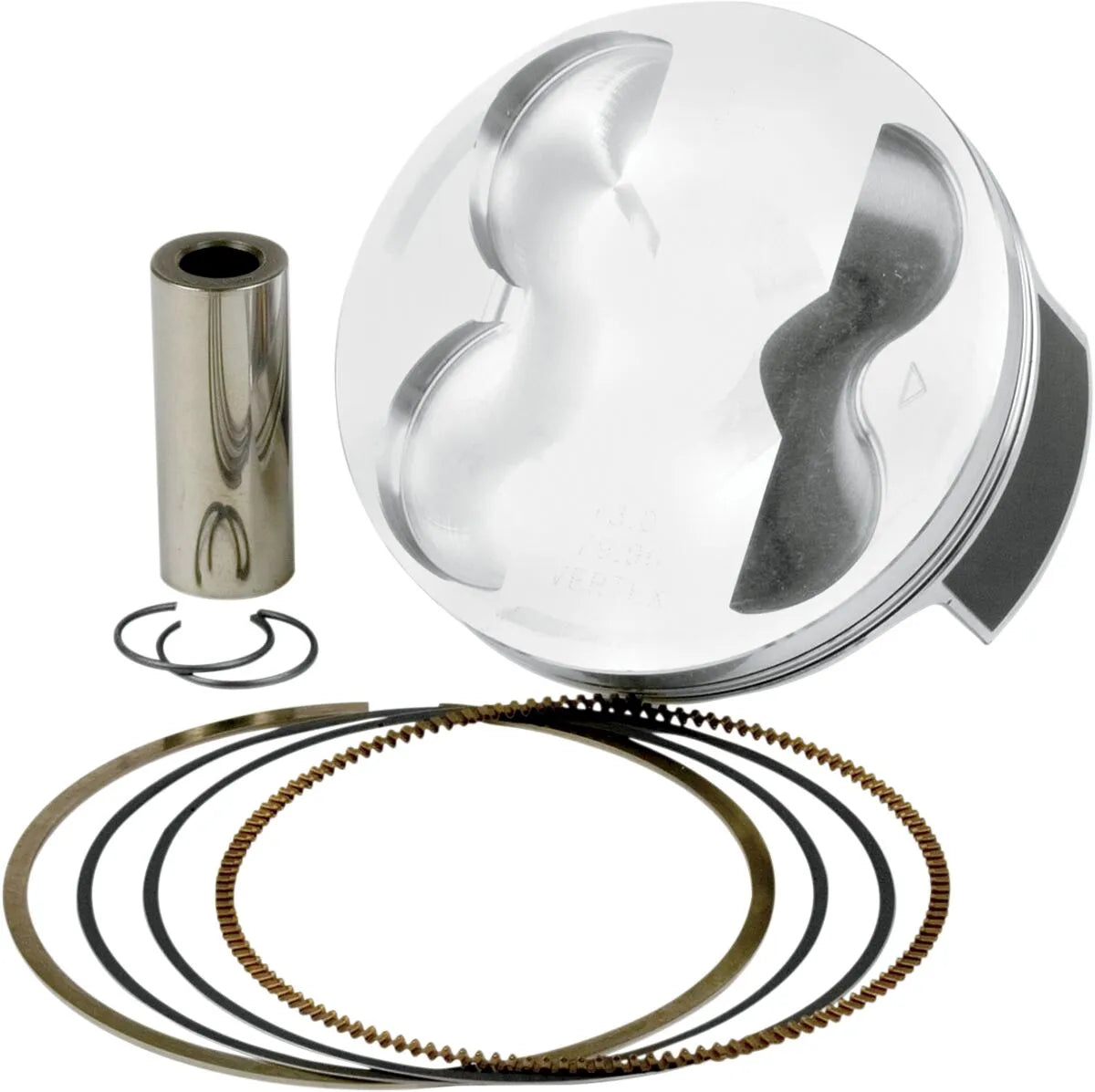

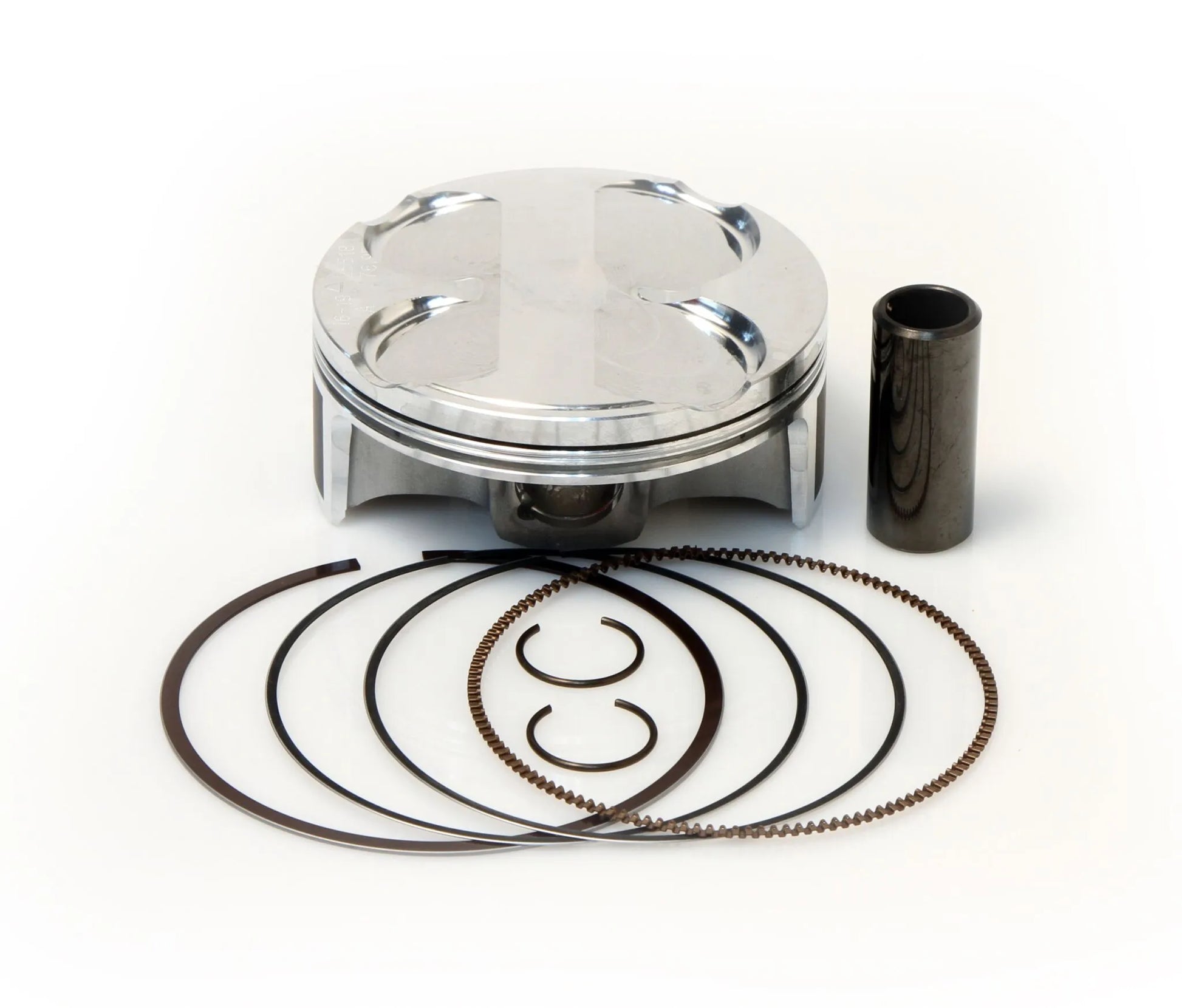

Vertex Forged Replica Piston Kit - 77mm Bore - 250cc - Size B - 24109B
Product info
- Item number
- 09104080
- Manufacturer number
- 24109B
- Position
Upgrade your engine's performance and reliability with the Vertex Forged Replica Piston Kit. This kit delivers exceptional durability and improved engine performance. The Vertex piston kit ensures a precise fit and optimal function for your 250cc 4-stroke engine.
Description
The Vertex Forged Replica Piston Kit offers a cost-effective solution for engine rebuilds without sacrificing quality. Forged from high-strength 2618 aluminum alloy, this piston offers superior strength and durability compared to cast pistons. The piston undergoes a T-5 heat treatment, hardening and tempering cycle to further enhance its structural integrity. A Molybdenum Disulphite coating on the piston skirt reduces friction, promoting faster break-in and extending piston life. This kit includes everything needed for a complete piston replacement, including the piston, rings, wrist pin, and circlips. Designed as an OE replacement, it guarantees compatibility and straightforward installation. Suitable for 250cc 4-stroke engines with a 77.00 mm bore and a compression ratio of 13.5:1.Features & highlights
- Forged from high-strength 2618 aluminum alloy for superior durability.
- T-5 heat treatment ensures optimal hardness and wear resistance.
- Molybdenum Disulphite coated skirt reduces friction and extends lifespan.
- Designed as a direct OE replacement for easy installation.
- Includes piston, rings, wrist pin, and circlips for a complete rebuild.
- Optimized for 250cc 4-stroke engines.
- Nitride coated steel rings provide excellent sealing and wear resistance.
Technical specifications
- Brand: Vertex
- Piston Material: Forged Aluminum Alloy
- Displacement: 250 cc
- Engine Type: 4-Stroke
- Bore Size: 77.00 mm
- Piston Diameter: 76.96 mm
- Piston Size: Standard Size B
- Compression Ratio: 13.5:1
- Ring Material: Nitride Coated Steel
- Skirt Coating: Moly Coated
Important to know
- Ensure proper piston-to-cylinder clearance during installation.
- Always consult your engine's service manual for specific torque specifications.
- Brand
- VERTEX
- Vendor part number
- 24109B
- Product name
- Piston Kit
- Bore size
- 77,00 mm
- Compression ratio
- 13,5:1
- Displacement
- 250 cc
- Piston material
- Aluminum Alloy, Forged
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size B
- Piston diameter
- 76,96 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
