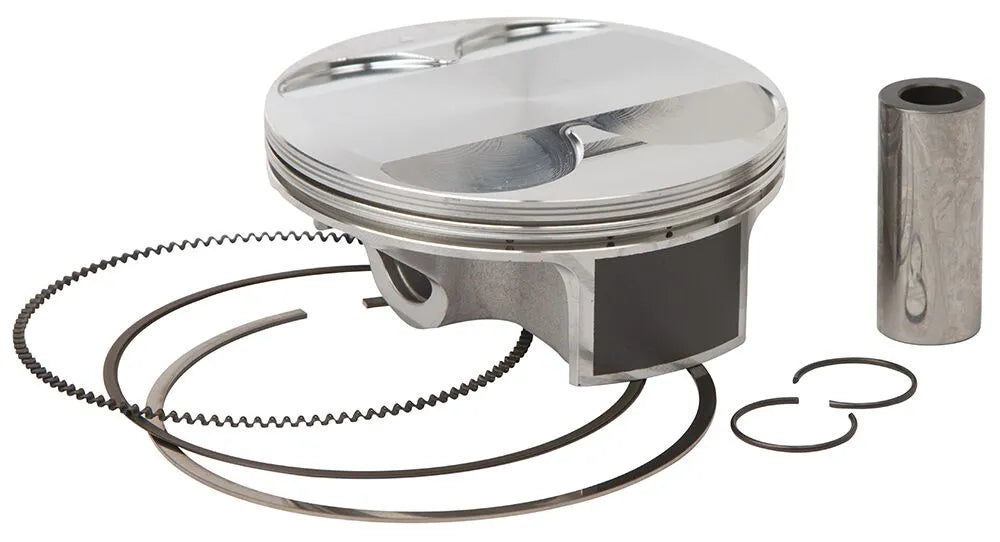

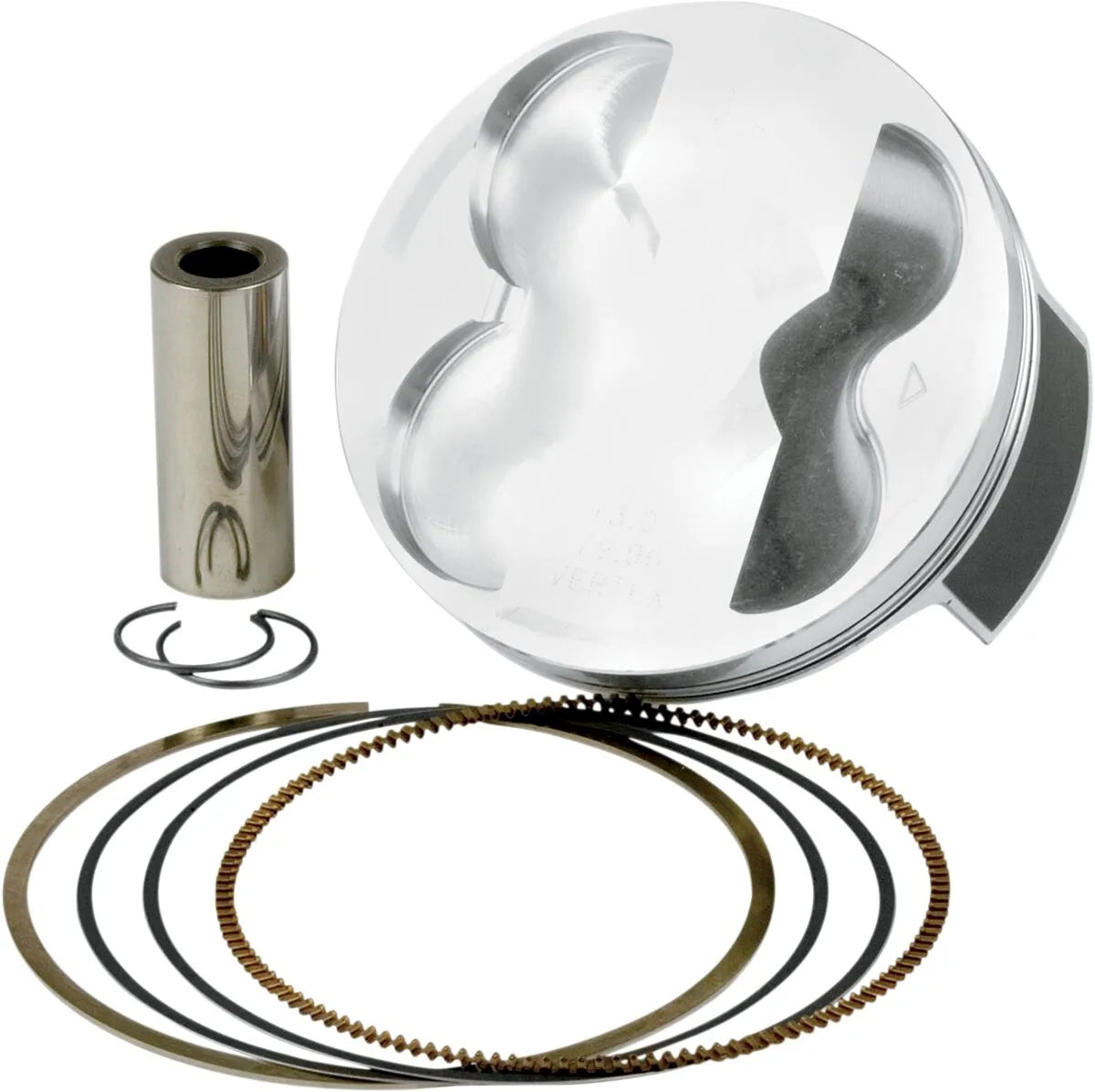

Vertex Forged Replica Piston Kit - 96mm Bore - 450cc - Size B - 23857B
Product info
- Item number
- 09103215
- Manufacturer number
- 23857B
- Position
Upgrade your engine's performance and reliability with the Vertex Forged Replica Piston Kit. This kit provides a durable and high-performing piston solution, perfect for enthusiasts and professionals seeking optimal engine performance. Get your Vertex piston kit today!
Description
The Vertex Forged Replica Piston Kit is engineered to deliver exceptional performance and longevity. Forged from high-strength 2618 aluminum, these pistons offer superior durability compared to cast pistons, making them ideal for demanding applications. Each piston undergoes a T-5 heat treatment, ensuring optimal hardness and dimensional stability. The piston skirts are coated with a Molybdenum Disulphite coating, which reduces friction, promotes faster break-in times, and extends piston life. Designed as OE replacements, these forged replica pistons guarantee a precise fit and reliable performance in 450cc 4-stroke engines. This kit ensures your engine operates at its peak potential, providing enhanced power and efficiency.Features & highlights
- Forged from 2618 aluminum for superior strength and durability.
- T-5 heat treatment enhances hardness and dimensional stability.
- Molybdenum Disulphite coated skirts reduce friction and improve break-in.
- Designed as OE replacements for a precise fit.
- Includes piston, rings, wrist pin, and circlips for a complete installation.
- Nitride coated steel rings for optimal sealing and wear resistance.
Technical specifications
- Brand: Vertex
- Part Number: 09103215
- Engine Type: 4-Stroke
- Displacement: 450cc
- Bore Size: 96.00 mm
- Piston Diameter: 95.97 mm
- Piston Size: Standard Size B
- Compression Ratio: 12.5:1
- Piston Material: Forged Aluminum Alloy
- Ring Material: Nitride Coated Steel
- Skirt Coating: Moly Coated
- Units: Kit
Important to know
- Two-stroke piston rings are sold individually.
- Four-stroke piston rings are sold as a set.
- Brand
- VERTEX
- Vendor part number
- 23857B
- Product name
- Piston Kit
- Bore size
- 96,00 mm
- Compression ratio
- 12,5:1
- Displacement
- 450 cc
- Piston material
- Aluminum Alloy, Forged
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size B
- Piston diameter
- 95,97 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
