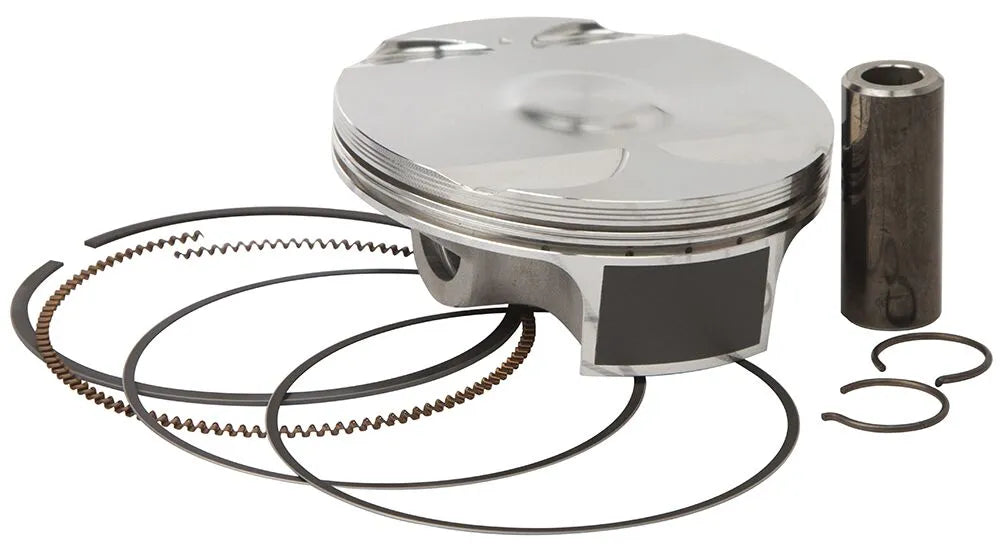

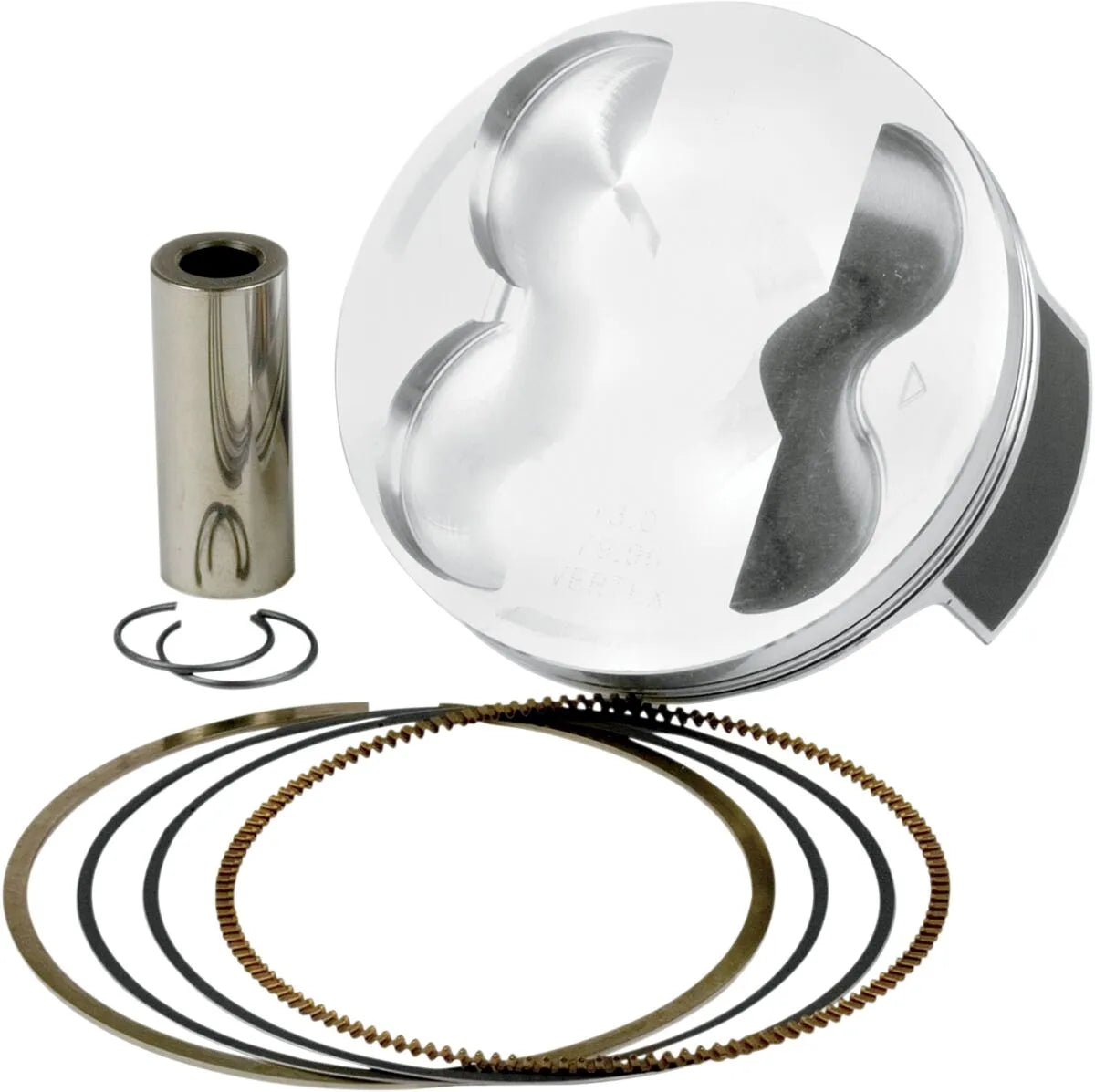

Vertex Forged Replica Piston Kit - 95mm Bore - 450cc - Size B - 23859B
Product info
- Item number
- 09103223
- Manufacturer number
- 23859B
- Position
The Vertex Forged Replica Piston Kit is engineered to provide exceptional performance and durability for your 4-stroke engine. Crafted as an OE replacement, this kit ensures a precise fit and reliable operation, making it an ideal choice for enthusiasts and professionals alike.
Description
This Vertex piston kit features a forged piston made from 2618 aluminum alloy, offering superior strength and resistance to wear. The piston undergoes a T-5 hardening and tempering cycle, enhancing its structural integrity. Its skirt is coated with a Molybdenum Disulphite coating, which promotes faster break-in and extends the piston's lifespan. Designed as a direct OEM replacement, the Vertex Forged Replica Piston Kit guarantees seamless integration and maintains the original performance characteristics of your engine. Suitable for 450cc 4-stroke engines with a compression ratio of 11.8:1, it is the perfect choice when rebuilding your top end. This piston kit includes everything needed for a complete installation.
Features & highlights
- Forged from high-strength 2618 aluminum alloy for superior durability.
- T-5 heat treatment ensures exceptional structural integrity.
- Molybdenum Disulphite coated skirt reduces friction and extends piston life.
- Designed as a direct OE replacement for easy installation.
- Kit includes piston, rings, wrist pin, and circlips for a complete solution.
- Nitride coated steel rings provide optimal sealing and performance.
- Optimized for 450cc 4-stroke engines.
Technical specifications
- Brand: Vertex
- Part Number: 23859B
- Bore Size: 95.00 mm
- Compression Ratio: 11.8:1
- Displacement: 450 cc
- Engine Type: 4-Stroke
- Piston Diameter: 94.96 mm
- Piston Material: Forged Aluminum Alloy
- Piston Size: Standard Size B
- Ring Material: Nitride Coated Steel
- Skirt Coating: Moly Coated
Important to know
This kit includes the piston, rings, wrist pin, and circlips. Two-stroke piston rings are sold individually; four-stroke piston rings are sold as a set.
- Brand
- VERTEX
- Vendor part number
- 23859B
- Product name
- Piston Kit
- Bore size
- 95,00 mm
- Compression ratio
- 11,8:1
- Displacement
- 450 cc
- Piston material
- Aluminum Alloy, Forged
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size B
- Piston diameter
- 94,96 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
