Vertex Forged Replica Piston Kit - 95mm Bore - 500cc - Size B - 23762B
Product info
- Item number
- 09102750
- Manufacturer number
- 23762B
- Position
Upgrade your engine's performance with the Vertex Forged Replica Piston Kit. This kit provides superior strength and durability, ensuring your engine operates at its best. Engineered for optimal performance and longevity, this piston kit is a must-have for any serious rider or mechanic.
Description
The Vertex Forged Replica Piston Kit is designed as an OE replacement, delivering exceptional performance and reliability. Forged from 2618 aluminum, the piston boasts superior strength and durability. Each piston undergoes a T-5 hardening and tempering cycle, further enhancing its structural integrity. The piston skirt features a high-tech Molybdenum Disulphide coating, reducing friction for faster break-in and extended piston life. Ideal for 500cc 4-stroke engines, this kit ensures a precise fit and optimal compression ratio of 11.8:1.
Features & highlights
- Forged from high-strength 2618 aluminum alloy for superior durability.
- Molybdenum Disulphide coated skirt reduces friction and extends piston life.
- Heat-treated with a T-5 hardening and tempering cycle for increased strength.
- Designed as a direct OE replacement for easy installation.

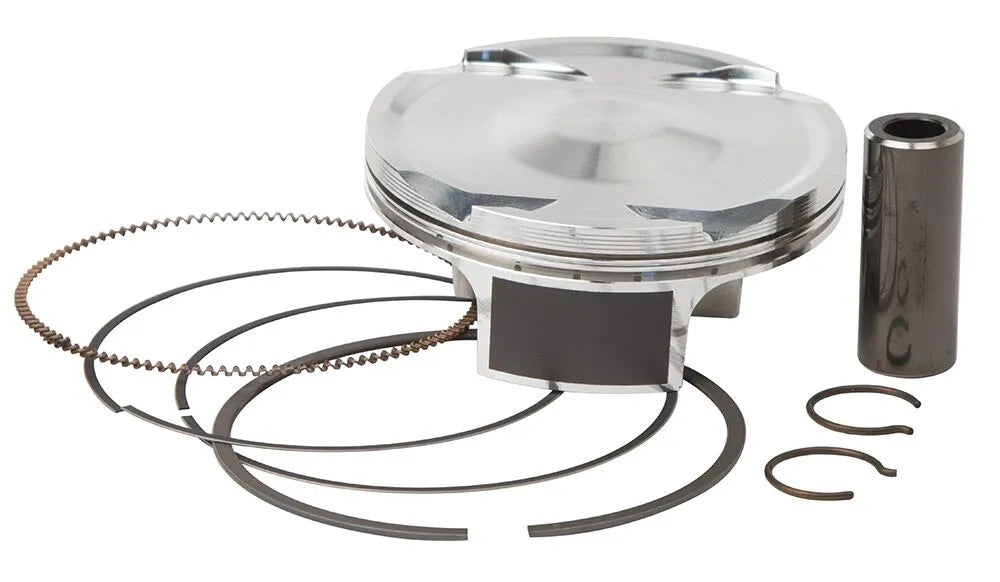

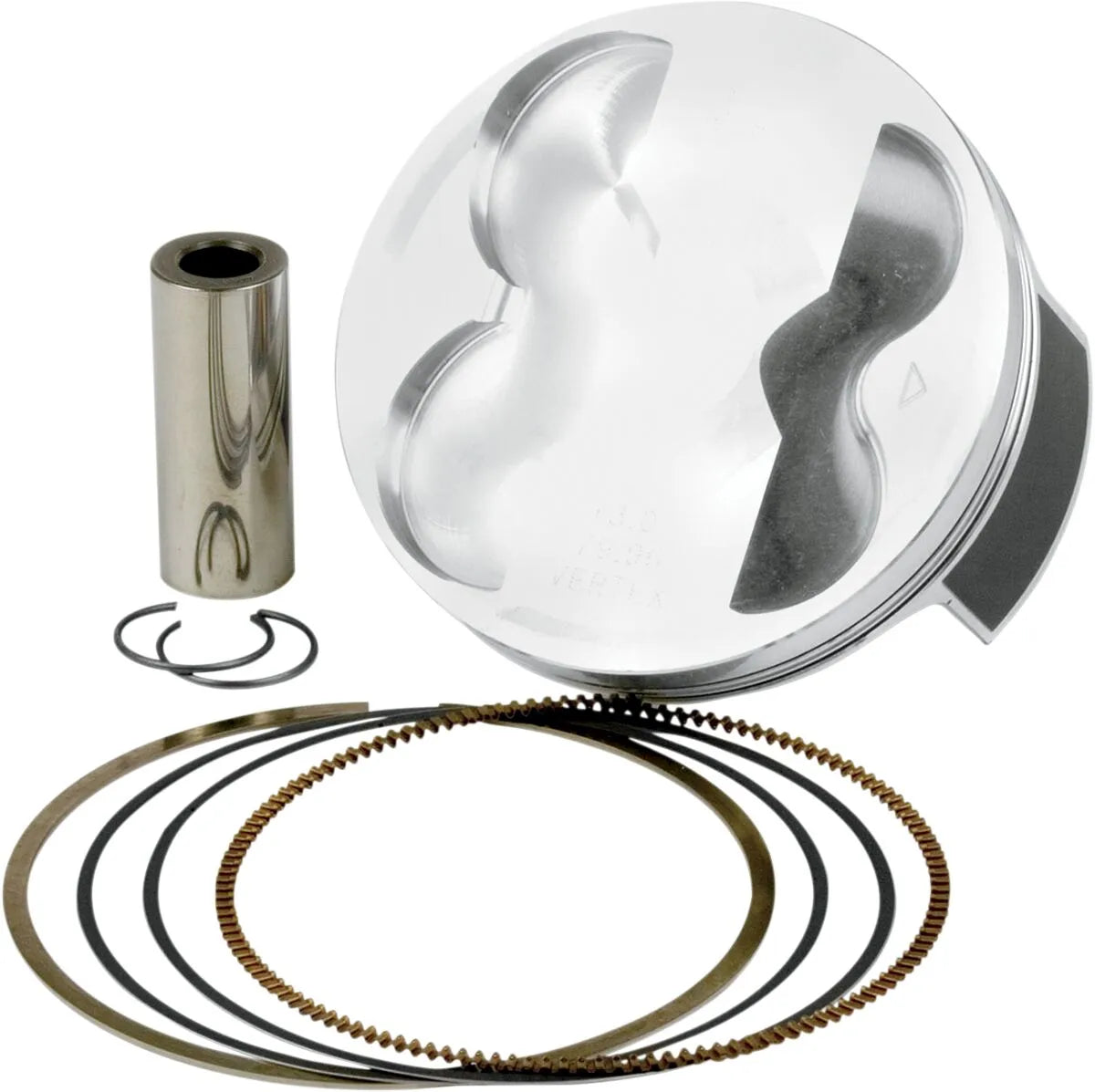

- Kit includes everything needed for installation: piston, rings, wrist pin, and circlips.
- Optimized for 500cc 4-stroke engines to ensure peak performance.
Technical specifications
- Brand: VERTEX
- Product Name: Piston Kit
- Engine Type: 4-Stroke
- Displacement: 500 cc
- Bore Size: 95.00 mm
- Piston Diameter: 94.95 mm
- Piston Size: Standard Size B
- Compression Ratio: 11.8:1
- Piston Material: Forged Aluminum Alloy (2618)
- Ring Material: Nitride Coated Steel
- Skirt Coating: Moly Coated
Important to know
This kit includes the piston, rings, wrist pin, and circlips. Two-stroke piston rings are sold individually, while four-stroke piston rings are sold as a set.
- Brand
- VERTEX
- Vendor part number
- 23762B
- Product name
- Piston Kit
- Bore size
- 95,00 mm
- Compression ratio
- 11,8:1
- Displacement
- 500 cc
- Piston material
- Aluminum Alloy, Forged
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size B
- Piston diameter
- 94,95 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
