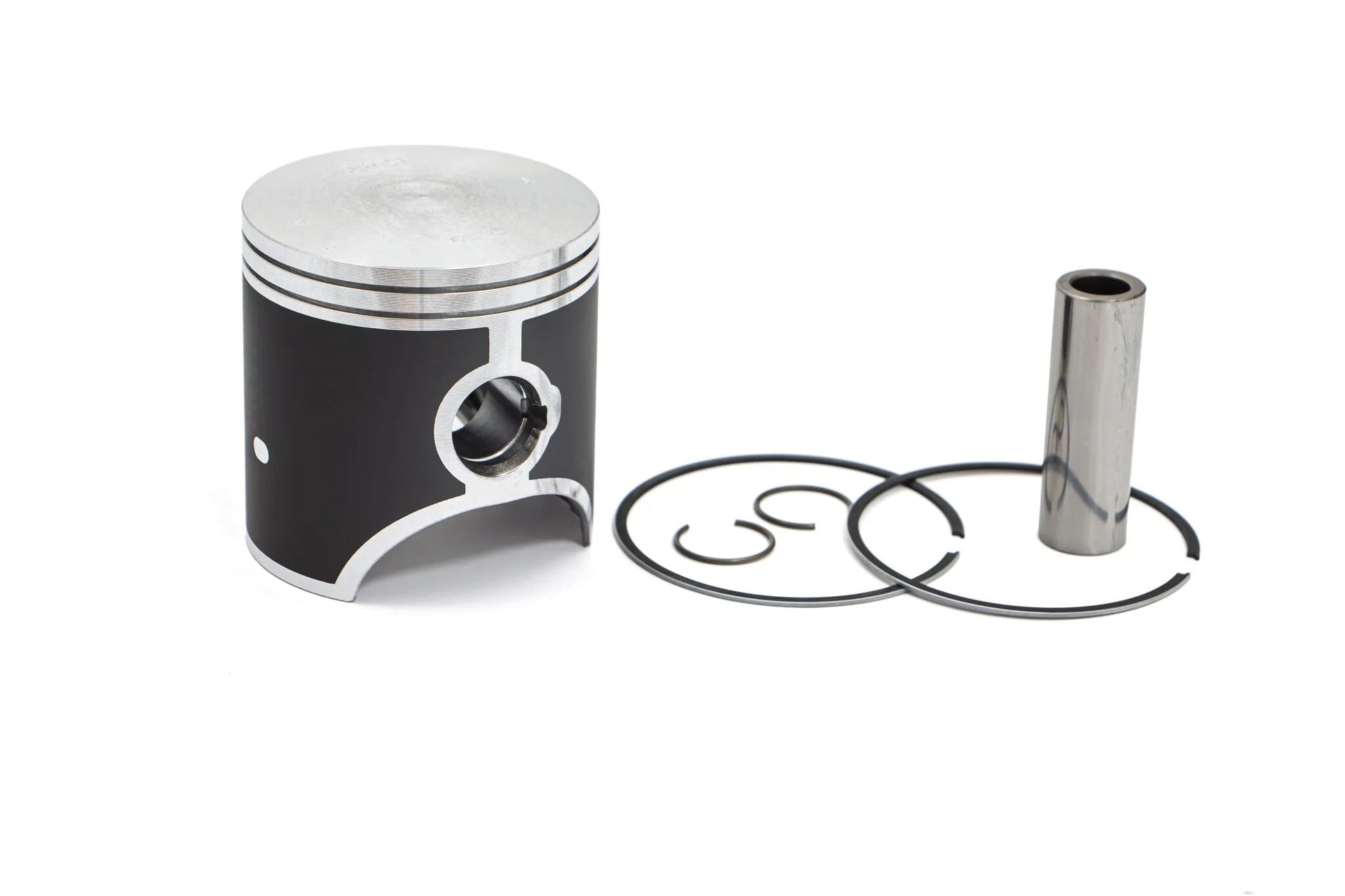

Vertex Forged Replica Piston Kit 62.00mm 2-Stroke
Product info
- Item number
- 09106721
- Manufacturer number
- 24521A
- Position
Elevate your engine's performance and durability with the Vertex Forged Replica Piston Kit 62.00mm 2-Stroke. Engineered for superior strength and longevity, this comprehensive kit provides a high-quality, direct OE replacement for your 200cc motorcycle engine.
Description
Designed as a Pro Replica, this Vertex piston kit offers an exceptional upgrade or replacement for your 2-stroke 200cc engine. Each piston is meticulously forged from premium 2618 aluminum alloy, renowned for its superior strength and resilience under extreme operating conditions. To further enhance durability and wear resistance, every piston undergoes a precise T-5 hardening and tempering heat treatment cycle. The 62.00mm bore piston features a high-tech Molybdenum Disulphite (Moly) coating on its skirt, significantly reducing friction during the critical break-in period and extending the overall life of the piston. This standard size A piston is crafted to OE specifications, ensuring seamless compatibility and reliable performance as an OEM replacement. The kit comes complete with the piston, nitride coated steel rings, wrist pin, and circlips, providing all necessary components for a straightforward installation and robust engine rebuild.
Features & Highlights
- Unmatched Strength & Durability: Forged from high-grade 2618 aluminum alloy and T-5 heat treated for exceptional resilience and prolonged engine life under demanding conditions.
- Reduced Friction & Extended Life: High-tech Molybdenum Disulphite (Moly) skirt coating ensures faster, smoother break-in and significantly increases piston longevity.
- Optimized OEM Performance: Designed as an OE replica, this piston maintains original specifications for reliable, consistent power delivery in your 2-stroke engine.
- Complete & Convenient Kit: Includes everything needed for installation: the forged piston, durable nitride coated steel rings, wrist pin, and circlips.
- Precise Fitment: Engineered for 200cc 2-stroke engines with a 62.00mm bore, ensuring a perfect standard size A fit.
Technical Specifications
- Product Name: Piston Kit
- Style: Forged Replica
- Engine Type: 2-Stroke
- Displacement: 200 cc
- Bore Size: 62.00 mm
- Piston Diameter: 61.95 mm
- Piston Size: Standard Size A
- Piston Material: Forged Aluminum Alloy (2618)
- Skirt Coating: Moly Coated
- Ring Material: Nitride Coated Steel
- Compression Ratio: Standard
- Units: Kit
- Vendor part number
- 24521A
- Product name
- Piston Kit
- Style
- Forged Replica
- Bore size
- 62,00 mm
- Compression ratio
- Standard
- Displacement
- 200 cc
- Piston material
- Aluminum Alloy, Forged
- Width
- 81 mm
- Height
- 81 mm
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size A
- Length
- 105 mm
- Piston diameter
- 61,95 mm
- Skirt coating
- Moly Coated
- Engine type
- 2-Stroke
- Units
- Kit
