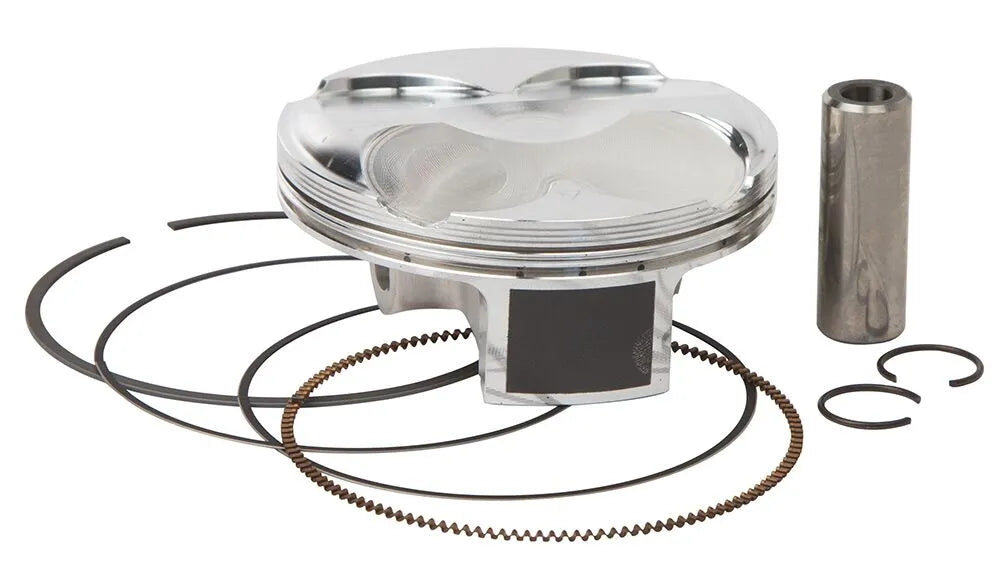

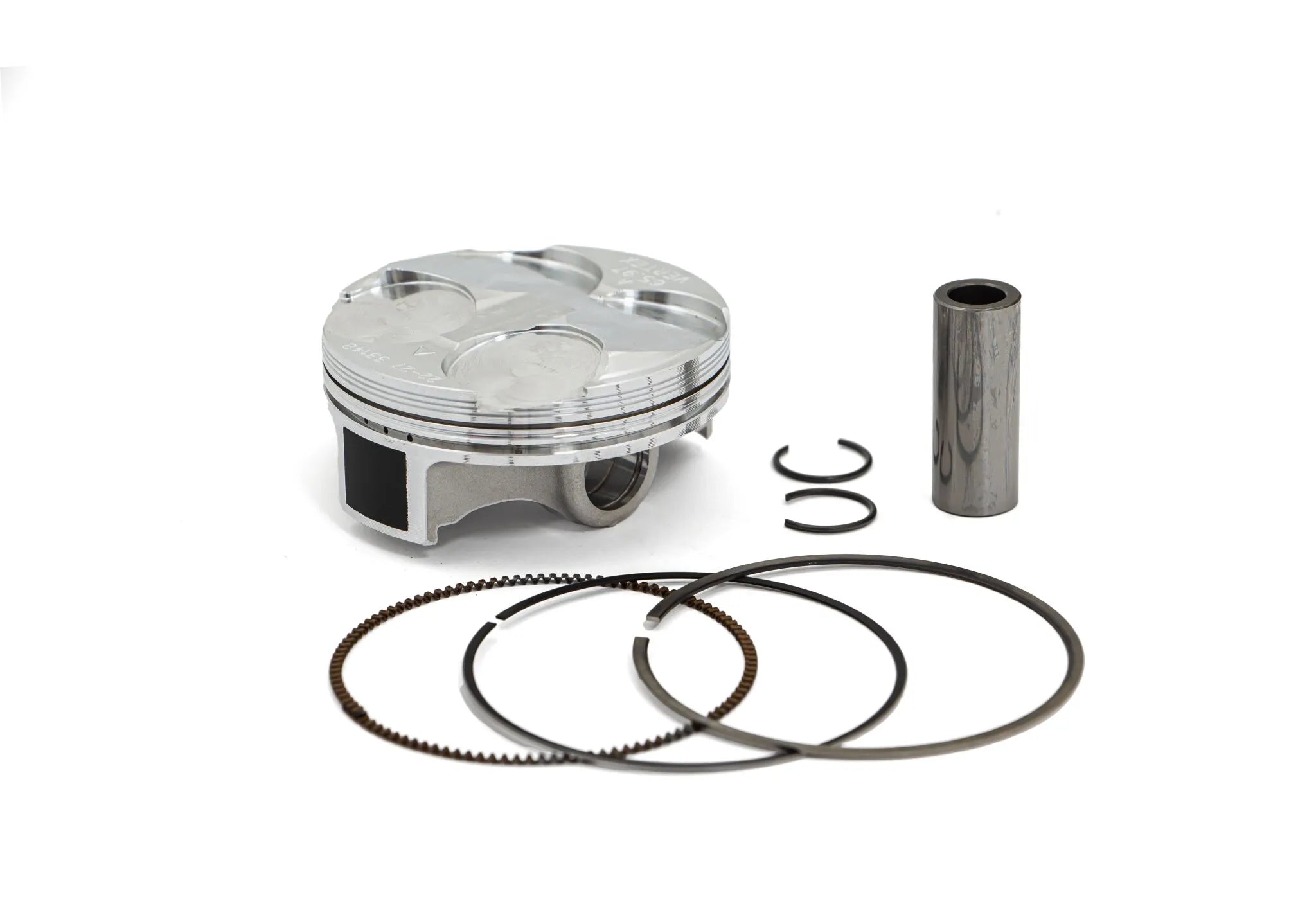

Vertex Pro HC Forged High Compression Piston Kit
Product info
- Item number
- 09106736
- Manufacturer number
- 24579C
- Position
Upgrade your motorcycle's performance with the Vertex Pro HC Forged High Compression Piston Kit. Engineered for enthusiasts seeking a significant boost in power and torque, this kit delivers race-proven durability and precision for your 4-stroke engine.
Description
The Vertex Pro HC Forged High Compression Piston Kit is meticulously developed with advanced Vertex technology to redefine your engine's capabilities. Forged from robust 2618 aluminum alloy, this piston ensures superior strength and resilience under the most demanding conditions. Each piston undergoes a rigorous T-5 hardening and tempering cycle, enhancing its structural integrity and longevity. With a high 14.4:1 compression ratio, specifically designed for 250cc 4-stroke engines with a 79.00 mm bore (78.98 mm piston diameter), you'll experience improved power and torque across the entire RPM range. The piston skirts feature a high-tech Molybdenum Disulphite coating, promoting faster break-in and significantly extending piston life. This complete motorcycle piston kit provides everything you need for a seamless installation, including the piston, nitride coated steel rings, wrist pin, and circlips, making it an ideal choice for a performance-focused engine upgrade.
Features & Highlights
- Unleashed Performance: Achieve a significant boost in power and torque across the entire RPM range thanks to the aggressive 14.4:1 high compression ratio, ideal for a 250cc 4-stroke engine.
- Superior Durability: Forged from premium 2618 aluminum alloy and subjected to a T-5 heat treatment, ensuring exceptional strength and extended lifespan under extreme conditions.
- Optimized Break-in & Longevity: High-tech Molybdenum Disulphite coated piston skirts reduce friction, accelerate break-in, and enhance overall piston life for sustained performance.
- Precision Engineered: Designed specifically for 250cc 4-stroke engines, with a precise 79.00 mm bore and 78.98 mm piston diameter for an exact fit and optimal performance.
- Complete Installation Kit: Comes as a comprehensive kit including the forged piston, high-quality nitride coated steel rings, wrist pin, and circlips for a straightforward upgrade.
Technical Specifications
- Product Name: Piston Kit
- Style: Forged High Compression
- Engine Type: 4-Stroke
- Displacement: 250 cc
- Bore Size: 79.00 mm
- Piston Diameter: 78.98 mm
- Piston Size: Standard Size C
- Compression Ratio: 14.4:1
- Piston Material: Forged 2618 Aluminum Alloy
- Ring Material: Nitride Coated Steel
- Skirt Coating: Moly Coated
- Units: Kit
- Vendor Part Number: 24579C
- Vendor part number
- 24579C
- Product name
- Piston Kit
- Style
- Forged High Compression
- Bore size
- 79,00 mm
- Compression ratio
- 14,4:1
- Displacement
- 250 cc
- Piston material
- Aluminum Alloy, Forged
- Width
- 109 mm
- Height
- 66 mm
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size C
- Length
- 109 mm
- Piston diameter
- 78,98 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
