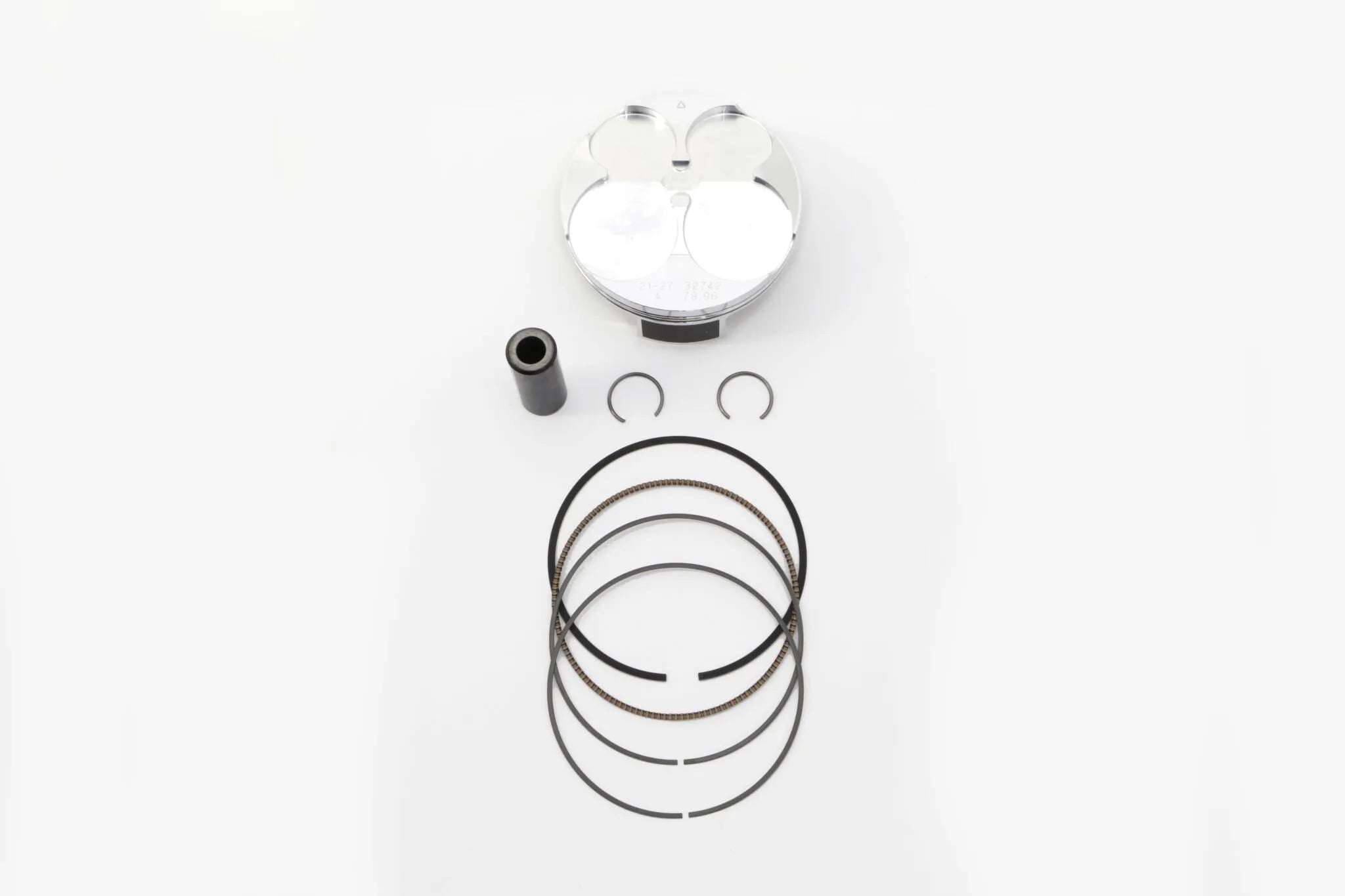

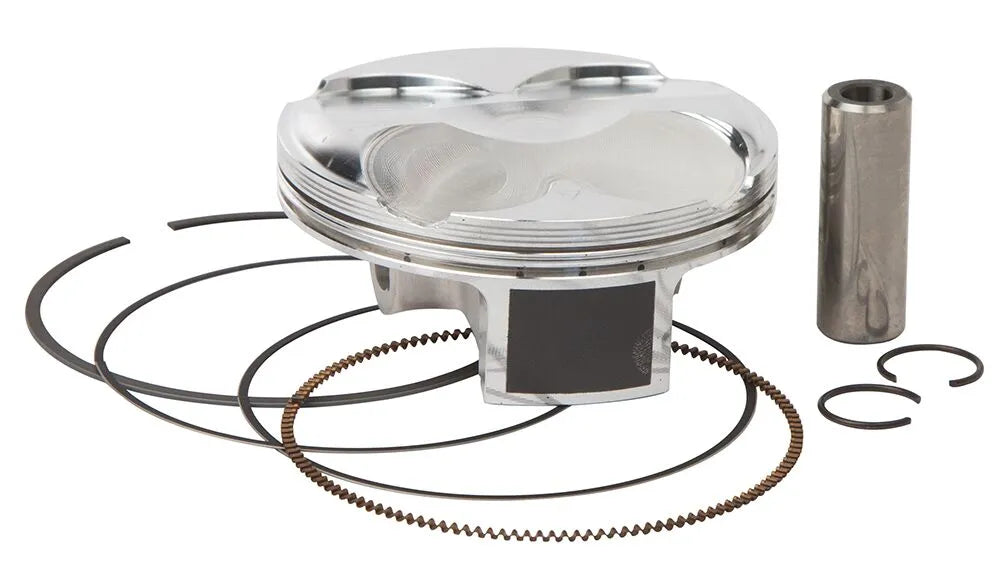

Vertex Pro HC Piston Kit for Forged High Compression
Product info
- Item number
- 09106242
- Manufacturer number
- 24517A
- Position
Unleash the full potential of your 4-stroke 250cc engine with the Vertex Pro HC forged high compression piston kit. Engineered for superior performance and durability, this kit provides a significant power and torque boost across the entire RPM range, making it an essential upgrade for serious riders.
Description
The Vertex Pro HC piston kit is meticulously engineered for 4-stroke 250cc engines, delivering a significant upgrade in power and durability. This high-compression (14.4:1) piston is forged from premium 2618 aluminum alloy, renowned for its superior strength and resilience under extreme conditions. Each piston undergoes a rigorous T-5 hardening and tempering cycle, further enhancing its structural integrity and extending operational life. The skirts are treated with an advanced Molybdenum Disulphite coating, minimizing friction during break-in and throughout the piston's lifespan, contributing to smoother operation and reduced wear. Designed to fit a 79.00 mm bore with a piston diameter of 78.96 mm (Standard Size A), this kit ensures precise fitment and optimal performance. It comes complete with the piston, high-quality rings, wrist pin, and circlips, providing everything needed for a comprehensive engine refresh or performance upgrade.
Features & Highlights
- Unmatched Power Gains: Experience a significant boost in power and torque across the entire RPM range, thanks to the high 14.4:1 compression ratio, specifically designed for 4-stroke 250cc engines.
- Superior Durability: Forged from premium 2618 aluminum alloy, these pistons offer exceptional strength and resilience, capable of withstanding the most demanding riding conditions.
- Enhanced Longevity: Each piston undergoes a T-5 hardening and tempering heat treatment, ensuring maximum structural integrity and extended operational life.
- Reduced Friction & Faster Break-in: The high-tech Molybdenum Disulphite skirt coating minimizes friction, promotes quicker break-in, and significantly increases piston lifespan.
- Complete Kit for Easy Installation: Includes everything you need for a seamless upgrade: the forged piston, high-quality rings (Nitride Coated Steel), wrist pin, and circlips.
Technical Specifications
- Brand: Vertex
- Product Name: Piston Kit
- Style: Forged High Compression
- Engine Type: 4-Stroke
- Displacement: 250 cc
- Compression Ratio: 14.4:1
- Bore Size: 79.00 mm
- Piston Diameter: 78.96 mm
- Piston Size: Standard Size A
- Piston Material: Forged Aluminum Alloy (2618)
- Skirt Coating: Moly Coated (Molybdenum Disulphite)
- Ring Material: Nitride Coated Steel
- Units: Kit
- MPN/SKU: 09106242
- Vendor part number
- 24517A
- Product name
- Piston Kit
- Style
- Forged High Compression
- Bore size
- 79,00 mm
- Compression ratio
- 14,4:1
- Displacement
- 250 cc
- Piston material
- Aluminum Alloy, Forged
- Width
- 110 mm
- Height
- 65 mm
- Ring material
- Nitride Coated, Steel
- Piston size
- Standard Size A
- Length
- 110 mm
- Piston diameter
- 78,96 mm
- Skirt coating
- Moly Coated
- Engine type
- 4-Stroke
- Units
- Kit
